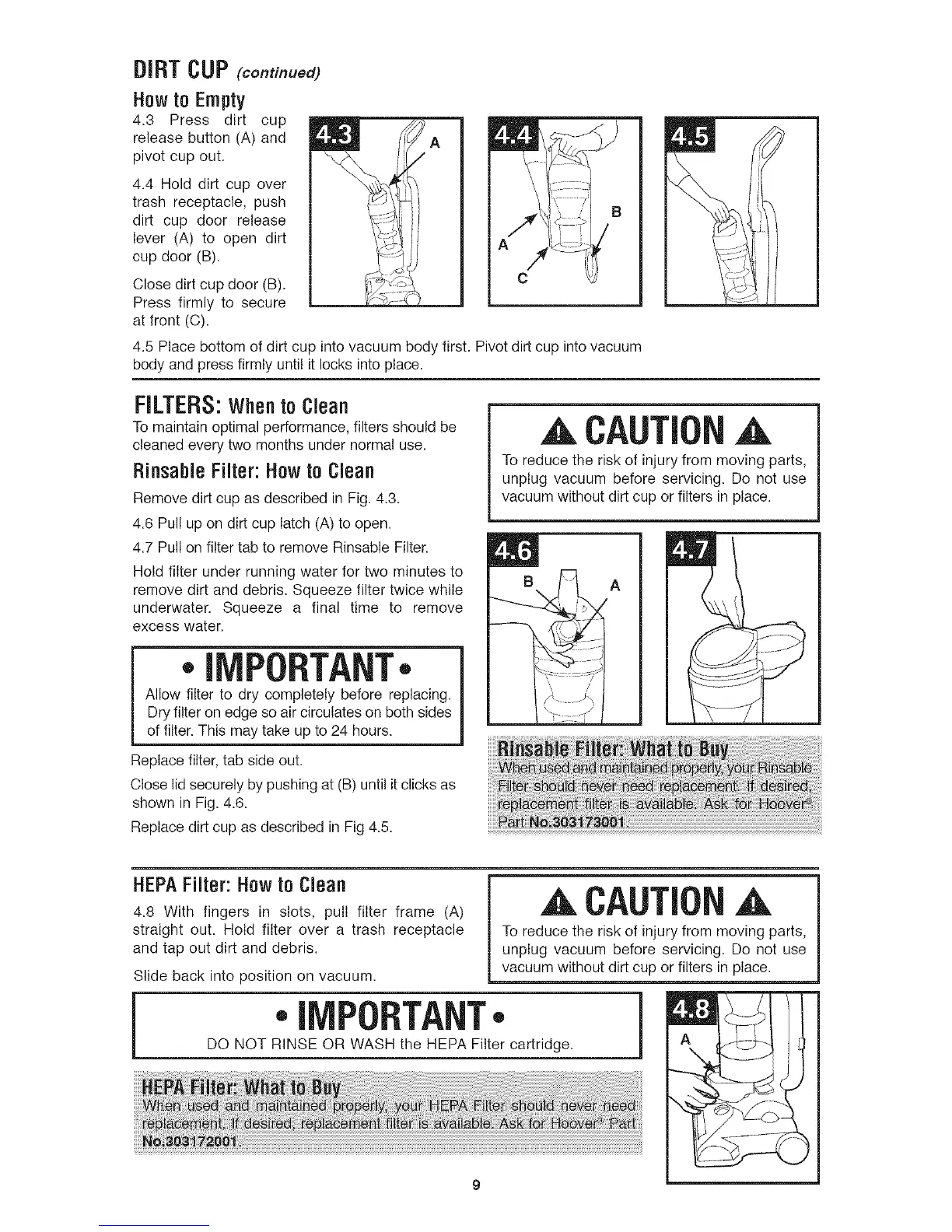

DIRTCUP(co,,t#,,,ed)
H0wto Empty
4.3 Press dirt cup
release button (A) and
pivot cup out.
4.4 Hold dirt cup over
trash receptacle, push
dirt cup door release
lever (A) to open dirt
cup door (B).
Close dirt cup door (B).
Press firmly to secure
at front (O).
C
4.5 Place bottom of dirt cup into vacuum body first. Pivot dirt cup into vacuum
body and press firmly until it locks into place.
FILTERS: Whento Clean
To maintain optimal performance, filters should be
cleaned every two months under normal use.
Rinsable Filter: Howto Clean
Remove dirt cup as described in Fig. 4.3.
4.6 Pull up on dirt cup latch (A) to open.
4.7 Pull on filter tab to remove Rinsable Filter.
Hold filter under running water for two minutes to
remove dirt and debris. Squeeze filter twice while
underwater. Squeeze a final time to remove
excess water.
A CAUTIONA
To reduce the risk of injury from moving parts,
unplug vacuum before servicing. Do not use
vacuum without dirt cup or filters in place.
,,IMPORTANT,,
Allow filter to dry completely before replacing.
Dry filter on edge so air circulates on both sides
of filter. This may take up to 24 hours.
Replace filter, tab side out.
Close lid securely by pushing at (B) until it clicks as
shown in Fig. 4.6.
Replace dirt cup as described in Fig 4.5.
HEPAFilter: Howto Clean
4.8 With fingers in slots, pull filter frame (A) "_ CAUTION"A
straight out. Hold filter over a trash receptacle To reduce the risk of injury from moving parts,
and tap out dirt and debris, unplug vacuum before servicing. Do not use
vacuum without dirt cup or filters in place.
Slide back into position on vacuum.
,,IMPORTANT- i
DO NOT RINSE OR WASH the HEPA Filter cartridge.
