Horizont Camera - Horizont Camera Specifications

Horizont User manual, 1970 year
– 2 –
Relative aperture: f/2.8 to f/16
Optical viewfinder:
eyepiece magnification — 0,4
x
angular field of view — 110×44°
Spirit level accuracy: 5°
Tripod socket thread: 1/4ʺ
Weight (with the cassette loaded with film): 1025 g

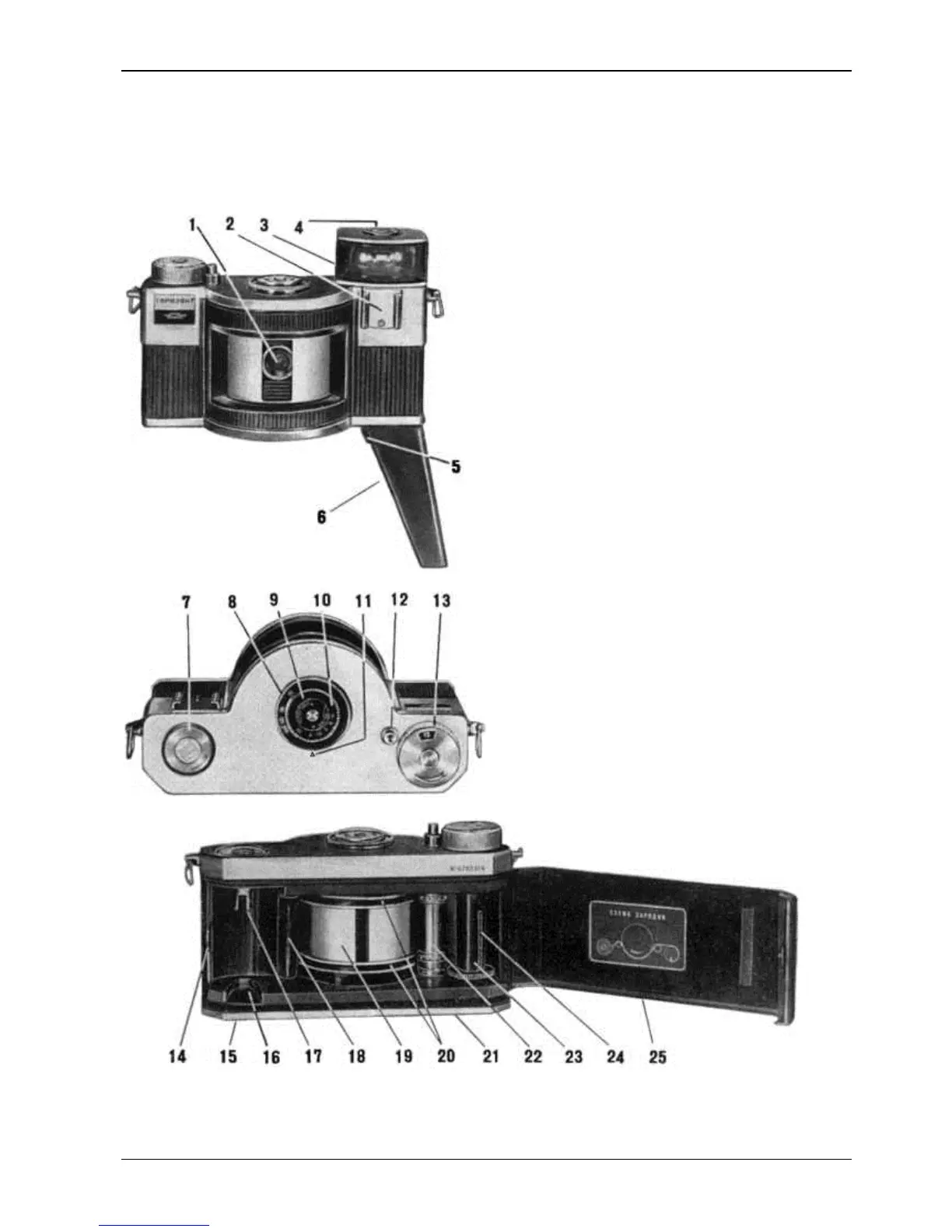

1. Lens
2. Bracket for attaching the viewfinder
3. Viewfinder
4. Viewfinder spirit level
5. Screw of the grip
6. Grip
7. Film reverse rewind knob
8. Exposure time scale
9. Film speed reminder
10. Diaphragm scale
11. Indicating mark of diaphragms and exposure
times
12. Release button
13. Shutter setting knob with exposure counter
14. Camera cover lock
15. Tripod bush
16. Cassette chamber
17. Cassette spool guide
18. Film guide roller
19. Film gate
20. Film slide
21. Falling in button
22. Sprocket
23. Take-up spool
24. Take-up spool slit
25. Folding back cover
