horsch Express TD - Pneumatics - Hose Arrangement

Pneumatics - hose
arrangement

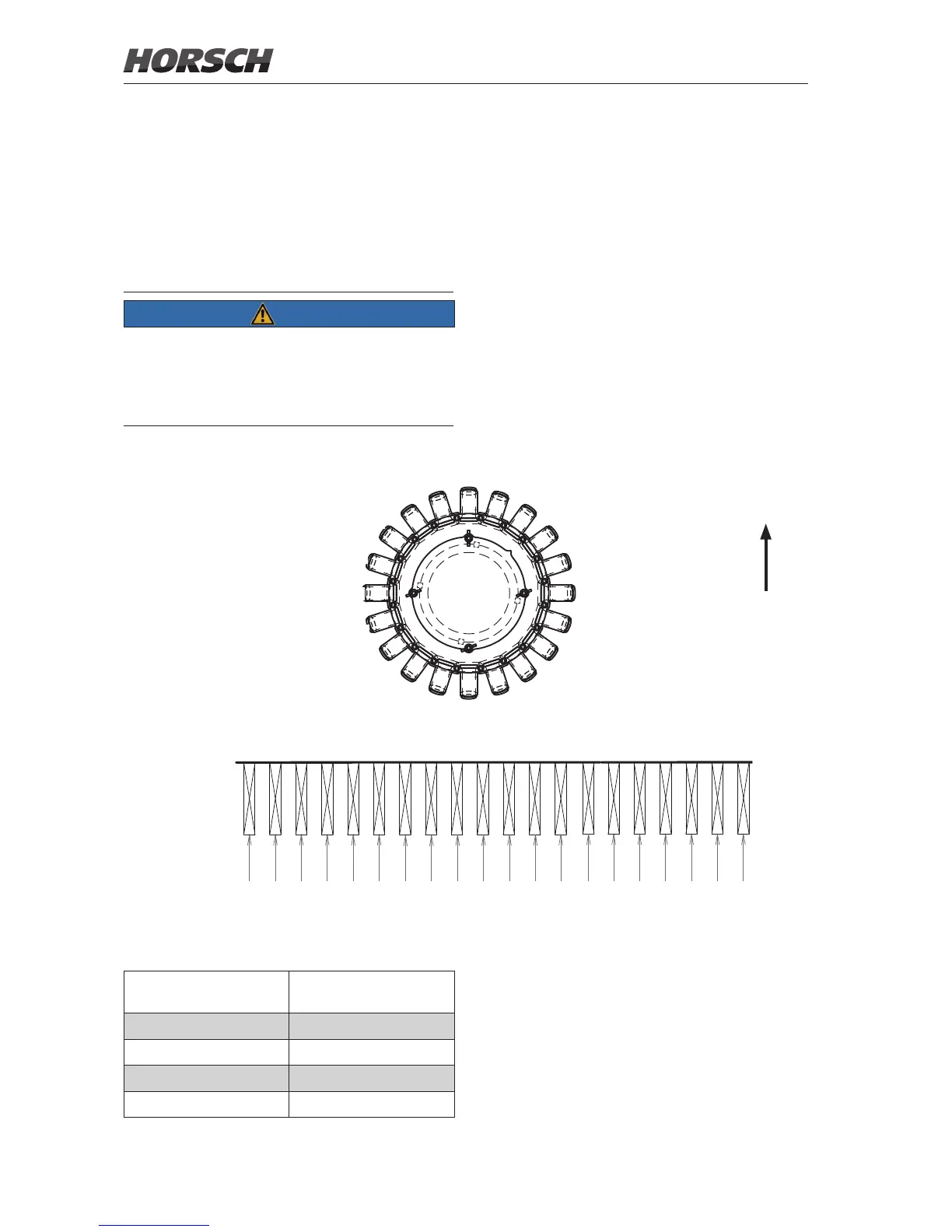

The out󰘱ows on the distributors are allocated to
the individual outlets on the seed bar through
numbering.
NOTE
Uniform seed placement can only be ensured
when the seed transport to the coulters is
working.
¾ Observe correct hose installation.
Tram line valves
Track width Tram line valves
(Coulter No.)
1.5 m 5, 6, 15, 16
1.8 m 4, 5, 16, 17
2.0 m 3, 4, 17, 18
2.2 m 3, 4, 17, 18
Express 3 TD
Output
Distributor No.
Coulter No.
Direction of travel
Distributor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
8 2 4 1 39 7 6 5
19 16 15 14 11 12 1318 20 1710
1 2 3 4 5
15 16 17 18 19
27
28
13
14
