25
Auger
Cutter
(motionless)
Extruding Head and
Upper Bearing
Evaporator
Hex Head Bolt with
Washer
Thumbscrew
Housing and
Lower Bearing
Gear Motor
Spline Coupling
Mechanical Seal
Spring Retainer
O-Ring

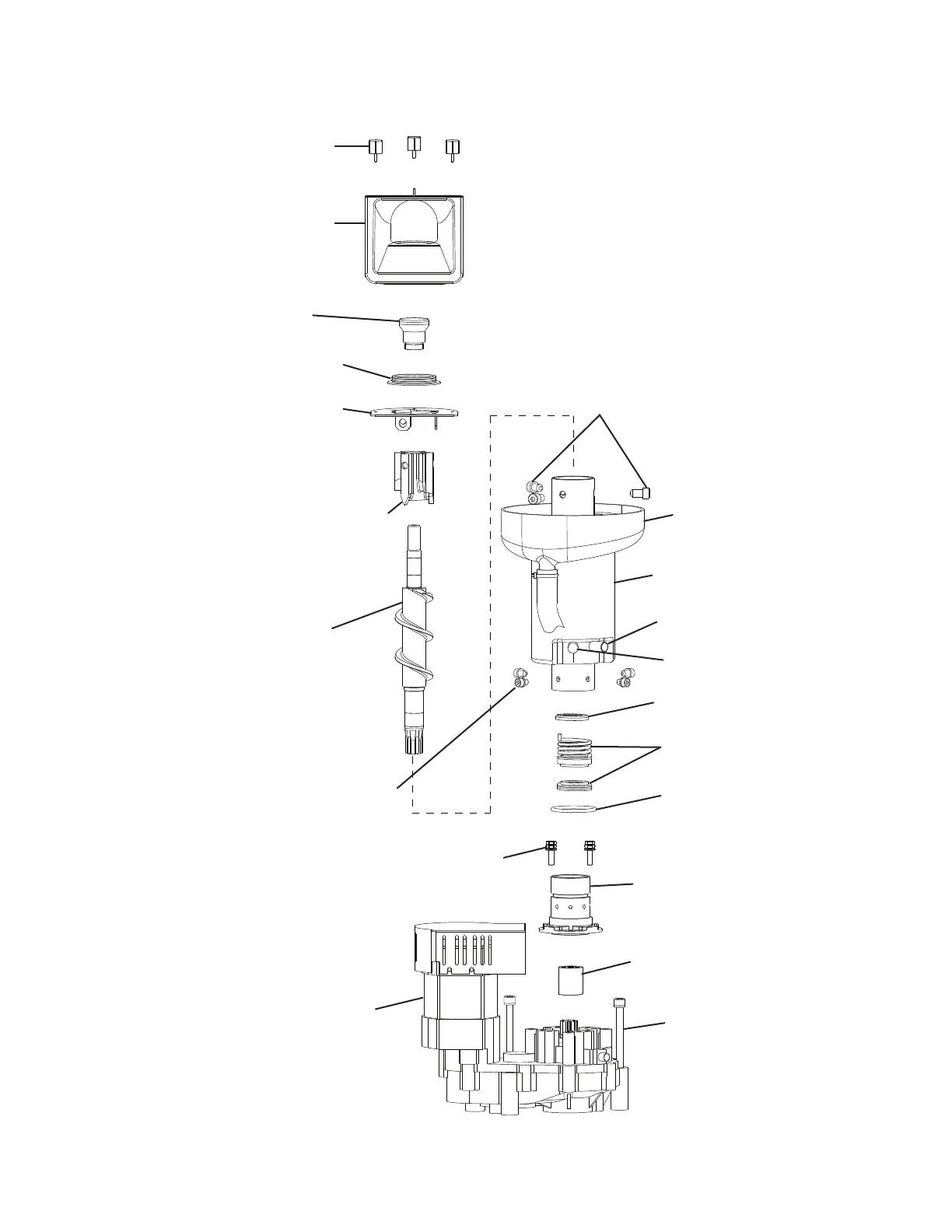

Fig. 5
Vinyl Cap
Evaporator
Flange
Packing
Reservoir Outlet
Hose Connection
Spout
Socket Head
Cap Screw
with Washer
Socket Head
Cap Screw
with Washer
Evaporator
Condensate
Drain Pan
Evaporator Assembly
Seal Bolts
Inspect for leakage around seal bolts.
Tighten (11.1 ft-lb/15 N·m) or replace as
necessary.
Seal bolts must be replaced once removed
because seal material is one-time use only.
If new seal bolts do not have preapplied
threadlocker, apply Loctite 243 or
equivalent threadlocker to seal bolt threads.
To Next Page
