Hot Spot LAP - Page 10

Spa Specifications & Illustration Page 7
LA PALMA
TM
(MODEL LAP)
HORIZONTAL DIMENSIONS: . . . . . . . . . . . . .91” x 91” (231 cm. x 231 cm.)
HEIGHT (without cover): . . . . . . . . . . . . . . . . . . .38” (97 cm.)
EFFECTIVE FILTER AREA: . . . . . . . . . . . . . . . . .65 sq. ft. (6.0 sq. meters)
HEATER: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4000 watts (4.0 kW) @ 230V
WATER (capacity): . . . . . . . . . . . . . . . . . . . . . . .430 gallons (1628 liters)
WEIGHT: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .961 lbs. dry (436 kg.), 5656 lbs. filled (2566 kg.)
(Includes weight of water and 7 adults @ 175 lbs. each.)
DEAD WEIGHT (filled): . . . . . . . . . . . . . . . . . . . . 110 lbs. per sq. ft., 555 kg. per sq. meter
ELECTRICAL REQUIREMENTS: . . . . . . . . . . . .230 volt 50 amp single phase G.F.C.I. circuit
NOTE: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .All wiring must be performed by a licensed electrician.
CERTIFICATIONS: . . . . . . . . . . . . . . . . . . . . . . .ETL Listed and TUV Certified

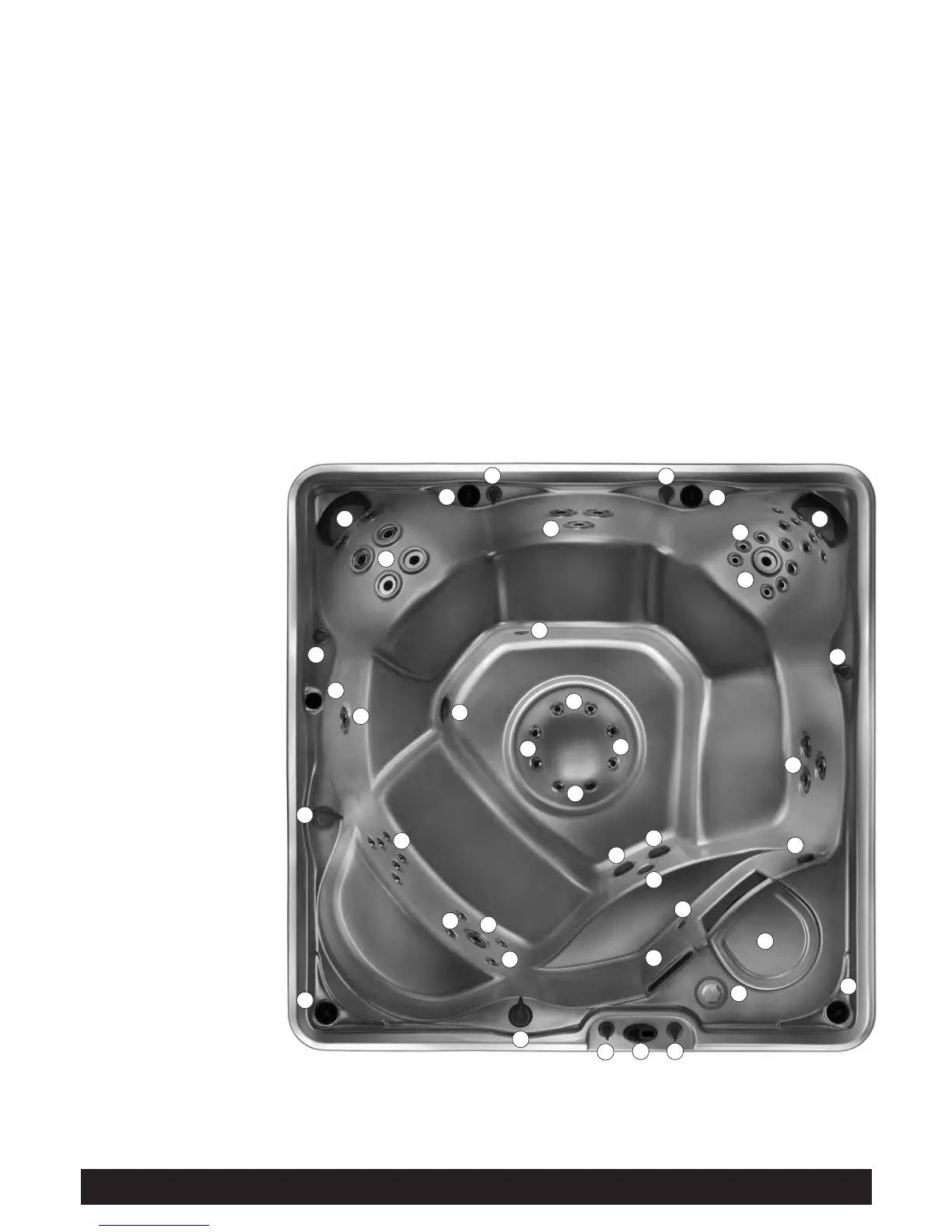

OVERHEAD VIEW
A. Air Control Lever
B. Diverter Valve
C. Control Panel
D. Spa Light
E. Filter Compartment Cover
F. Temperature Sensor
G. Precision
®
Jets
H. Adjustable Hydromassage Jet
I. Outlet for optional Ozone
J. Drain
K. Pillow
L. Waterfall
M. Waterfall On/Off Valve
N. Stereo Speaker
(Stereo Model Only)
O. Stereo Wired Remote
(Stereo Model Only)
P. Spa Frog
A
A
A
A
A
A
B
B
C
D
E
F
G
G
G
H
H
H
H
H
I
J
J
J
K
K
L
G
G
G
G
M
N
N
N
N
O
H
G
P
