SPA SPECIFICATIONS & ILLUSTRATION
MALLORCA
®
(MODEL MAL)
HORIZONTAL DIMENSIONS: . . . . . . . . . . . . .84” (213 cm.) square
HEIGHT (without cover): . . . . . . . . . . . . . . . . . . .36” (91 cm.)
EFFECTIVE FILTER AREA: . . . . . . . . . . . . . . . . .75 sq. ft. (6.97 sq. meters)
HEATER: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4000 watts (4.0 kW)
WATER (capacity): . . . . . . . . . . . . . . . . . . . . . . .360 gallons (1363 liters)
WEIGHT: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .706 lbs. dry (320 kg.), 4636 lbs. filled (2103 kg.)
(Includes weight of water and 6 adults @ 175 lbs. each.)
DEAD WEIGHT (filled): . . . . . . . . . . . . . . . . . . . . 100 lbs. per sq. ft., 490 kg. per sq. meter
ELECTRICAL REQUIREMENTS: . . . . . . . . . . . .230 volt 50 amp single phase G.F.C.I. circuit
NOTE: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .All wiring must be performed by a licensed electrician.
CERTIFICATIONS: . . . . . . . . . . . . . . . . . . . . . . .ETL Listed and TUV Certified

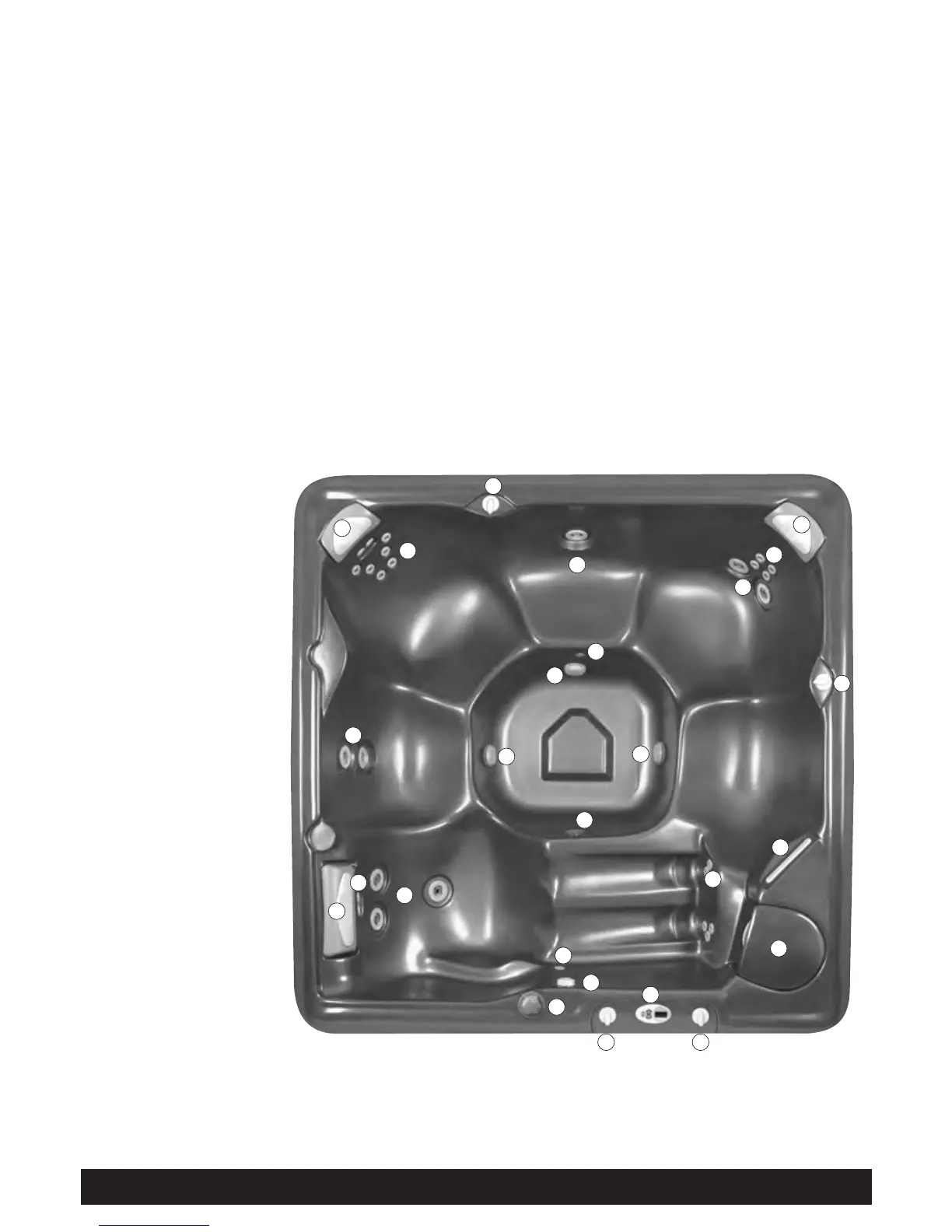

OVERHEAD VIEW
A. Air Control Lever
B. Control Panel
C. Spa Light
D. Filter Compartment Cover
E. Temperature Sensor
F. Directional Precision
®
Jets
G. Adjustable Hydromassage Jet
H. Outlet for optional Ozone
I. Drain
J. Pillow
K. Waterfall
L. Waterfall On/Off Valve
M. Spa Frog
