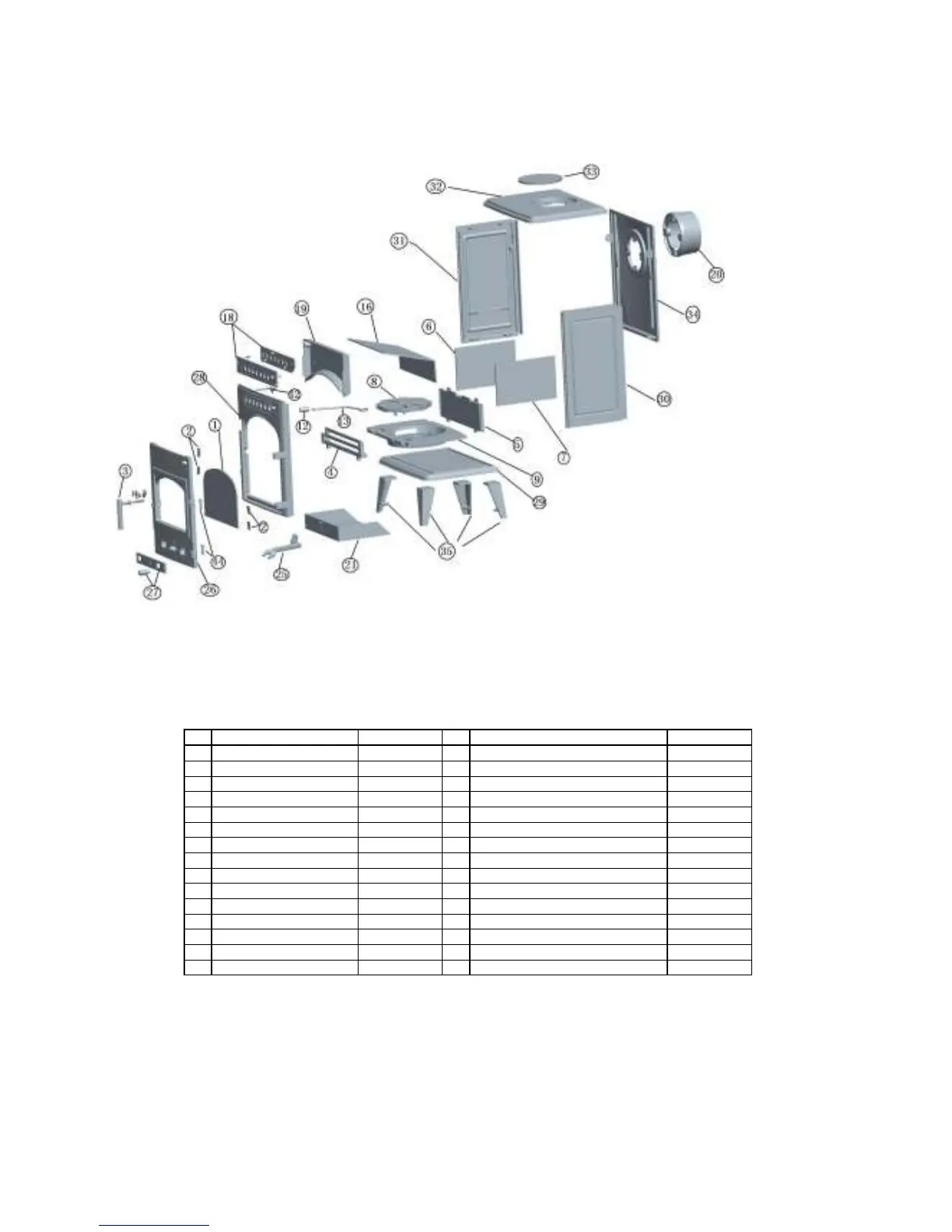

HH468SE 25-07-12
Component HH04SE Component HH04SE
01 Door Glass Y1HDF04D01E 22 Ashpan Y1HDF04D28E
02 Glass Brackets and Screws Y1HDF04D02E 23 Glove Y1HD29E
03 Door Handle assembly Y1HHF04D03E 25 Ashpan Tool Y1HD31E
04 Coalcatcher Y1HDF04D04E 26 Door Y1HHF04D32E
05 Back Plate/fireboard Y1HDF04D05E 27 Primary Air Control including handle Y1HHF04D33E
06 Side Plate Left/fireboard Y1HDF04D06E 28 Front Y1HDF04D34E
07 Side Plate Right/fireboard Y1HDF04D07E 29 Base Y1HDF04D35E
08 Riddle Grate Y1HDD08E 30 Side Right Y1HDF04D36E
09 Grate for Riddle Grate Y1HDF04D12E 31 Side Left Y1HDF04D37E
12 Riddle Grate Handle Y1HHF04D15E 32 Top Y1HHF04D38E
13 Riddle Grate Bar Y1HDF04D16E 33 Blanking plate Y1HDF39E
16 Baffle Plate Y1HDF04D19E 34 Back Y1HDF04D41E
18 Airwash slider plates Y1HDF04D21E 35 Legs Y1HHF04D42E
19 Airwash Housing Y1HDF04D22E 42 Airwash Handle Y1HHF04D49E
20 Collar Y1HD23E 44 Door Hinge/Pin Y1HD51E
10. HH4SE Spare Parts List and Codes
