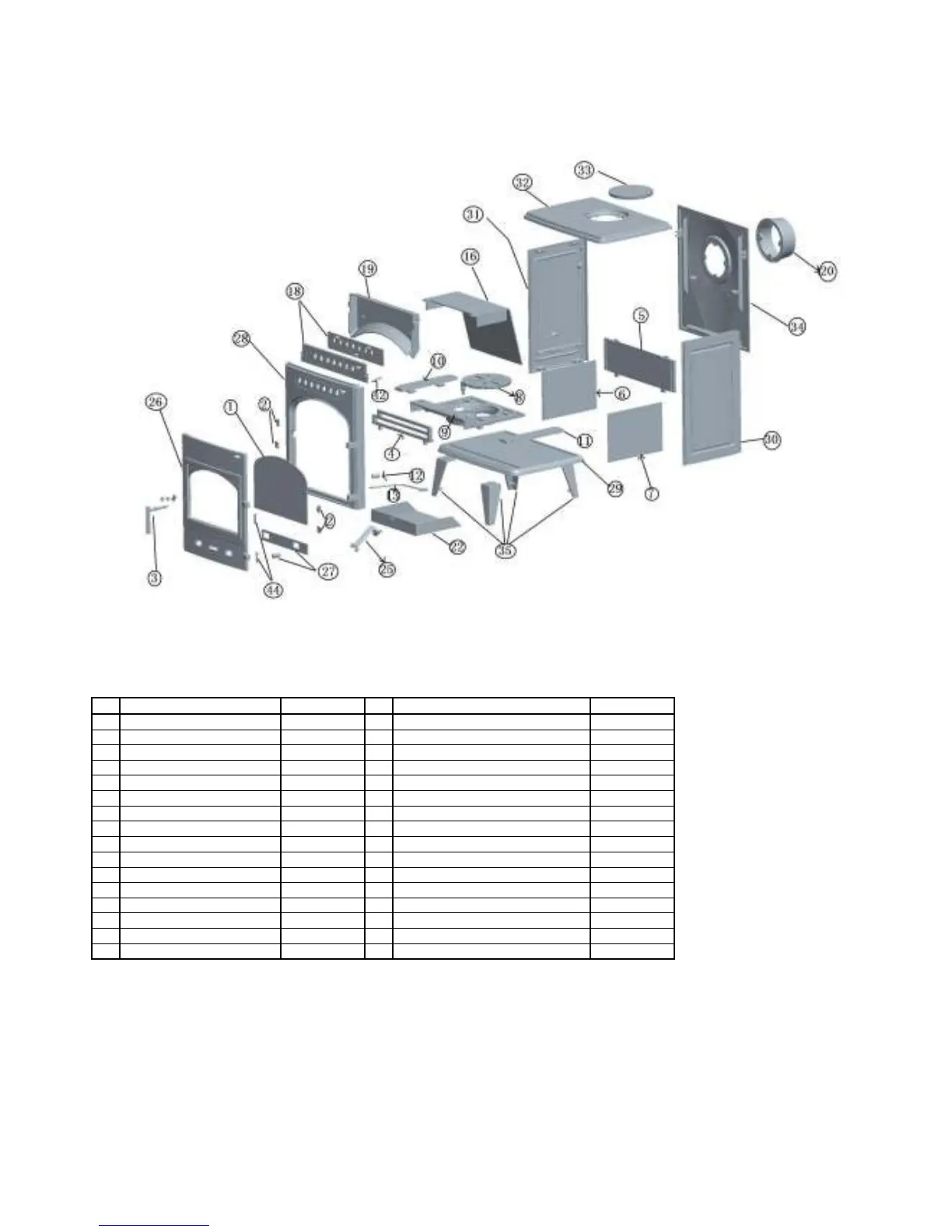

HH468SE 25-07-12
Component HH8SE Component HH8SE
01 Door Glass Y1HDF08D01E 20 Collar Y1HD24E
02 Glass Brackets and Screws Y1HDF08D02E 22 Ashpan Y1HDF08D28E
03 Door Handle assembly Y1HHF08D03E 23 Glove Y1HD29E
04 Coalcatcher Y1HDF08D04E 25 Ashpan Tool Y1HD31E
05 Back Plate/fireboard Y1HDF08D05E 26 Door Y1HHF08D32E
06 Side Plate Left/fireboard Y1HDF08D06E 27 Primary Air Control including handle Y1HHF08D33E
07 Side Plate Right/fireboard Y1HDF08D07E 28 Front Y1HDF08D34E
08 Riddle Grate Y1HDD09E 29 Base Y1HDF08D35E
09 Grate for Riddle Grate Y1HDF08D12E 30 Side Right Y1HDF08D36E
10 Grate Mounting Bracket Left Y1HDF08D13E 31 Side Left Y1HDF08D37E
11 Grate Mounting Bracket Right Y1HDF08D14E 32 Top Y1HHF08D38E
12 Riddle Grate Handle Y1HHF06X15E 33 Blanking plate Y1HDF40E
16 Baffle Plate Y1HDF08D19E 35 Legs Y1HHF08X42E
18 Airwash slider plates Y1HDF08D21E 42 Airwash Handle Y1HHF08X49E
19 Airwash Housing Y1HDF08D22E 44 Door Hinge/Pin Y1HD51E
12. HH8SE Spare Parts List and Codes
