Installation Instructions
REMOVE THE REFRIGERATOR
DOOR
2
Tape the door shut with masking tape.
Remove the center hinge pin with a 3/8″ socket
and ratchet.
Remove the tape and tilt the door away from the
cabinet. Remove and save the washer on the hinge pin.
Lift the door straight up to free its bottom socket from
the pin in the bottom hinge bracket.
Set the door on a non-scratching surface with the
inside up.
CAUTION: Do not let door drop to the floor. To do so
could damage the door stop.
TRANSFER TOP HINGE TO
THE LEFT
Interchange hinge and screws at top right with screws
at the top left of cabinet.
Do not tighten screws on hinge side at this time.
3

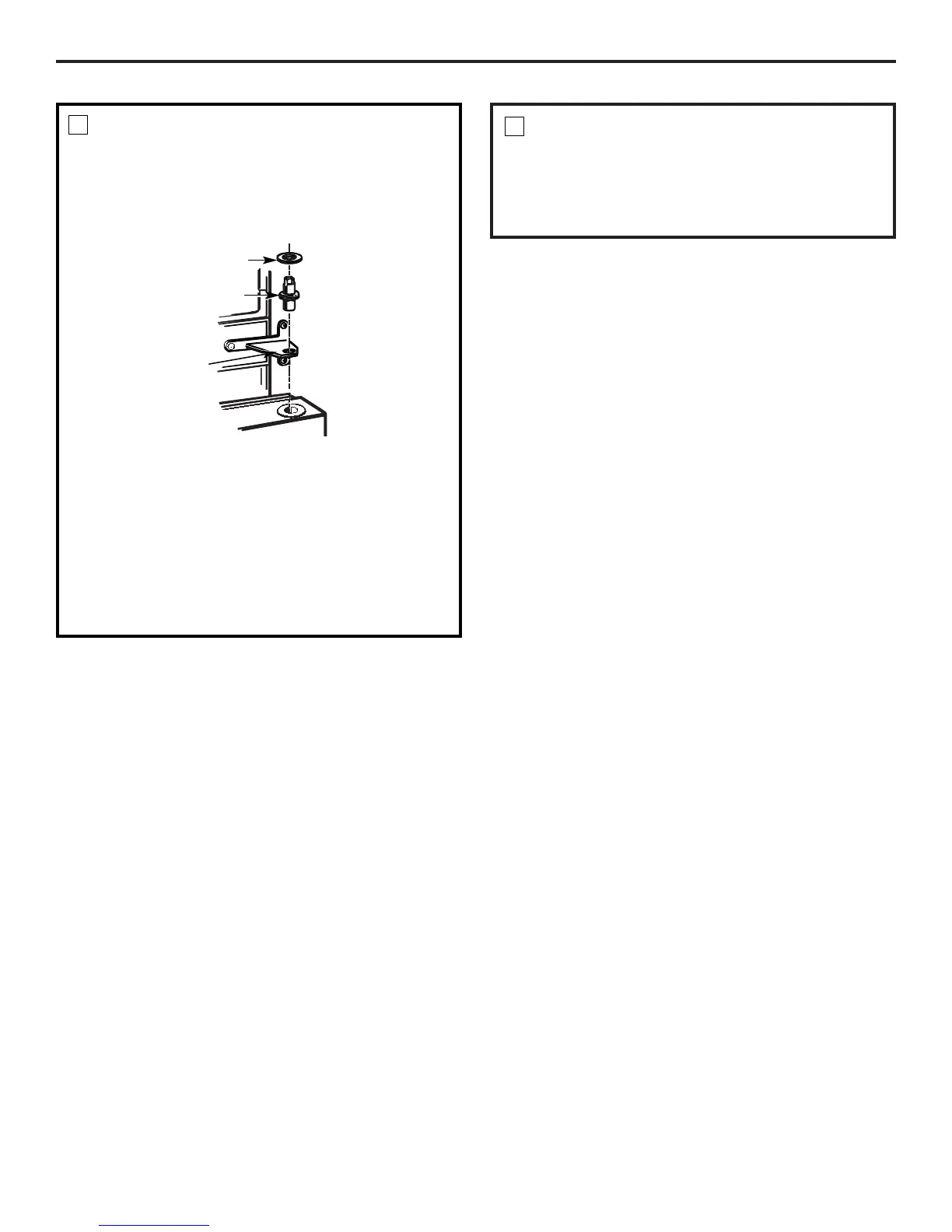

Plastic Washer
Fresh Food Door
Hinge Pin
Center Hinge
Bracket
