Hotpoint BD52 - Grill Pan Handle Assembly; Securely Attach Grill Pan Handle

22
Fixing the Grill Pan Handle
Fix the grill pan handle securely in
position before use.
The grill pan handle is detachable
from the pan, to facilitate cleaning
and storage.

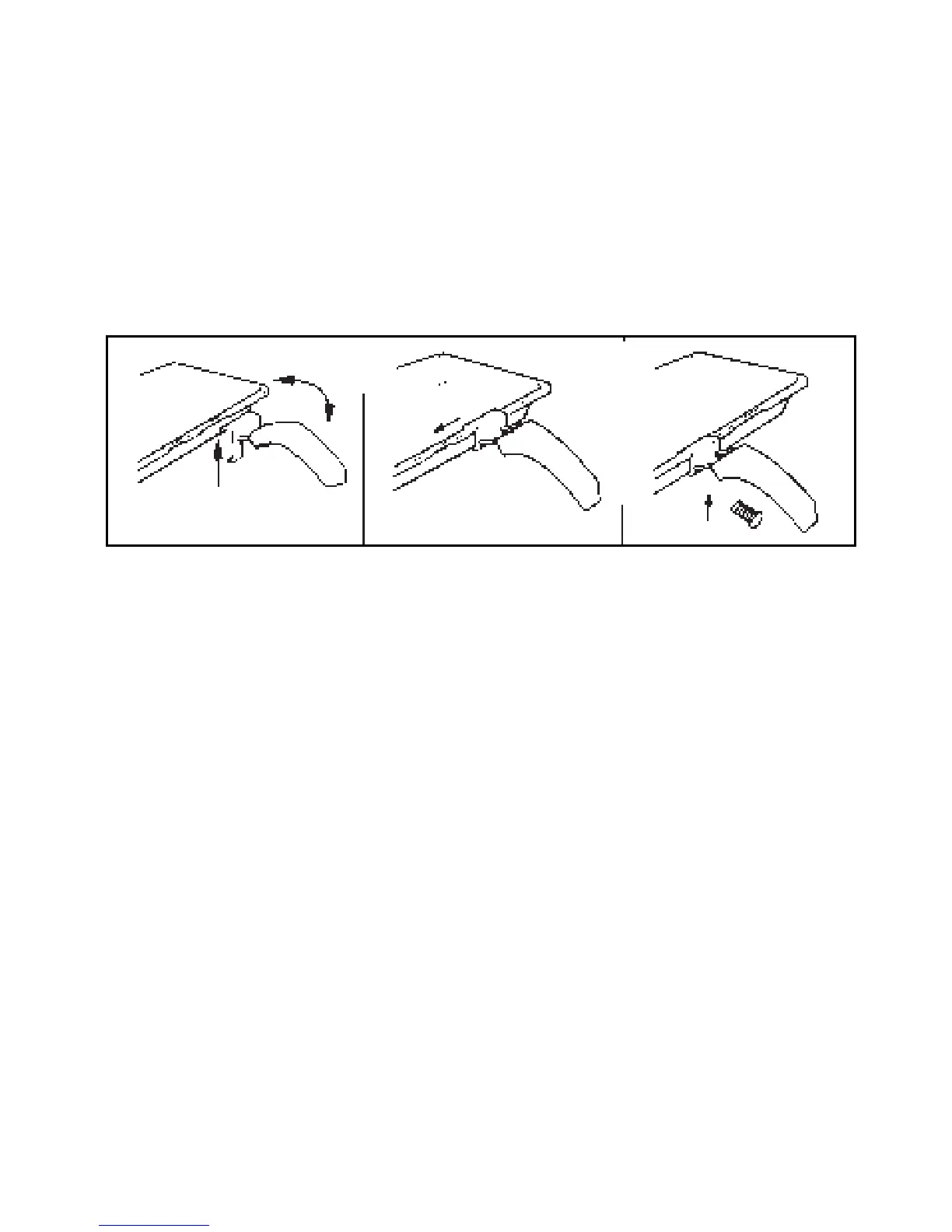

The handle fits onto the grill pan
edge with the small recess, Fig. 5.
Tilt the handle over the recess and
slide it towards the centre, Fig. 6
Ensure the handle is fully located
Fig. 7.
Insert the washer and fixing screw
and tighten fully to ensure handle is
secured .
Fig. 5
Recess
Always fit the screw prior to use.
Fig. 6 Fig. 7
