You may need to remove both doors for the
appliance to fit through access doors -
follow the instructions below:
Feed Water Tube:
* Remove the lower cover by lifting upwards.
* Pull out the feed water tube, while pressing
area (1) indicated in Fig.1
Remove the Freezer Compartment Door:
* Loosen the screws in the upper hinge
cover and remove. Separate all connection
wires, except for the earth line (Fig.2).
* Remove the retainer by rotating it anti-
clockwise (a - Fig.3), then remove the
upper hinge by lifting up.
* Remove the freezer compartment door by
lifting it up off the lower hinge.
Lift enough so that the feed water tube is
completely pulled out (Fig.4)
Installation
WARNING: ENSURE THE APPLIANCE IS NOT
CONNECTED TO THE ELECTRICITY SUPPLY
BEFORE INSTALLING.
WARNING: YOU MAY NEED ASSISTANCE TO
DO THIS - THE DOORS ARE HEAVY AND
SHOULD BE SUPPORTED AT ALL TIMES TO
AVOID DAMAGE AND INJURY.
NOTE: Cut away any tube end which is
misshapen or worn
NOTE: Support the door when removing
the upper hinge.
NOTE: Carry the freezer compartment
door through the access door and lay it
down on suitable material eg. the original
packaging.
Take care not to bend or damage the feed
water tube.
6

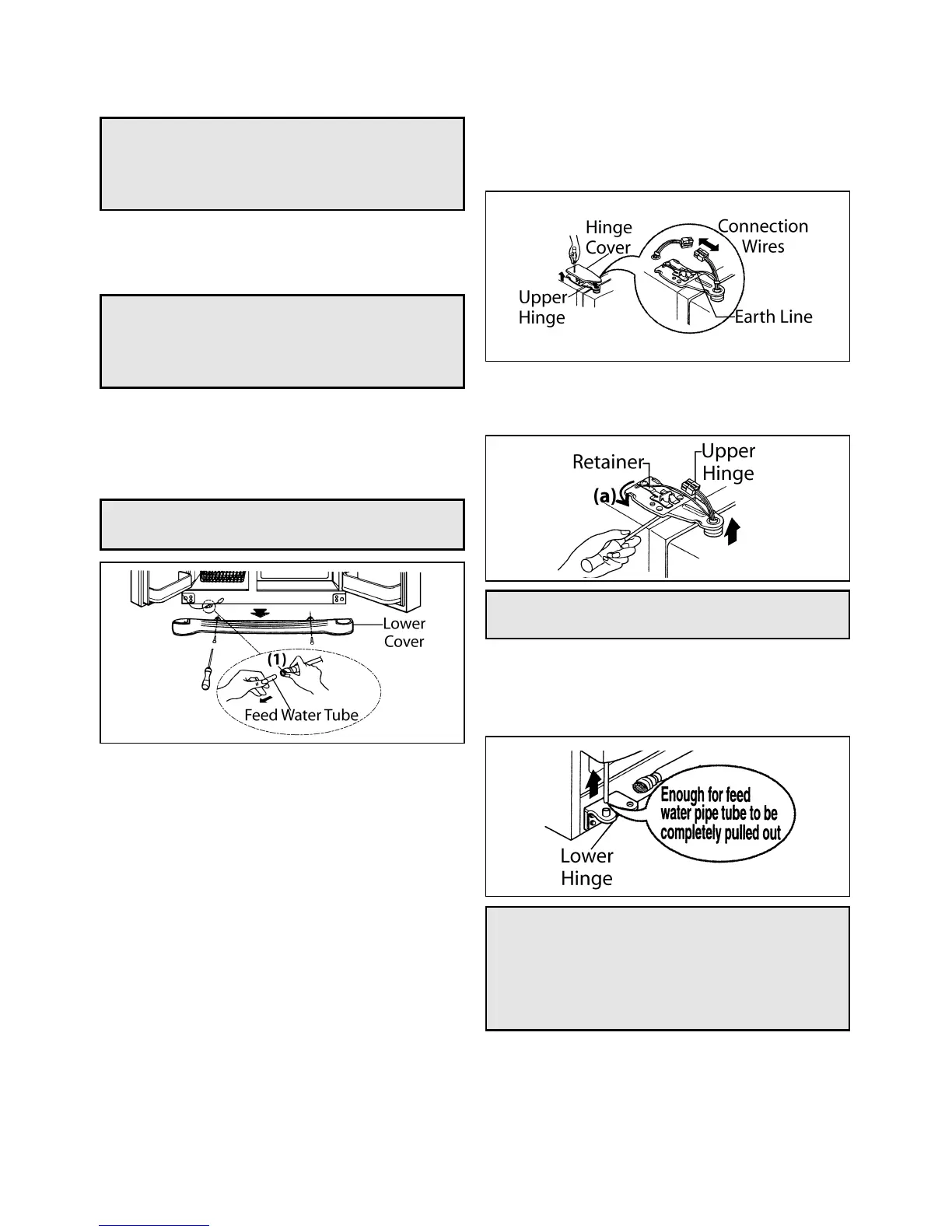

Fig.1
Fig.2
Fig.3
Fig.4
