Installing your Cooker Hood
6

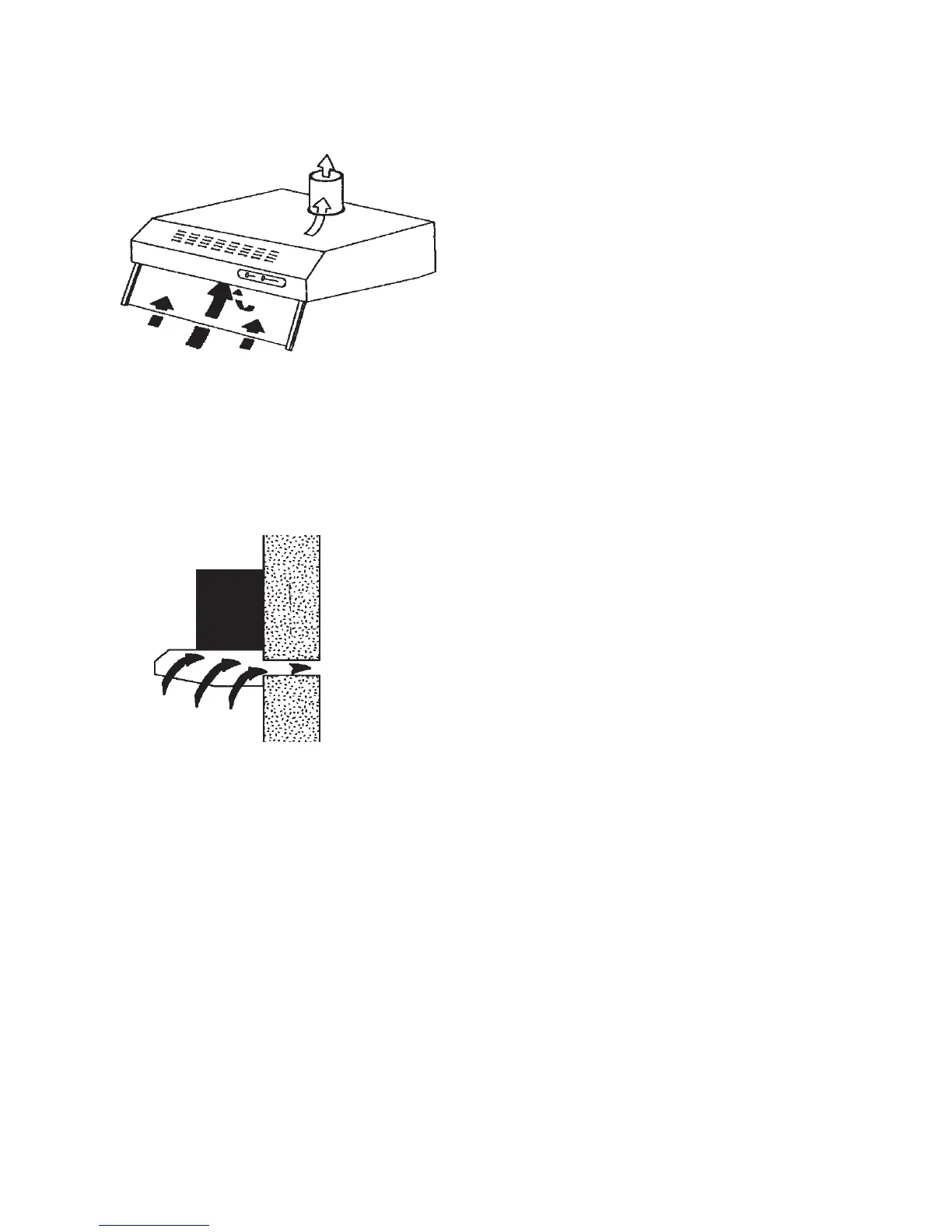

Top Extraction (Fig.4)
If the exhaust air is being drawn upwards, a
pipe with a diameter of 100mm is necessary
and the blanking plate must be fitted in the
rear outlet. To check that the hood is set up
for extraction, open the grille panel and make
sure that the conversion lever on the unit is in
the exhausting position.
Rear Extraction (Fig.5)
If the air is to be drawn off to the rear, a pipe
with a diameter of 100mm is necessary and
the blanking plate should be fitted in the top
outlet.
Ducting:
In order to obtain satisfactory air extraction,
long ducts should not be used. Pipes with a
minimum internal diameter of 100mm and
with as smooth an inner wall as possible are
recommended. The ducting MUST be
manufactured from a fire retardant material.
