Note: Whenever the low salt warning lamp is on, the dishwasher will not carry out regeneration.
Air Break Assembly
Turbidity Sensor
Situated in the Sump it detects the dirt level in the water and consequently selects the required
cycle content and duration when an Auto Cycle is selected.
Drying
The Natural Drying System uses Residual Heat and Rinse Aid to Dry the loaded dishwasher.
During the Drying Phase of the cycle the Water reaches a very high Temperature 70
°C.
Drying is carried out in 2 steps both with the machine paused (Circulating wash pump off).
1. Hot water in the tub.
2. Hot water drained from the tub.
Filtering System
The flat filter is made of metal and larger than previous models which will prevent the filter from
clogging.

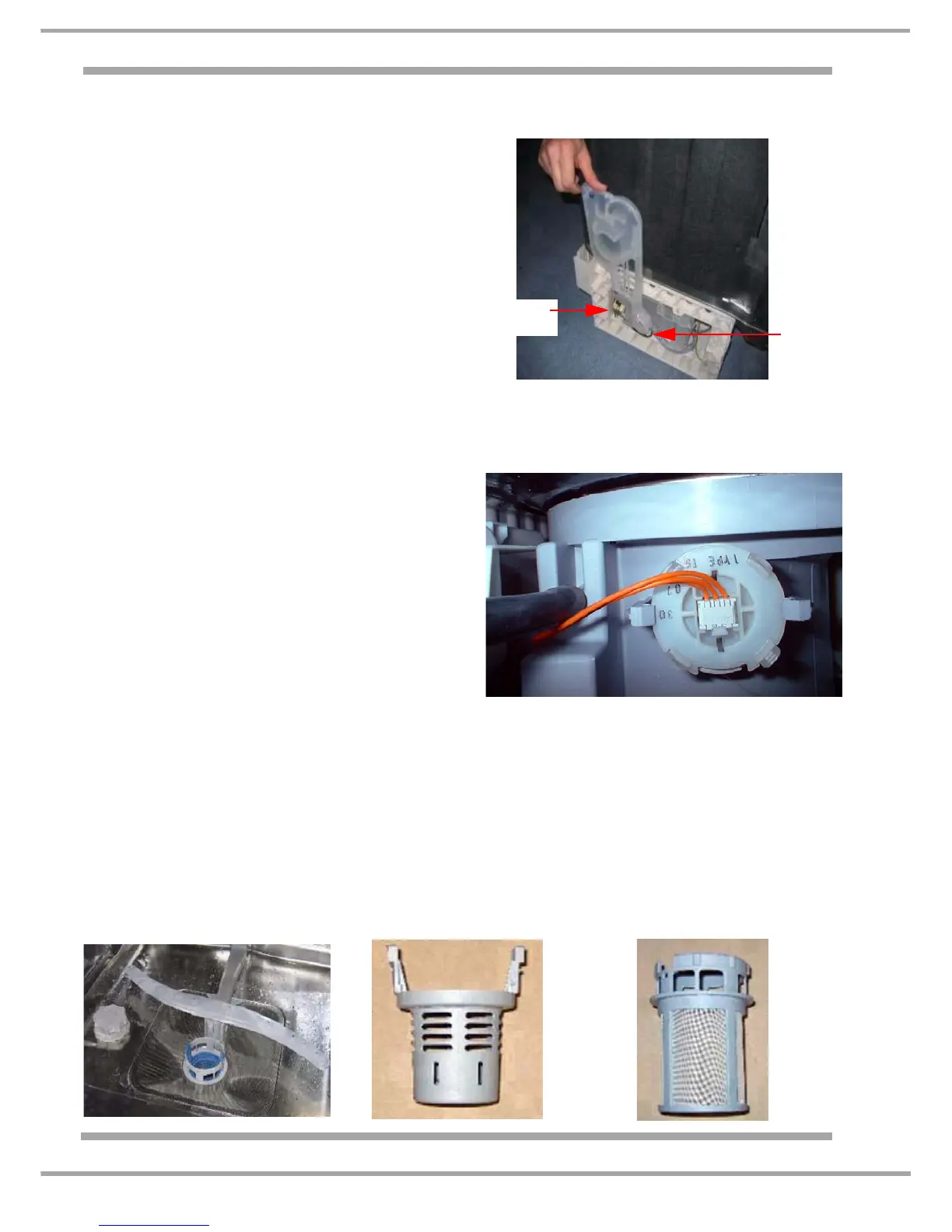

Located on the right hand side of the
machine.
The Air Break Assembly carries out 3
functions
1. Stops filling water siphoning back into the
mains water supply.
2. Vents the Steam from the dishwasher tub.
3. Diverts 3% of the hard water fill into the
tub to avoid the water being too soft which
could cause excessive foam.
The Air Break also holds the regeneration
valve and the Water fill turbine.
The Turbidity Sensor is active on Programmes:
• Auto Normal
• Auto Duo Wash
• Auto Super Wash
Depending upon the soil in the water the control
module, in conjunction with the turbidity sensor
adjusts the following:
•Temperature
• Cycle duration
• Number of rinses
• Wash Pump Flexipower Motor speed
• Spray arm pressure
Flat Filter
Bowl Filter
Micro Filter
Regeneration
Valve
Fill
Turbine
