Installation Instructions

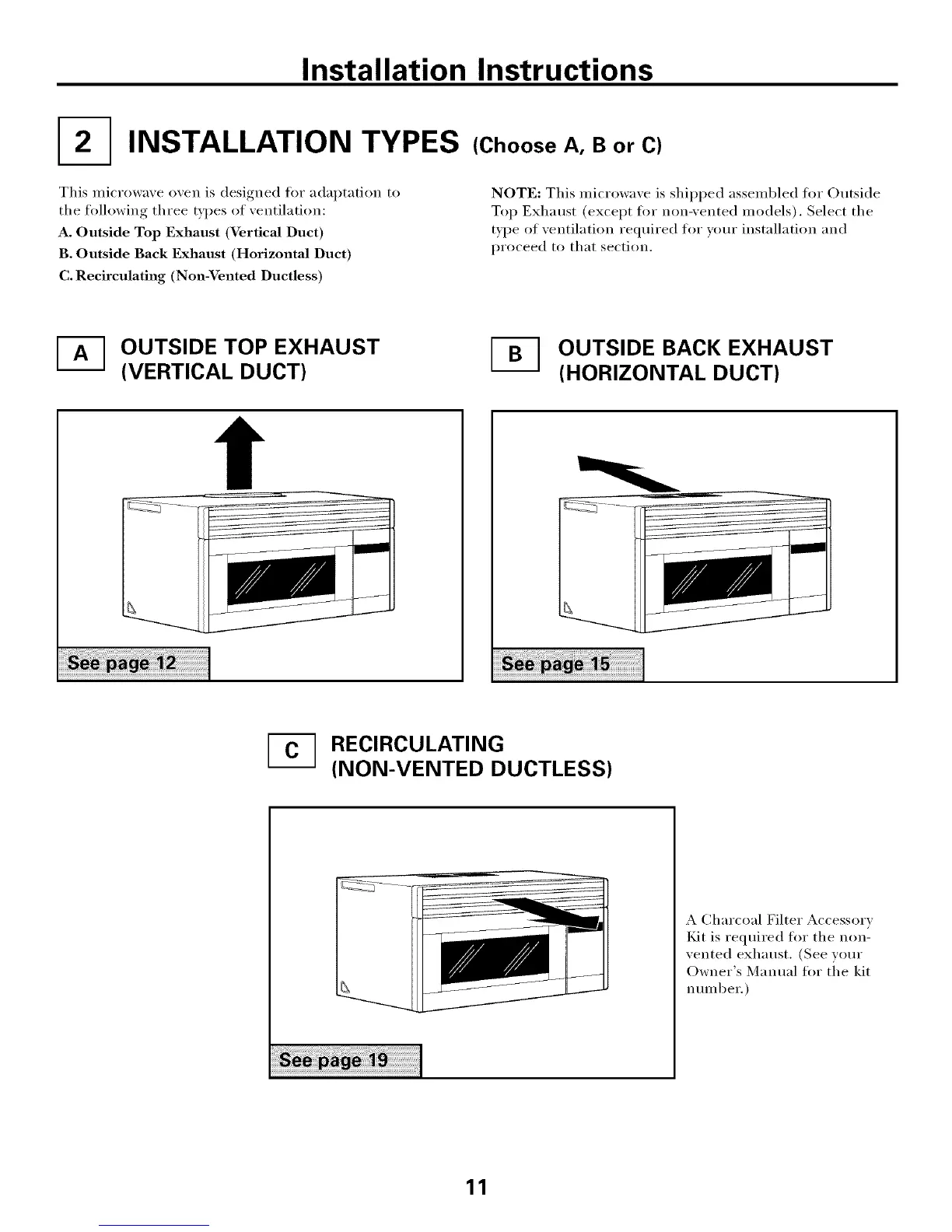

INSTALLATION TYPES
This microwave ()veil is designed fi)r adaptation to
the following three types of ventilation:
A, Outside Top Exhaust (Vertical Duct)
B, Outside Back Exhaust (Horizontal Duct)
C, Recirculating (Non-Vented Ductless)
(Choose A, B or C)
NOTE: This microwave is shii)ped assembled fl)r Outside
Top Exhaust (except fl)r non-vented models), Select the
Wpe of ventilation required for wmr installation and
proceed to that section,
OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
1
_-_ RECIRCULATING
(NON-VENTED DUCTLESS)
A Charcoal Filter Accessory
Kit is required fi)r tile non-
vented exhaust. (See your
Owner's Manual tot the kit
number.)
11
