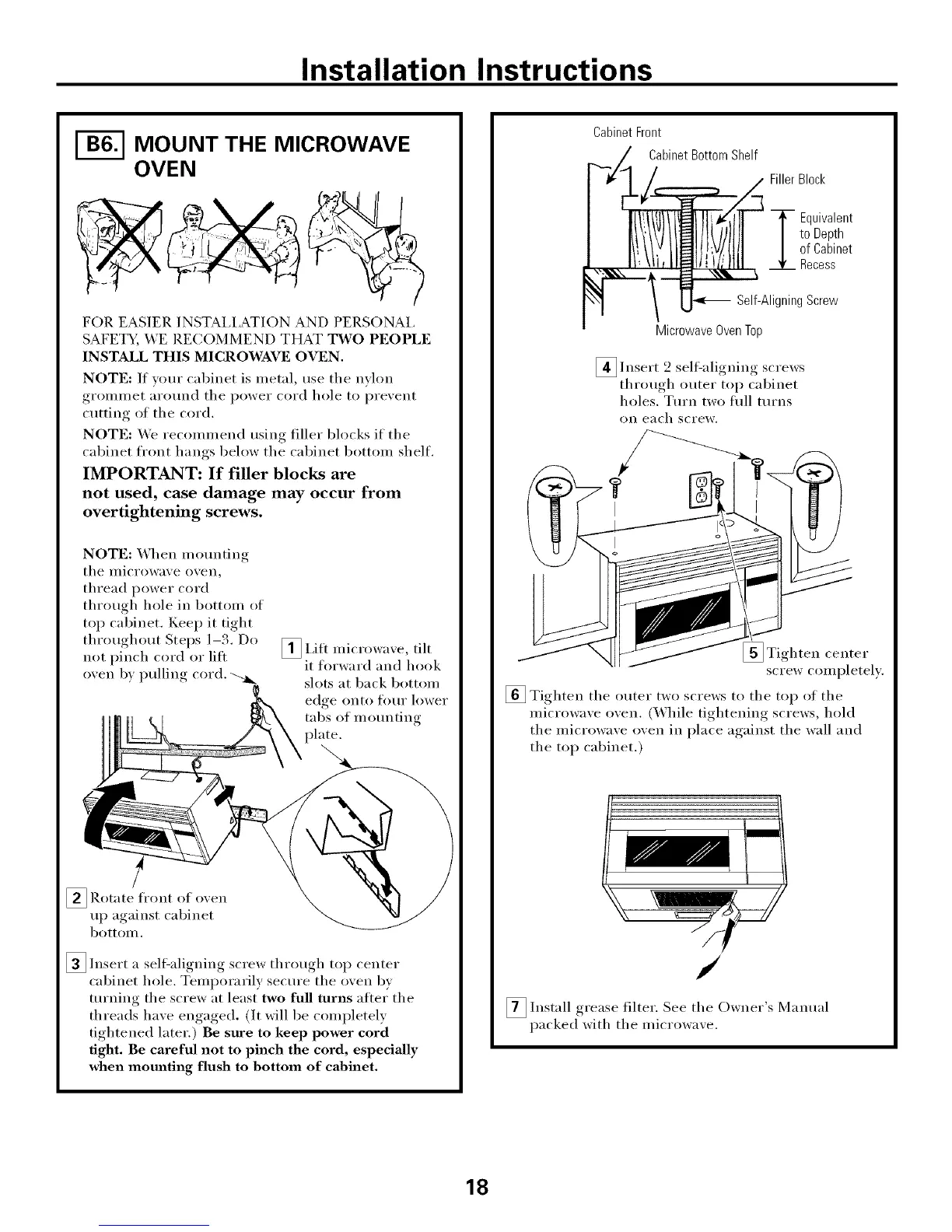

Installation Instructions
MOUNT THE MICROWAVE
OVEN
FOR EASIER INSTAI,IATION AND PERSONAI,
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
NOTE: If vour cabinet is metal, use tile nylon
grommet around tile power cord hole to prevent
cutting of tile cord.
NOTE: We recommend using filler blocks if the
cabinet fl'ont hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are
not used, case damage may occur from
overtightening screws.
NOTE: When motmting
tile inicFowave oven_
thread power cord
through hole in bottom of
top cabinet. Kee I) it tight
throughout Steps 1-3. Do
not pinch cord or lift
oven b)' pulling cord.
[]I,ifl microwave, tilt
it forward and hook
slots at back bottom
edge ()lit() tO/ll" lower
tabs of motmting
plate.
_ Rotate front of
o_en
up against cabinet
bottom.
_lnsert a self=aligning screw through top center
cabinet hole. Temporarily secure tile oven by
turning tile screw at least two full turns atter tile
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to Bottom of cabinet.
CabinetFront
CabinetBottomShelf
FillerBlock
T quivalent
to Depth
of Cabinet
Recess
Self-AligningScrew
MicrowaveOvenTop
_lnsert 2 self-aligning screws
throm,h_ outer top cabinet
holes. Tm'n two flfll tm'ns
on each screw.
_ Tighten center
screw completely,
[] Tighten the outer two screws to the top of the
microwave oven, (While tightening screws, hold
the microwave oven in place against the wall and
tile top cabinet.)
I
S /
_lnstall filter. See tile Owner Manualgrease
packed with tile microwaxe.
