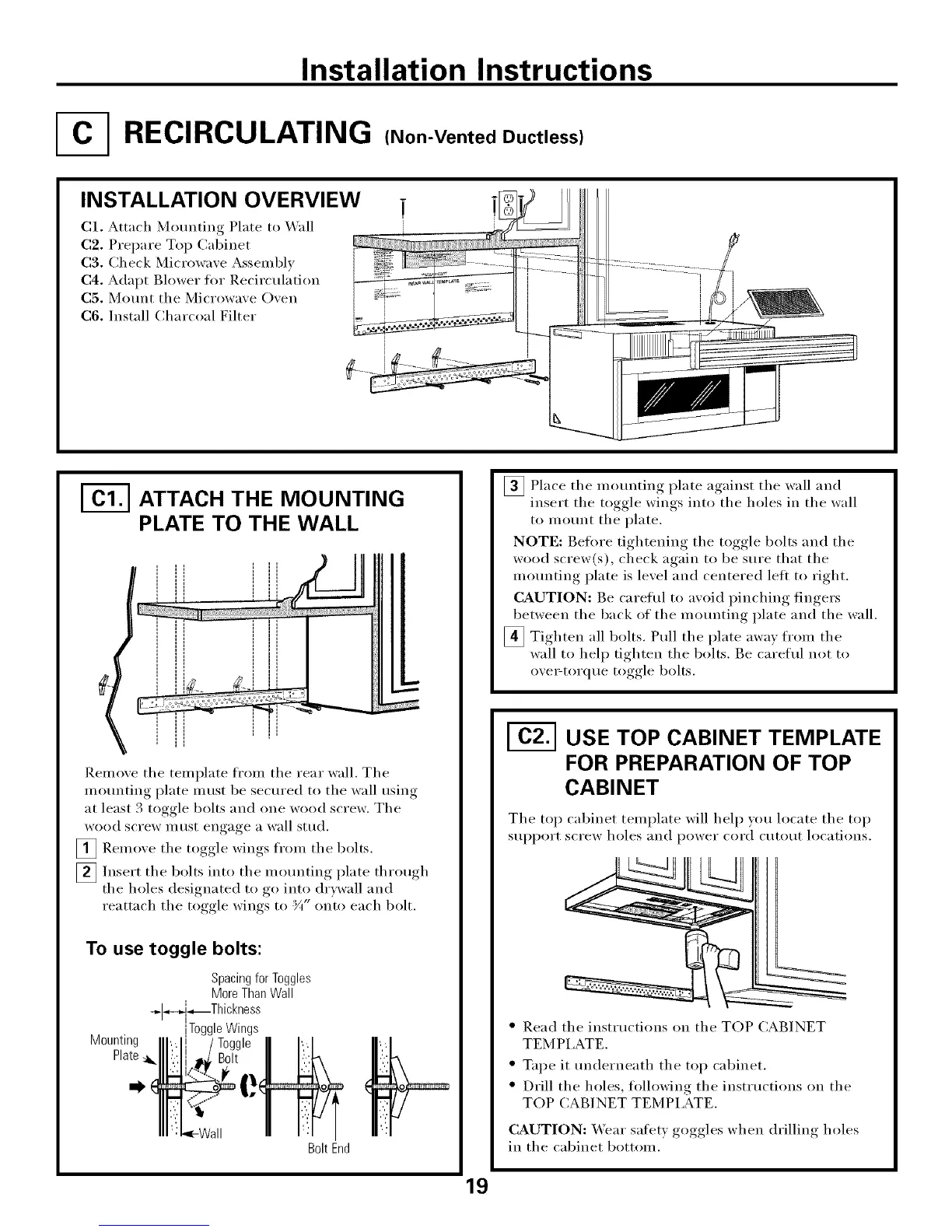

Installation Instructions
RECIRCULATING (Non-VentedDuctless)
INSTALLATION OVERVIEW
C1. Attach Mom_ting Plate to _11
C2. Prepare Top Cabinet
C3. Check Microwave Assembly
C4. Adapt Blower tin _Recirculation
C5. Mount the Microwave Oven
C6. Install Charcoal Filter
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
J
1 I
Remove the template fl'om the rear wall. The
mounting plate must be secured to the wall using
at least 3 toggle bolts and one wood screw. The
wood screw must engage a wall stud.
[]Remove the toggle wings from the bolts.
[]Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to _g" onto each bolt.
To use toggle bolts:
Spacing for Toggles
More Than Wall
+l_[.._Th ckness
ToggleWings
Mounting
Plate_
,,i,
BoltEnd
_ Place the motmting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening the toggle bolts and the
wood screw(s), check again to be sure that the
motmting plate is level and centered left to right.
CAUTION: Be carefld to avoid pinching fingers
between the back of the motmting plate and the wall.
_ Tighten all bolts, Pull the plate awa)' fl'om the
wall to help tighten the bolts, Be careflfl not to
ove>torque toggle bolts.
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
The top cabinet template will hel I) )ou locate the top
StlppoI't SCI'eW holes and powei" coi'd ct/totlt locations.
" Read the instructions on the TOP CABINET
TEMPI,ATE.
" Tape it tmderneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE,
CAUTION: X4ear safet) goggles when drilling holes
in the cabinet bottom.
19
