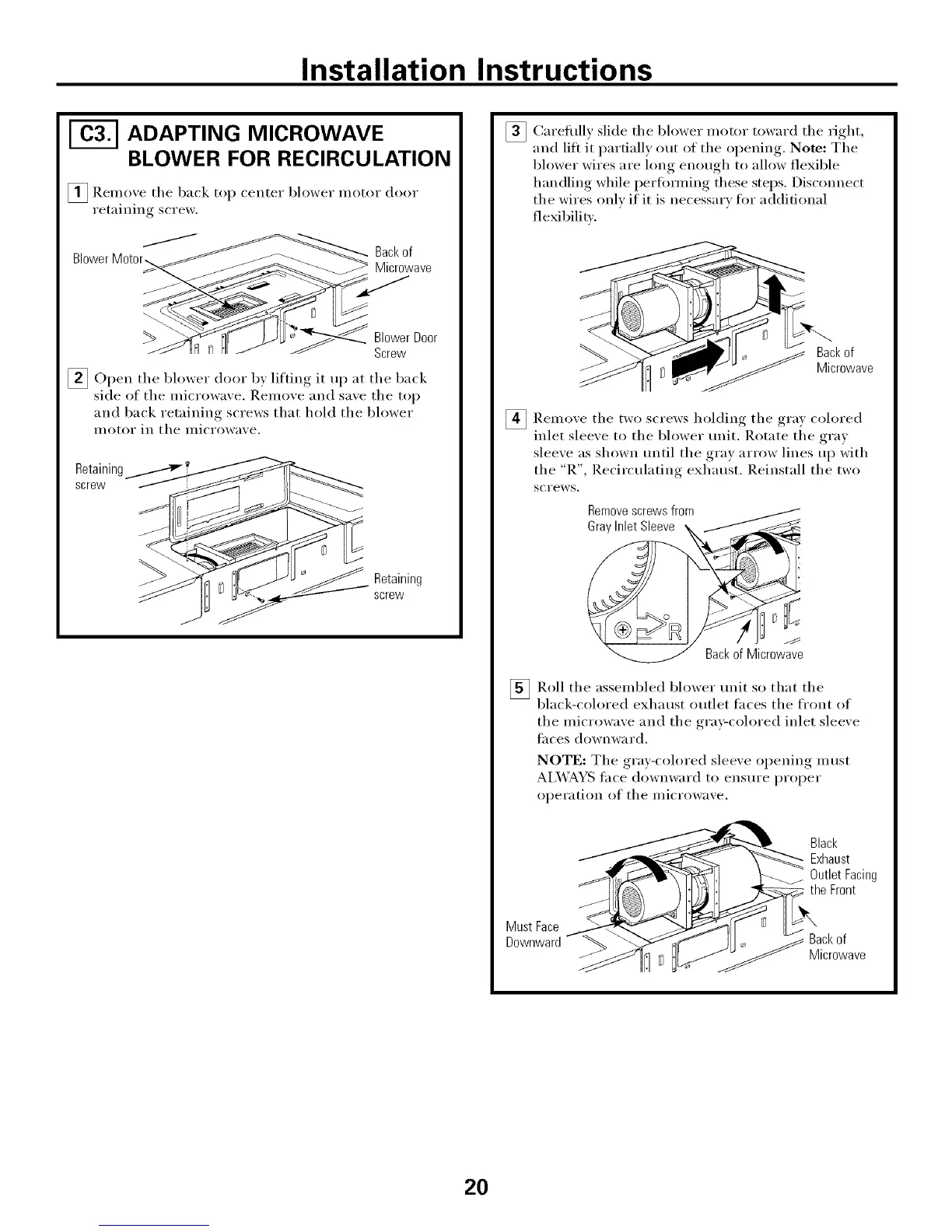

Installation Instructions
ADAPTING MICROWAVE
BLOWER FOR RECIRCULATION
_ RelllO_e tile back top center blower illOtoF (]ooI"
retaining screw.
J
Blower Motor-- Back of
Microwave
Blower Door
Screw
_Open the blower door b) lifting it up at the back
side of the microwaxe, Remo'_e and saxe the top
and back retaining screws that hold the blower
IllOtoI" in the illiCi'Owa_e,
Retaining
screw
Retaining
screw
_ Carefiflly slide the blower motor toward the right,
and lift it partially out of the opening. Note: The
blower wires are long enough to allow flexible
handling while perfimning these steps, Discmmect
the wires OlflV if it is necessary fl)i" additional
flexibility,
Backof
Microwave
_ Remo_e the two screws holding the o-ra_ colored
inlet sleeve to the blower unit, Rotate the gra)
slee'_e as shown tmtil the _ora_, arrow lines up with
the "R", Recirculating exhaust. Reinstall the two
scYews.
Remove screws from
Gray Inlet Sleeve XxJ_
_Roll the assembled blower trait so that the
black-colored exhaust outlet faces the fl'ont of
the microwave and the gra)_colored inlet sleeve
taces downward,
o " ' ( ( _ ,
NOTE: The gra_-c _1_red sleeve o )ening must
AI)'_YS tace downward to ensure proper
operation of the i/lici'owa_e,
Must Face
Dc
Black
Exhaust
Outlet Facing
the Front
Backof
Microwave
2O
