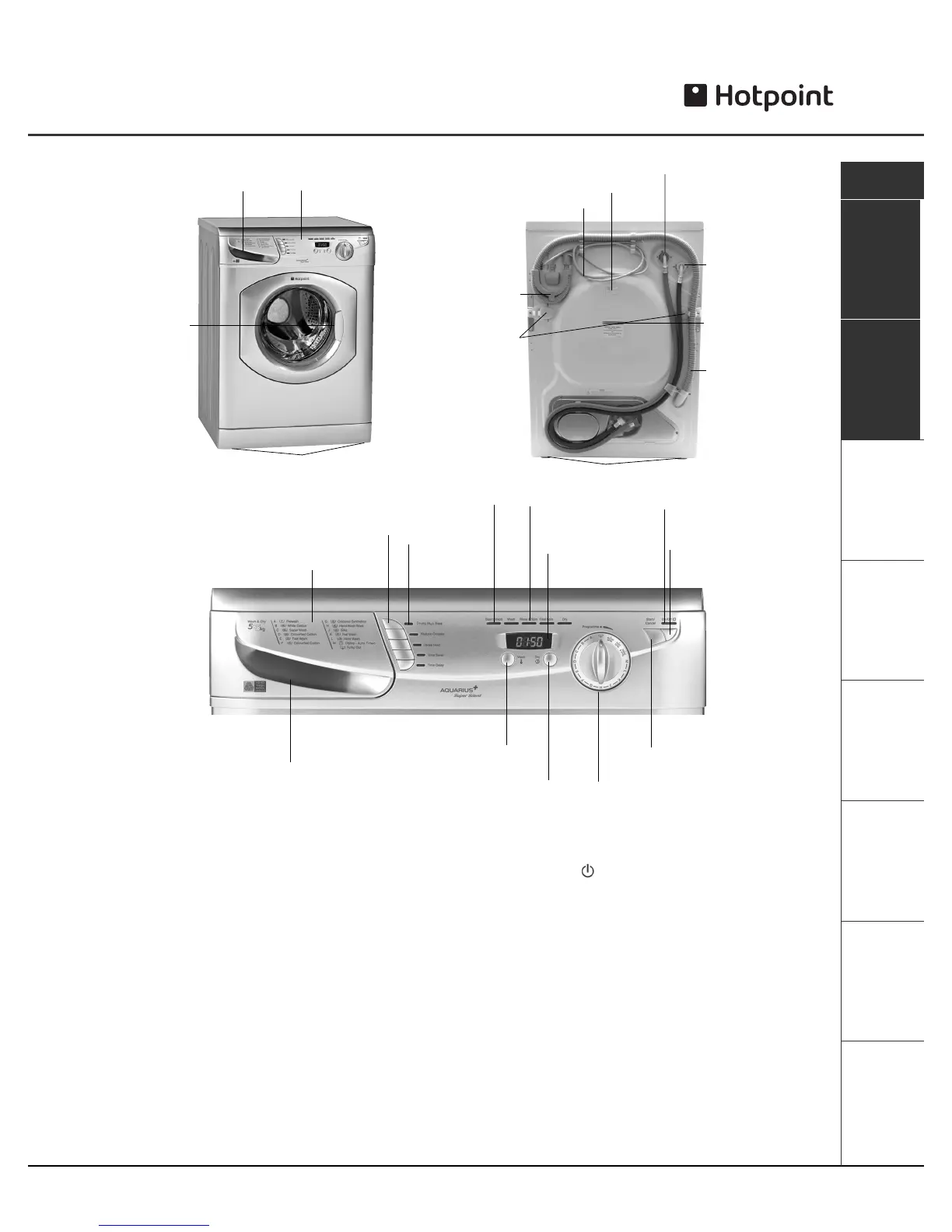

Washer Dryer Description
4
Control panel
WASH TEMPERATURE button: To reduce the selected
programmes wash temperature (see Starting and
Programmes).
ON/OFF button: To turn the machine on and off.
ON/OFF light: Signals that the machine is in use or
ready to select a programme
START/CANCEL button: To start the programme or
cancel any incorrect settings.
DOOR LOCKED Indicator light: When lit your selected
programme is in progress and the door cannot be
opened. The door can be opened when the programme
has finished and this light has switched off.
This light will also flash to indicate the door has not
been shut properly.
PROGRAMME dial: To select the programme you
require. The knob stays still during the cycle.
Detergent dispenser: To add detergent and fabric
softener (see Detergents and Laundry).
Programme listing: To consult a straightforward
chart of the different programmes available.
PROGRESS Indicator lights: To find out which cycle
phase is under way. The corresponding light for the
cycle in progress is illuminated.
DRYING TIMES button: To set the drying time.
OPTION buttons: To select the options available (see
Starting and Programmes).
OPTION lights: When an option is selected, the
corresponding light is illuminated.
PROGRESS
Indicator lights
Programme listing
OPTION
Buttons
OPTION
Lights
Detergent dispenser
WASH TEMPERATURE
Button
DRYING TIMES
Button
DOOR LOCKED
Indicator light
PROGRAMME SELECTOR
Dial
ON/OFF
Button
DISPLAY
ON/OFF
Light
START/CANCEL
Button
The front The back
Hooked end
support
Two transit fixings,
located under yellow
plastic covers, one
either side of the rear
panel.
(! both must be
removed before
using your machine).
Mains cable
Hot water inlet point and
supplied hose
(Red or Grey end)
Cold water inlet
point and supplied
hose (Blue end)
Drainage Hose
Control Panel
Interlocking
door and
release lever
Front Adjustable Feet
Rating Plate
Plumbing
Indicator Line
Rear Feet
Dispenser Drawer
Installation
Description
Starting and
Programmes
Detergent and
Laundry
Precautions and
advice
Care and
Maintenance Troubleshooting Service
