1700 SERIES PRESSURE WASHER OPERATOR’S MANUAL
Hotsy 1700 • 97-6419 • Rev. 7/06
ITEM PART NO. DESCRIPTION QTY
1 70-020292 Crankcase 1
2* See Kits Below Plunger Oil Seal 3
3* 70-060181 O-Ring Ø1.78 x 28.30 3
4* 70-120131 Pressure Ring 15mm 3
5* See Kits Below "V" Seal, 15mm 6
6* 70-030048 Support Ring 15mm 6
7* 70-030049 Intermed. Ring 15mm 3
8 70-160120 Brass Plug 1/2" 1
9 70-060307 Copper Washer 1/2" 1
10 70-160228 Manifold Housing 1
11* 70-060155 O-Ring Ø1.78 x 15.54 6
12* See Kits Below Valve Assembly 6
13* 70-060122 O-Ring Ø2.62 x 18.77 6
14 70-160147 Valve Plug 6
ITEM PART NO. DESCRIPTION QTY
15 70-060308 Copper Washer 1/4 1
16 70-160121 Brass Plug G1/4 1
17 70-180118 Manifold Stud Bolt 8
18 70-140001 Washer 8
19 70-060306 Copper Washer 3/8 1
20 70-160117 Brass Plug 3/8 2
25 70-180112 Screw 12
26 70-020318 Bearing Cover 2
27 70-020502 Bearing Seal 1
28 70-150003 Snap Ring 1
29 70-021300 Ball Bearing 2
30 70-000605 Crankshaft 1
31 70-020604 Crankshaft Key 1
32 70-160012 Oil Dipstick 1
TORQUE
SPECS
Item # Ft.-lbs
14 65
17 22
25 8
34 9
43 13

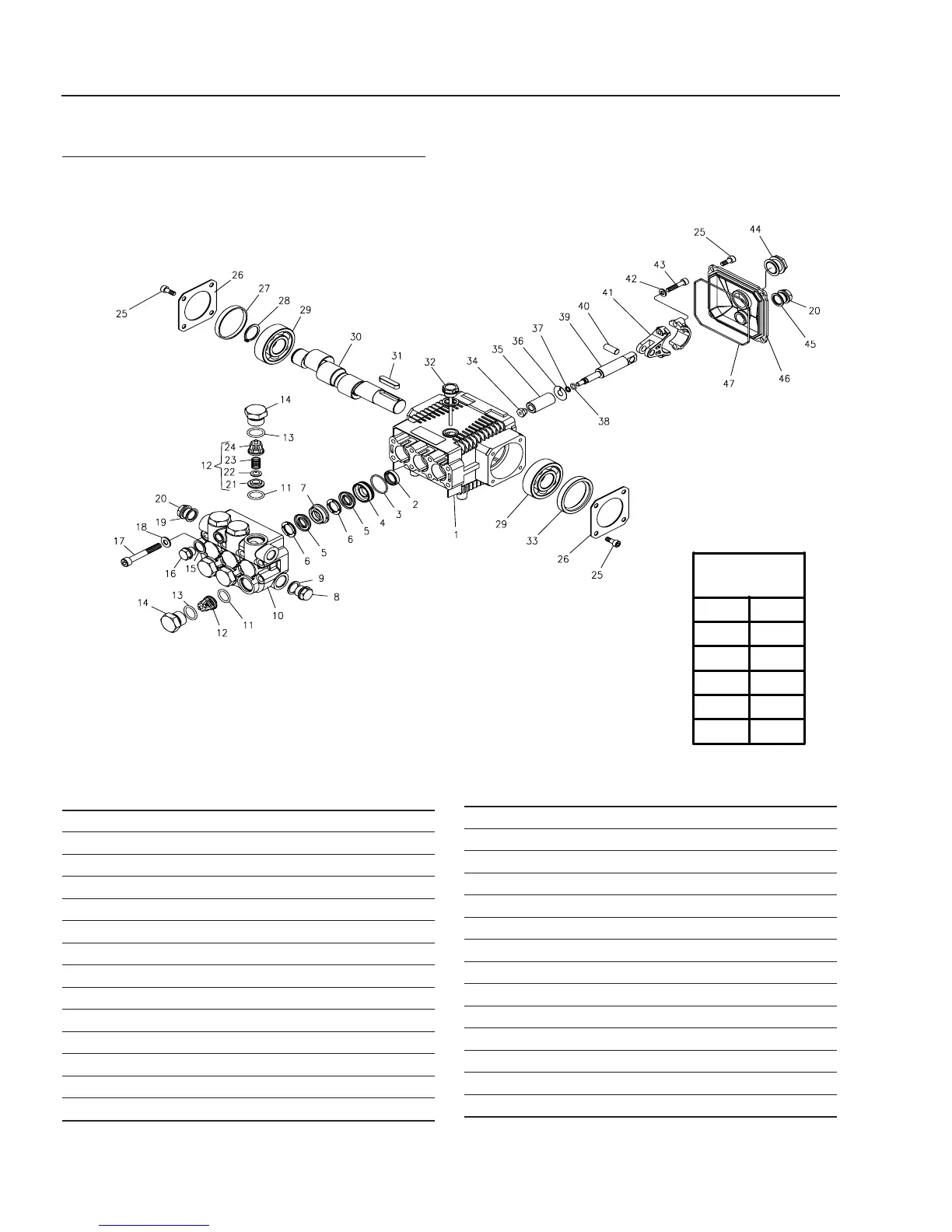

EXPLODED VIEW AND PARTS LIST
5-1206 HD 3030H
