1700 SERIES PRESSURE WASHER OPERATOR’S MANUAL
Hotsy 1700 • 97-6419 • Rev. 7/06
ITEM PART NO. DESCRIPTION QTY
1 827325 Crankcase 1
2 860360 Plunger Guide 3
3* 926652 Plunger Oil Seal 3
4* 926659 "O" Ring Ø1.78 x 37.82 3
5* 70-000235 "U" Seal (25 mm) 6
6* 70-120126 Pressure Ring (25 mm) 3
7* 70-030039 Support Ring (25 mm) 6
8* 70-030034 Intermed. Ring (25 mm) 3
9* 70-000926 Back Ring (25 mm) 3
10 830922 Brass Plug, 3/4" 1
11 70-060311 Copper Washer, 3/4" 1
12 783996 Manifold Housing 1
13* 814932 "O" Ring Ø2.62 x 25.7 6
14* 70-360450 Valve Assembly 6
15* 814931 "O" Ring Ø3.53 x 26.58 6
16 829939 Valve Plug 6
17 875634 Manifold Stud Bolt 8
18 780560 Washer 8
19 936932 Copper Washer, 1/2" 1
20 70-160120 Brass Plug, 1/2" 1
21 70-150319 Valve Seat 6
22 70-150319 Valve Plate 6
23 70-090032 Valve Spring 6
ITEM PART NO. DESCRIPTION QTY
24 70-060406 Valve Cage 6
25 735314 Hexagonal Screw 8
26 780560 Washer 8
27 615374 Closed Bearing Housing 1
28 867750 Bearing Housing 1
29 926649 "O" Ring Ø2.62 x 71.12 2
30 926651 Crankshaft Seal 1
31 630930 Roller Bearing 2
32 753100 Crankshaft 1
33 835280 Crankshaft Key 1
34 944784 Oil Dip Stick 1
35 612690 Shim 1
36* 944780 Plunger Bolt 3
37* 926654 Copper Spacer 3
38* 926684 "O" Ring Ø1.78 x 10.82 3
39* 941767 Teflon Ring 3
40* 944781 Plunger (25 mm) 3
41* 829931 Copper Spacer 3
42 928640 Plunger Rod 3
43 914138 Connecting Rod 3
44 70-180101 Connecting Rod Pin 3
45 926691 Connecting Rod Screw 6
46 936933 Snap Ring 6

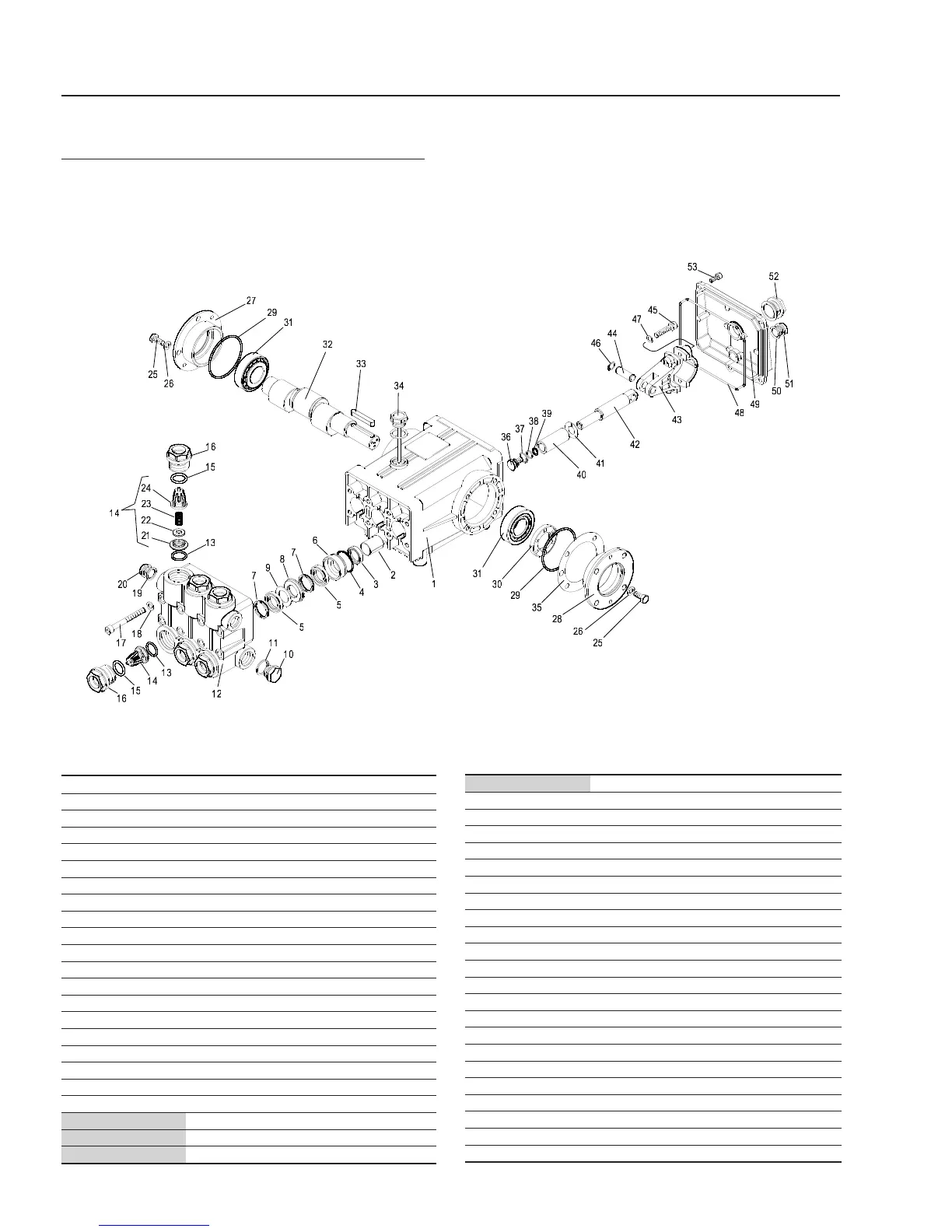

EXPLODED VIEW AND PARTS LIST
5-1867 HC950A
