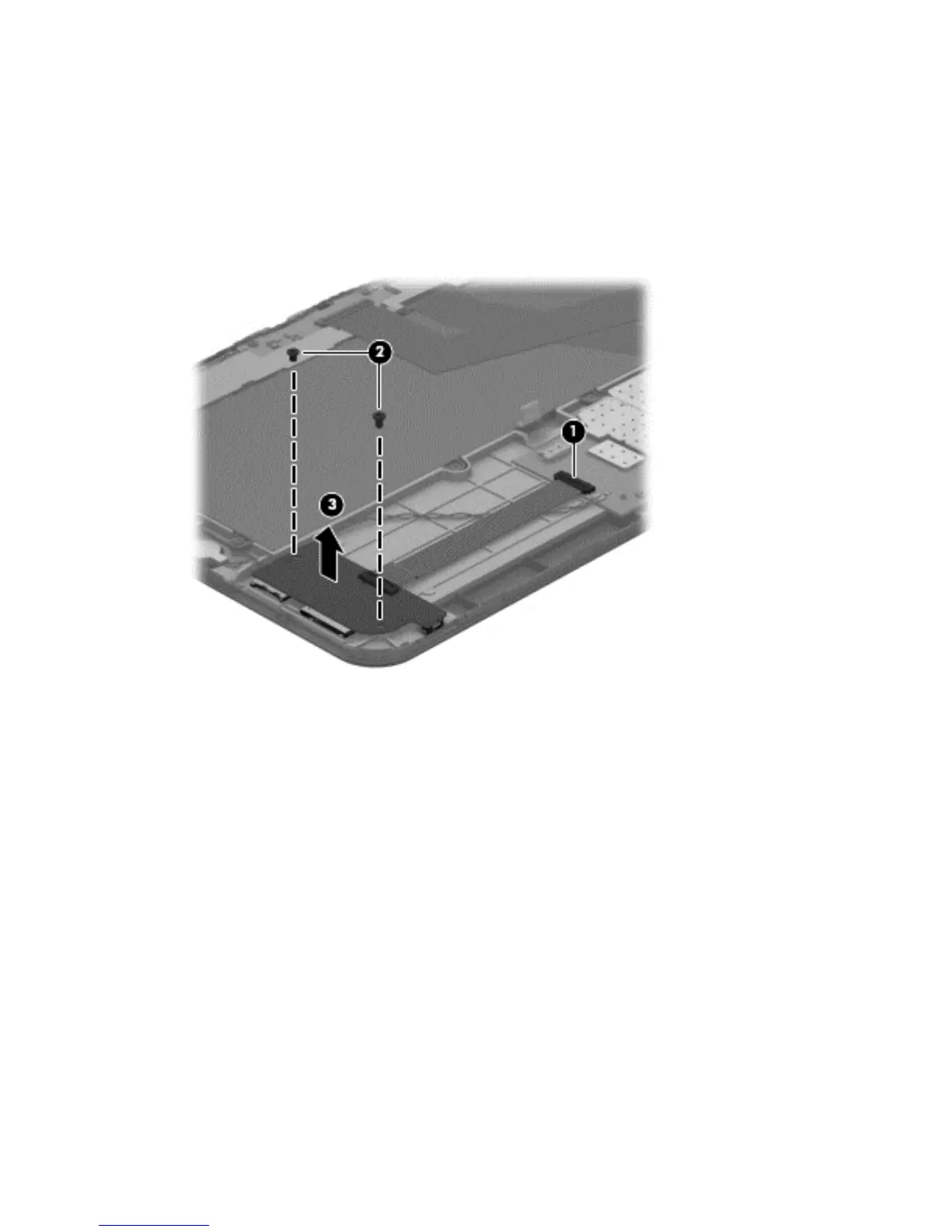

Remove the power button board:
1. Release the ZIF connector (1) to which the power button board cable is connected, and then
disconnect the power button board cable from the system board.
2. Remove the two Phillips PM2.0×2.75 screws (2) that secure the power button board to the display
panel assembly.
3. Remove the power button board (3) and cable.
Reverse this procedure to install the power button board.
18 Chapter 5 Removal and replacement procedures
