HP 100B SFF

90

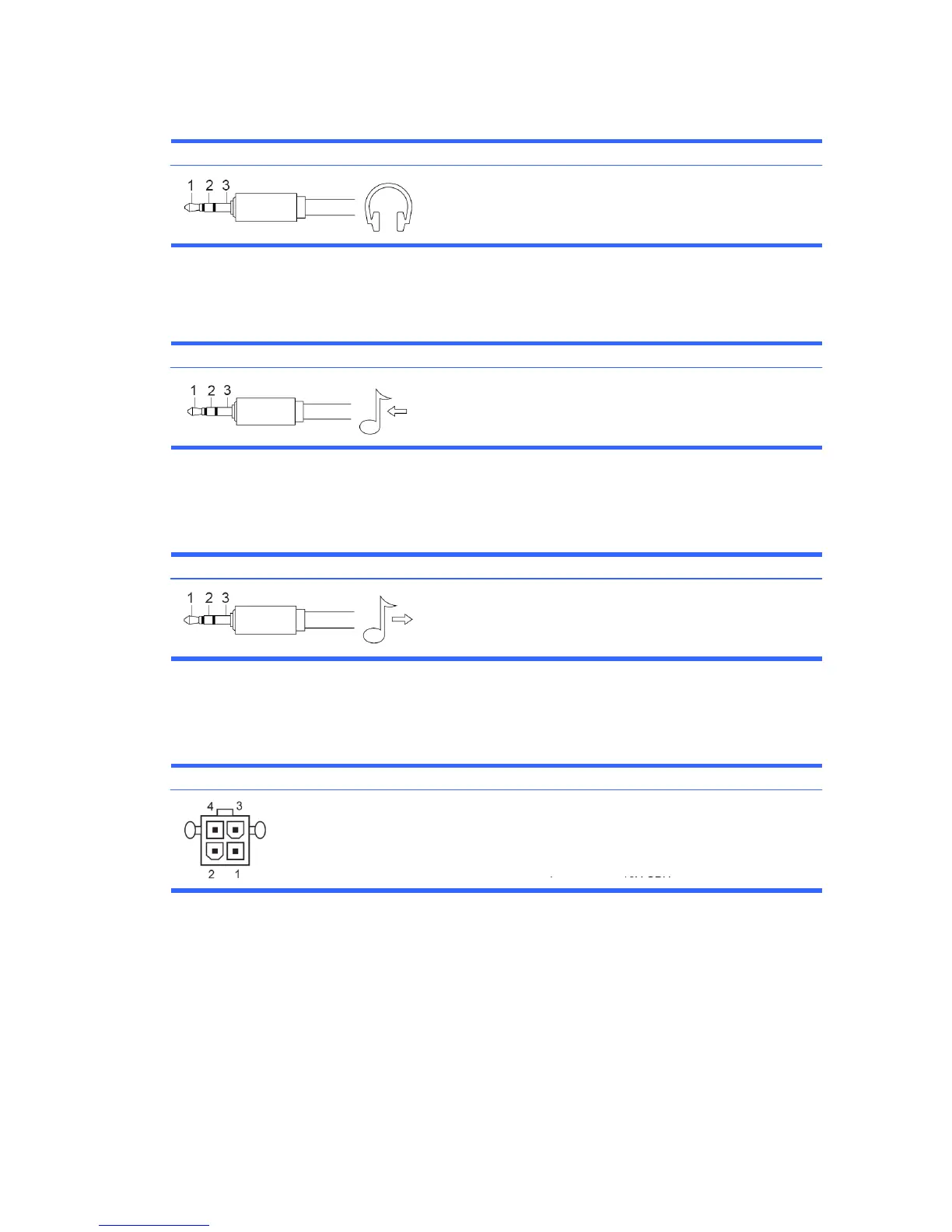

Headphone
Connector and Icon (1/8” miniphone) Pin Signal
Line-in Audio
Connector and Icon (1/8” miniphone) Pin Signal
Line-out Audio
Connector and Icon (1/8” miniphone) Pin Signal
4-Pin Power (for CPU)
Connector and Icon Pin Signal
1 (Tip) Audio_left
2 (Ring) Power_Right
3 (Shield) Ground
1 (Tip) Audio_In_Left
2 (Ring) Audio_In_Right
3 (Shield) Ground
1 (Tip) Audio_Out_Left
2 (Ring) Audio_Out_Right
3 (Shield) Ground
1 GND
2 GND
3 +12V CPU
4 -12V CPU
