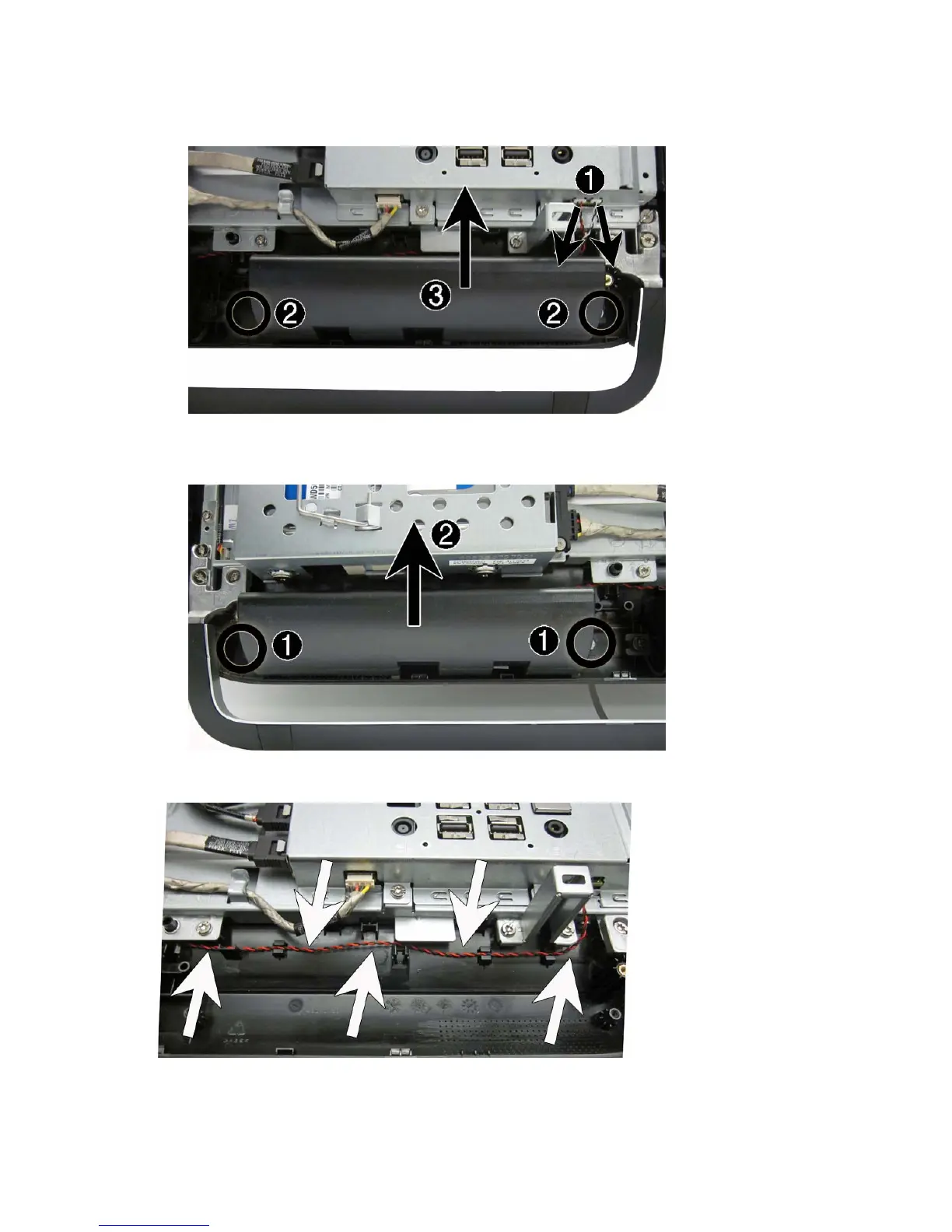

4. Remove two screws (2) that secure the left speaker to the computer, and then lift the speaker
from the computer (3).
5. Remove two screws (1) that secure the right speaker to the computer, and then lift the speaker
from the computer (2).
Use the following image to determine correct routing for the speaker cables.
To install the speakers, reverse the removal procedures.
54 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
