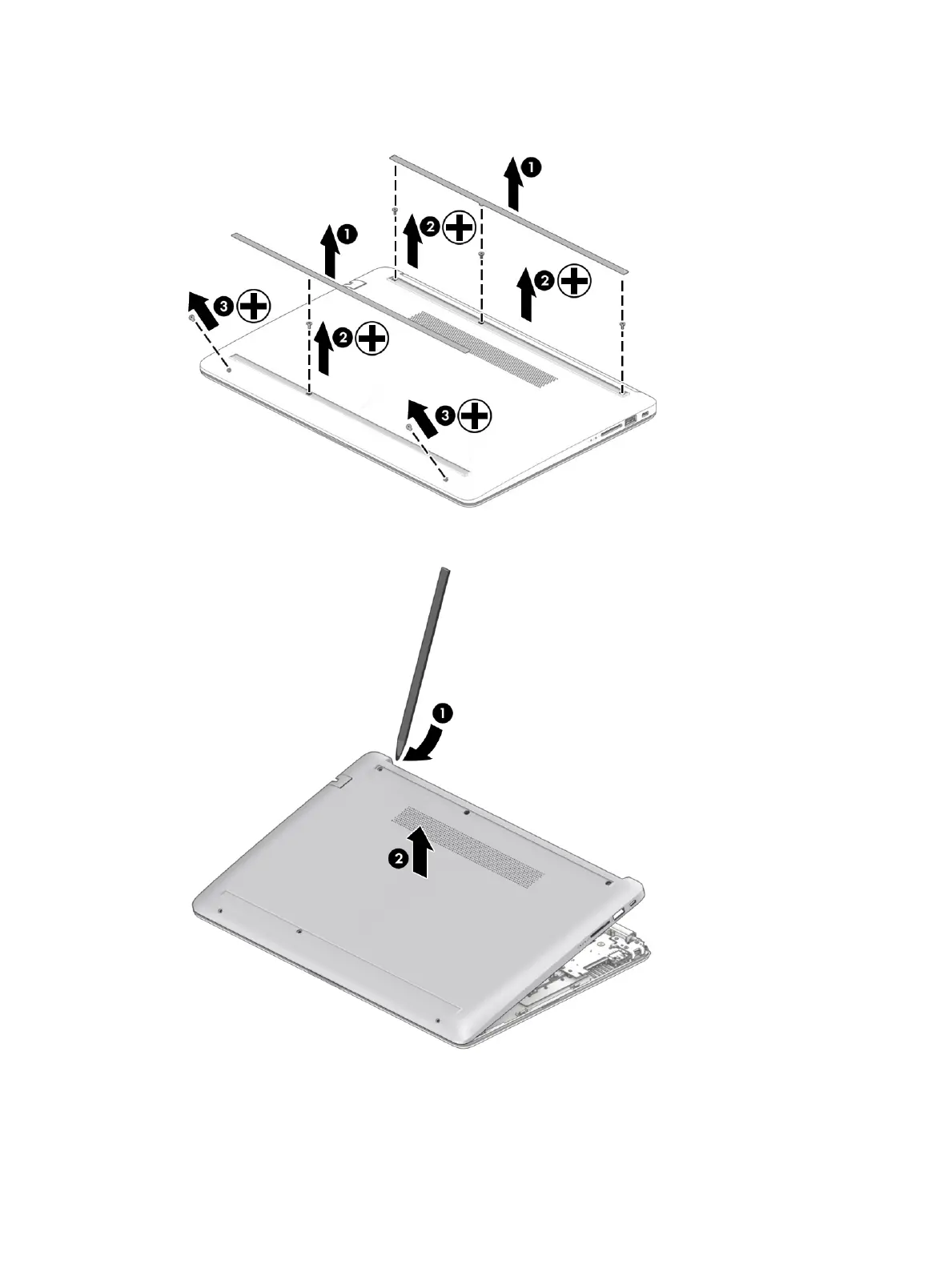

2. Remove the three black Phillips M2.5×6.0 screws (2) from under the rubber feet and the two silver
Phillips M2.5×6.0 screws (3) from the bottom corners of the bottom cover.
3. Starting near the power connector, use a plastic tool (1) to pry the bottom cover up to remove it (2).
Reverse this procedure to install the bottom cover.
30 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
