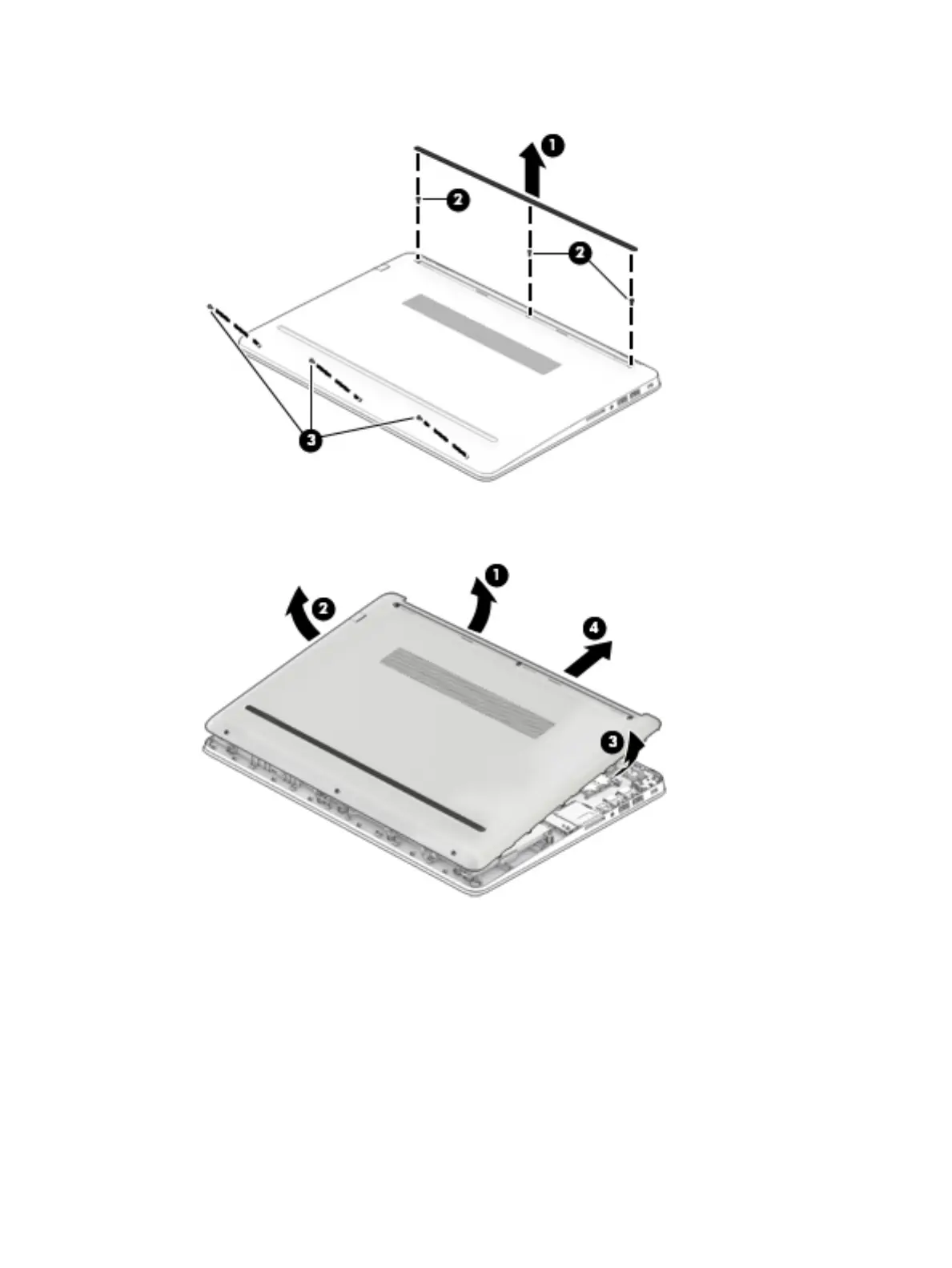

4. Remove the three remaining Phillips PM2.0×5.0 screws (3).
5. Start prying along the bottom edge of the computer (1), then along the left (2) and right (3) sides, and
then remove the bottom cover (4).
Reverse this procedure to install the bottom cover.
Component replacement procedures 33
