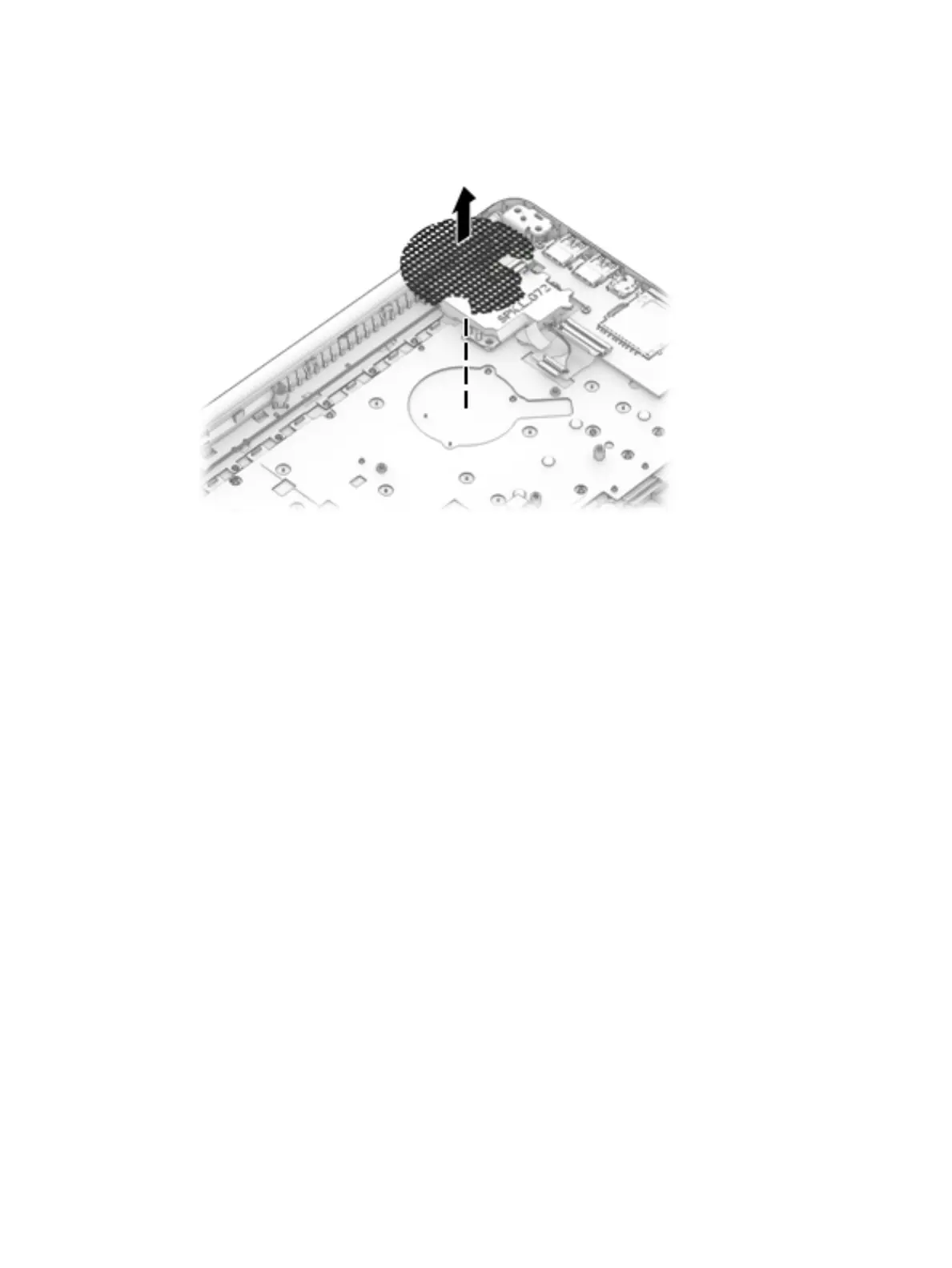

4. Fan mesh is installed under the top cover/keyboard assembly to lter dust from the computer. The mesh
is secured with double-sided tape. If it is necessary to replace the mesh, lift the mesh and remove it
from the top cover. The mesh comes with adhesive pre-installed and is available using spare part
number 938253-001. To install the mesh, press it into place until secure.
Reverse this procedure to install the fan.
Component replacement procedures 43
