d. Remove the tape from the enclosure (3). Replacement cameras come with tape already installed.

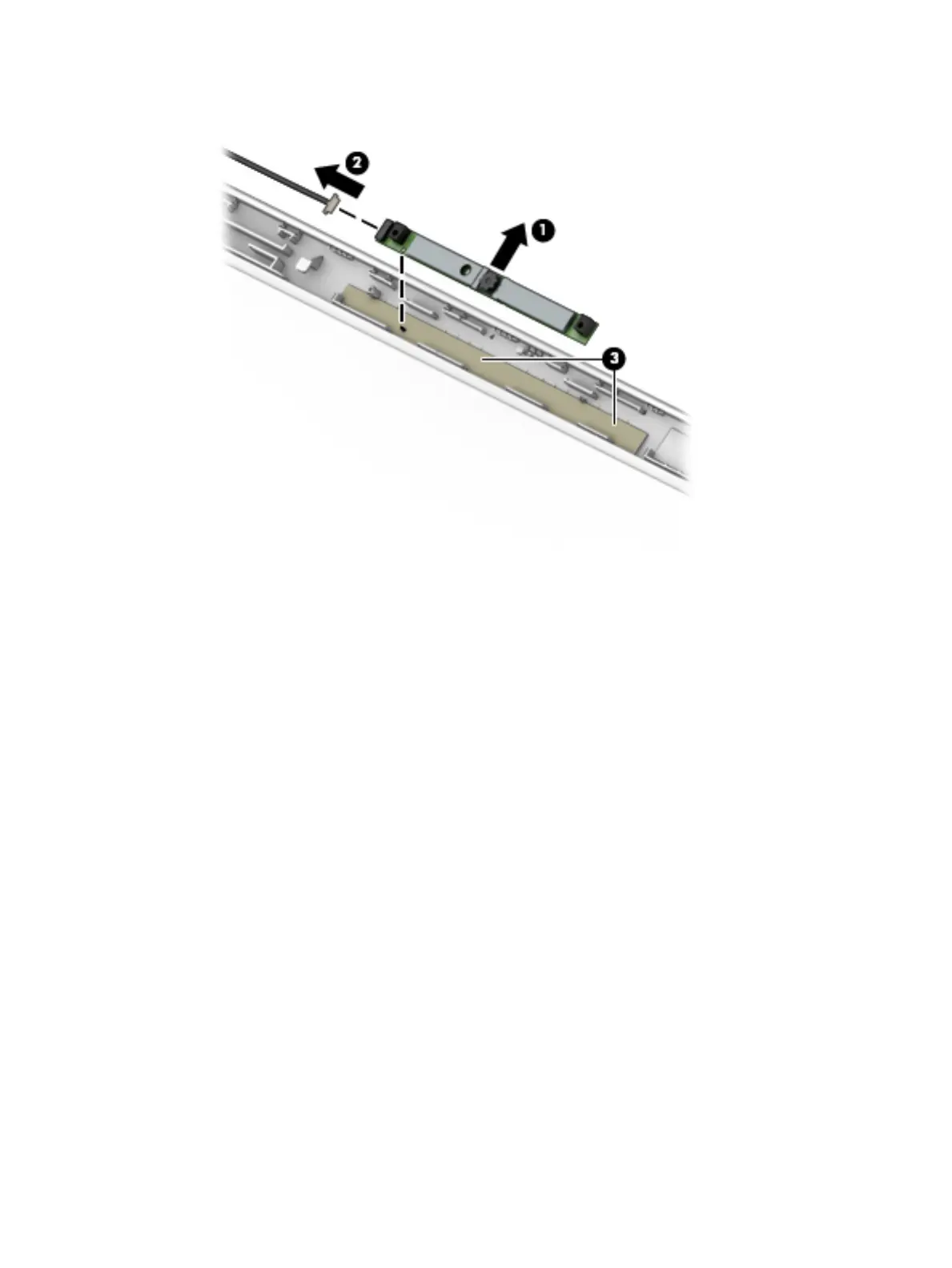

3. To remove the infrared (IR) camera/microphone module:
IR webcam
a. Position the display assembly with the top edge toward you.
b. Pry up to disengage the camera/microphone module from the adhesive that secures it to the
display (1).
c. Disconnect the cables from the right side of the camera (2) and the left side of the camera (3).
60 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
