a. Remove the display bezel.

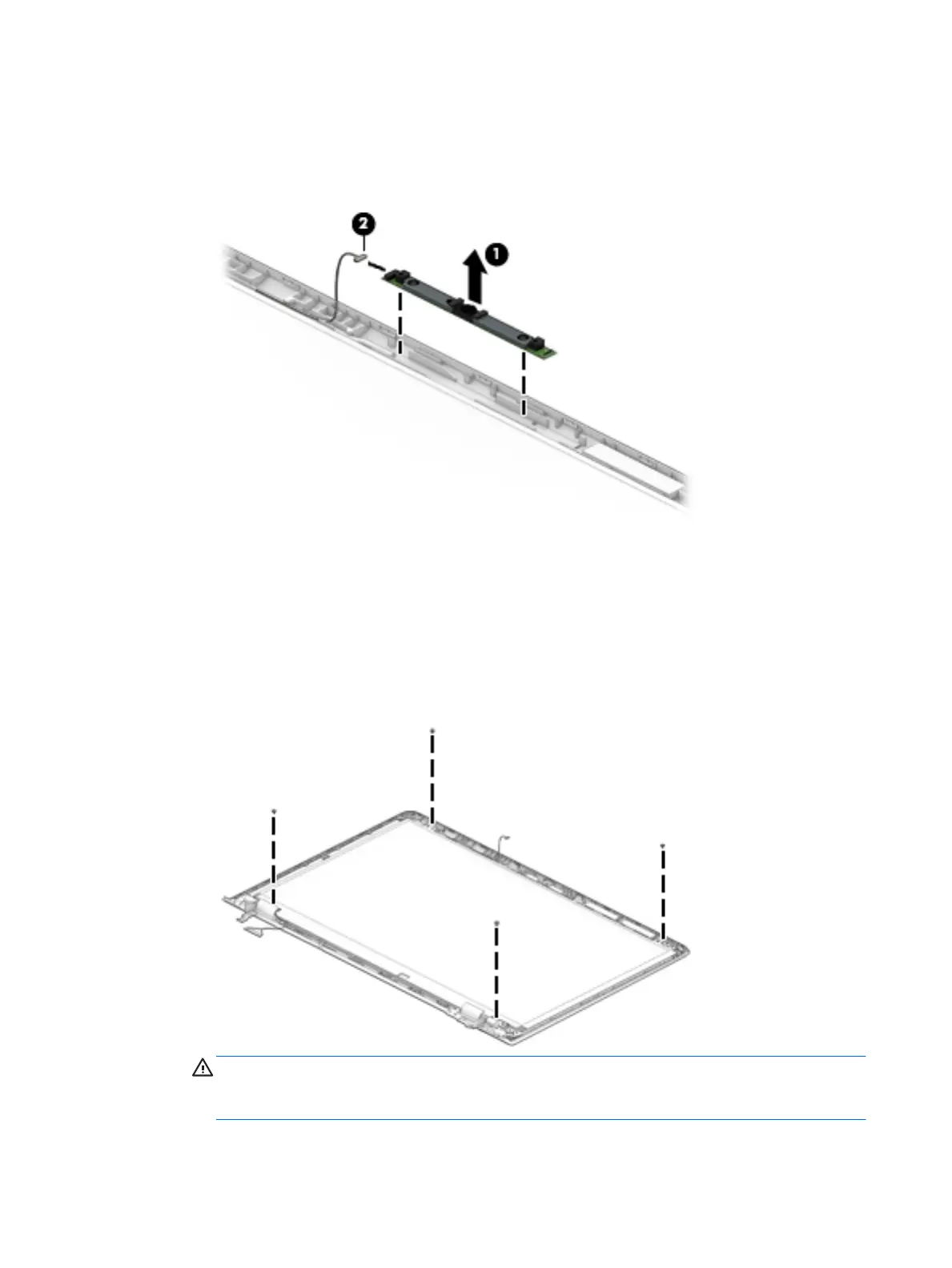

b. Detach the webcam/microphone module (1) from the display back cover. (The webcam/
microphone module is attached to the display back cover with double-sided adhesive.)
c. Disconnect the webcam/microphone module cable (2) from the webcam/microphone module.
d. Remove the webcam/microphone module.
The webcam/microphone module is available using spare part numbers 926727-001 (FHD infrared
webcam/microphone module) and 919573-004 (HD non-infrared webcam/microphone module).
11. If it is necessary to replace the display panel:
a. Remove the display bezel.
b. Remove the four Phillips PM2.0×2.9 screws that secure the display panel to the display back cover.
CAUTION: Before turning the display panel upside down, make sure the work surface is clear of
tools, screws, and any other foreign objects. Failure to follow this caution can result in damage to
the display panel.
60 Chapter 5 Removal and replacement procedures
