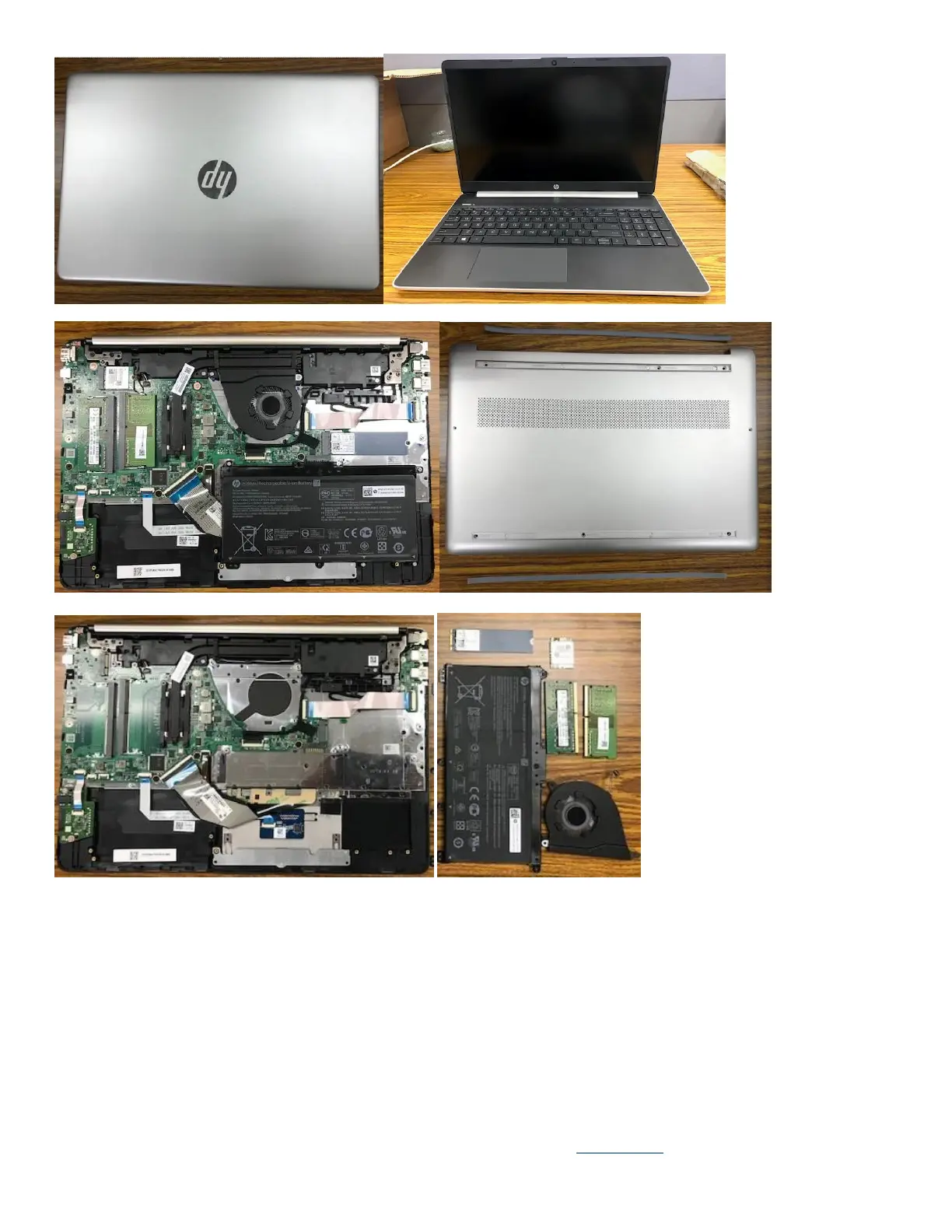

3.22 Remove front / rear side rubber , base screw*8 and base sub assy.
3.23 Remove battery, SSD, fan, Wlan card，RAM card*2
3.24 Remove L/R speaker ,TP module , USB board , Audio board ,M/B，DC cable
