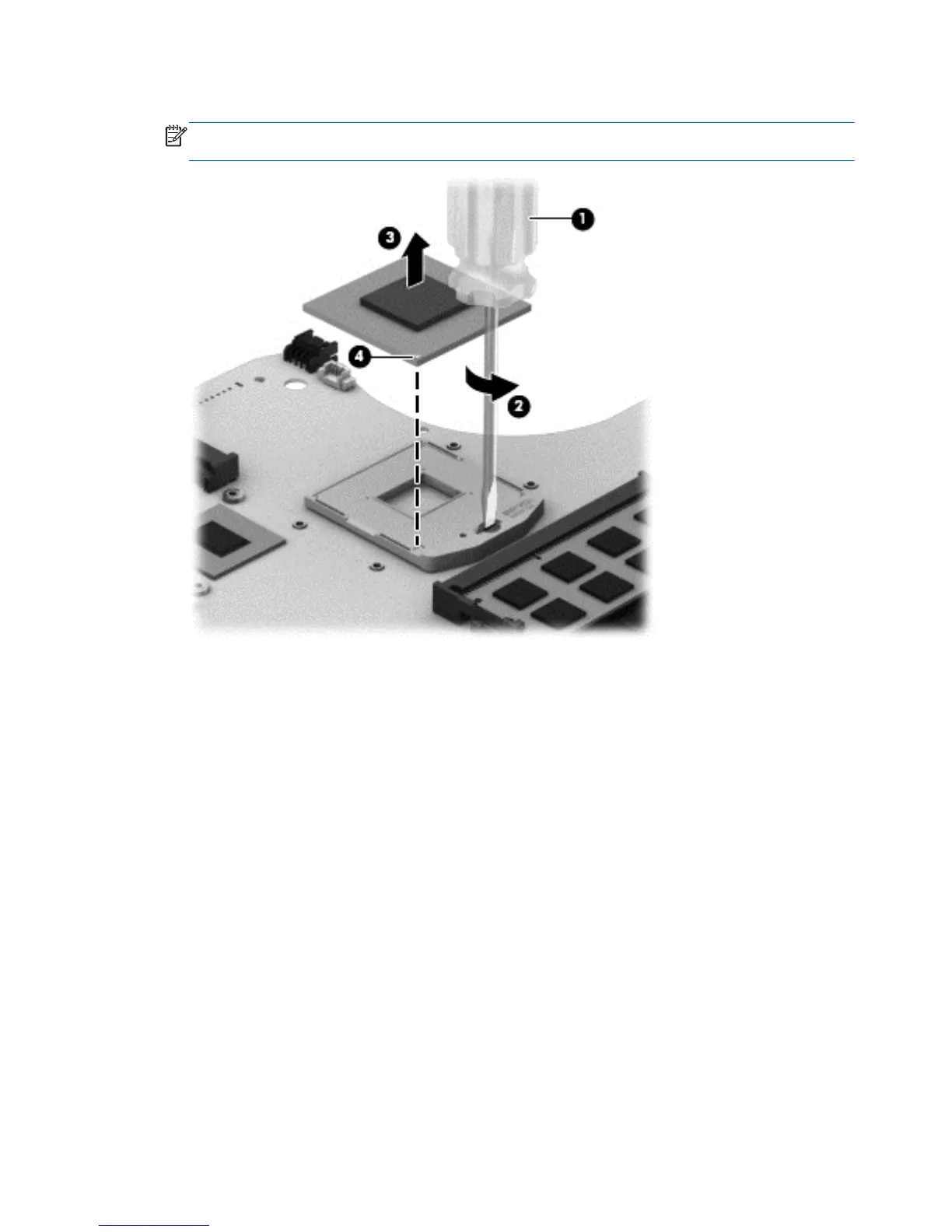

3. Lift the processor (3) straight up, and then remove it.
NOTE: The gold triangle (4) on the processor must be aligned with the triangle icon embossed on the
processor socket when you install the processor.
Reverse this procedure to install the processor.
96 Chapter 4 Removal and replacement procedures
