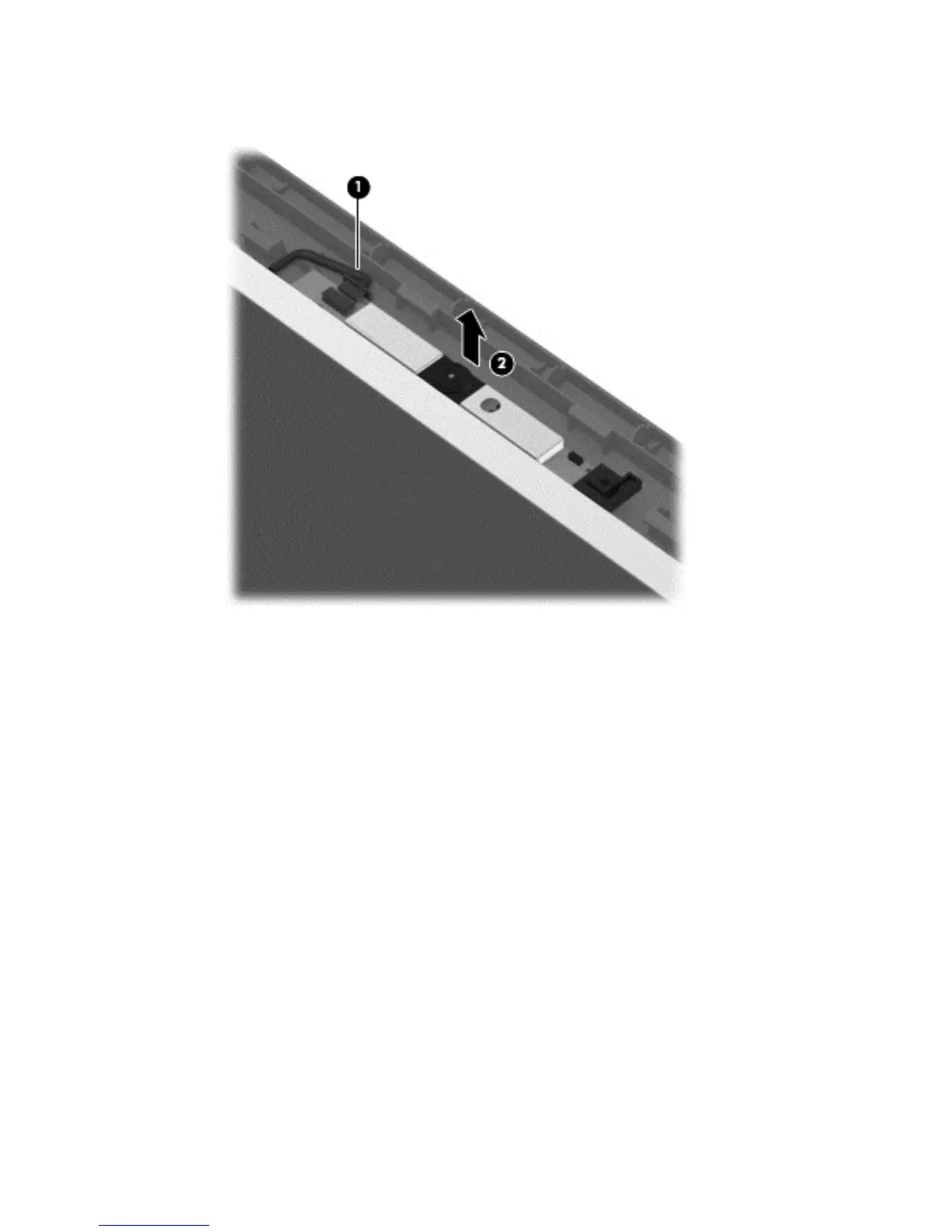

c. Lift to disengage the adhesive that secures the webcam/microphone module to the display, and
then remove the module (2).
6. To remove the display panel:
a. Remove the six Phillips PM2.5×4.0 screws (1) that secure the display panel to the enclosure, and
then rotate the display panel and hinges forward to gain access to the hinge screws (2).
52 Chapter 4 Removal and replacement procedures
