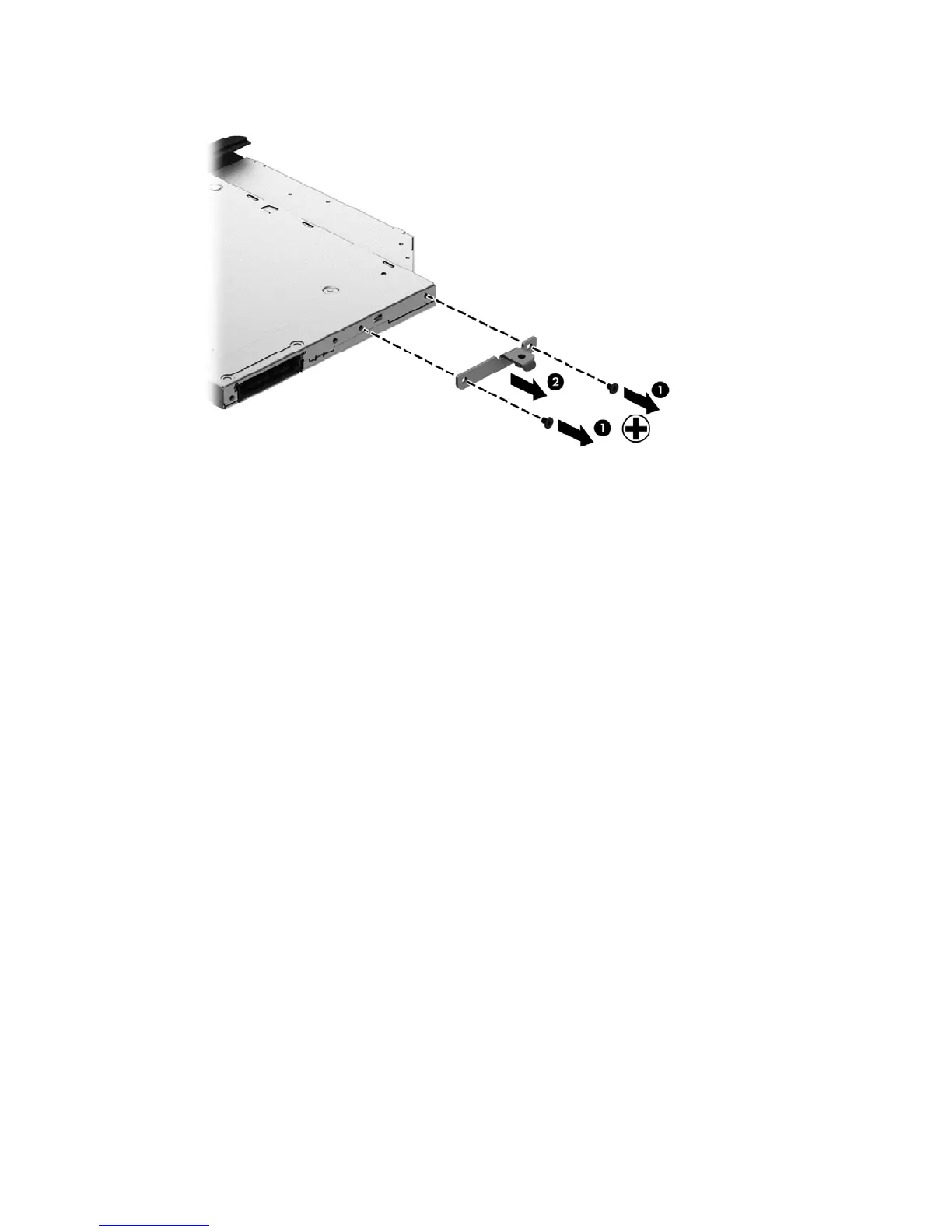

6. Remove the optical drive bracket (2).

Reverse this procedure to reassemble and install the optical drive.

Component replacement procedures 57
