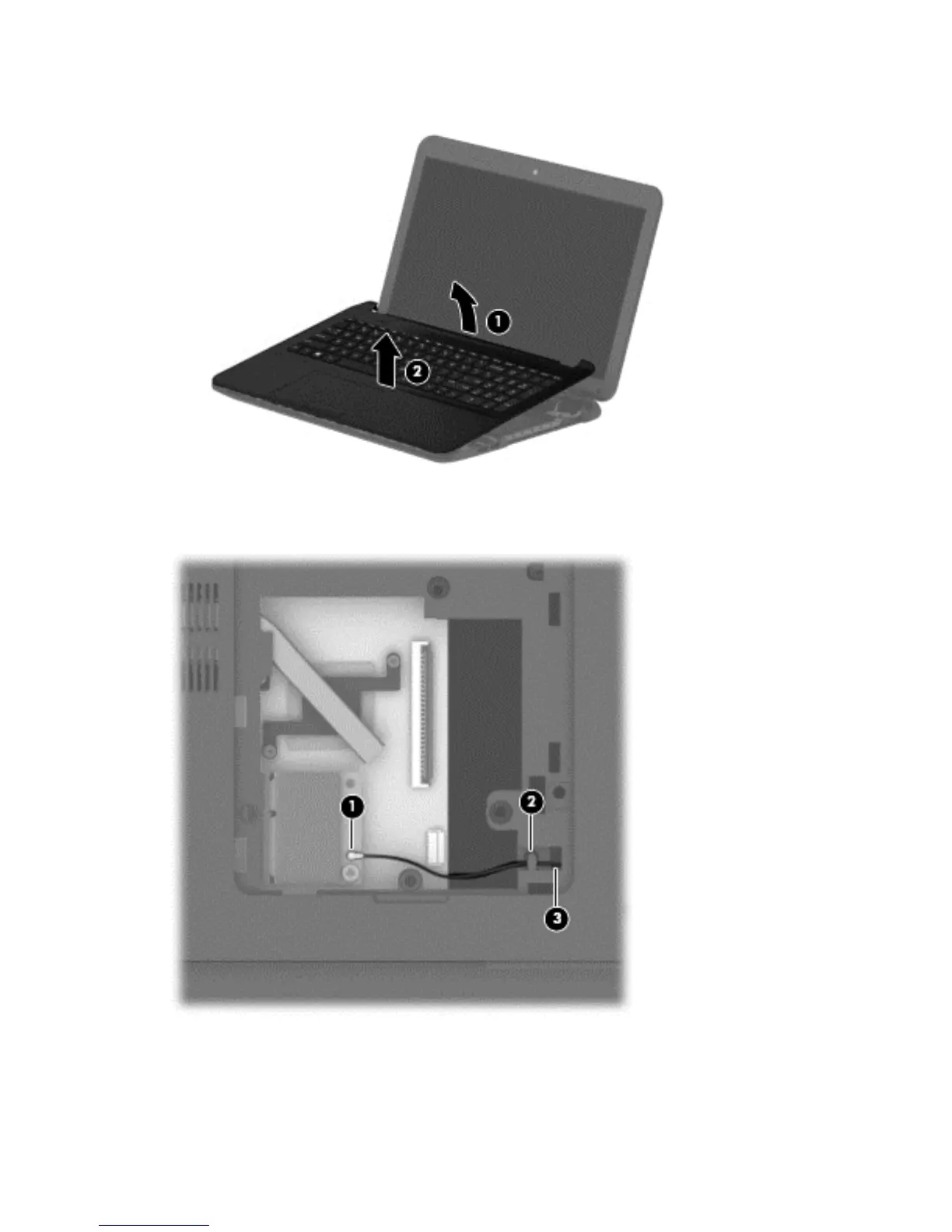

6. Remove the top cover (2).

Reverse this procedure to install the top cover/keyboard.

Note the antenna routing path on the bottom of the computer when reassembling the computer.

Component replacement procedures 67
