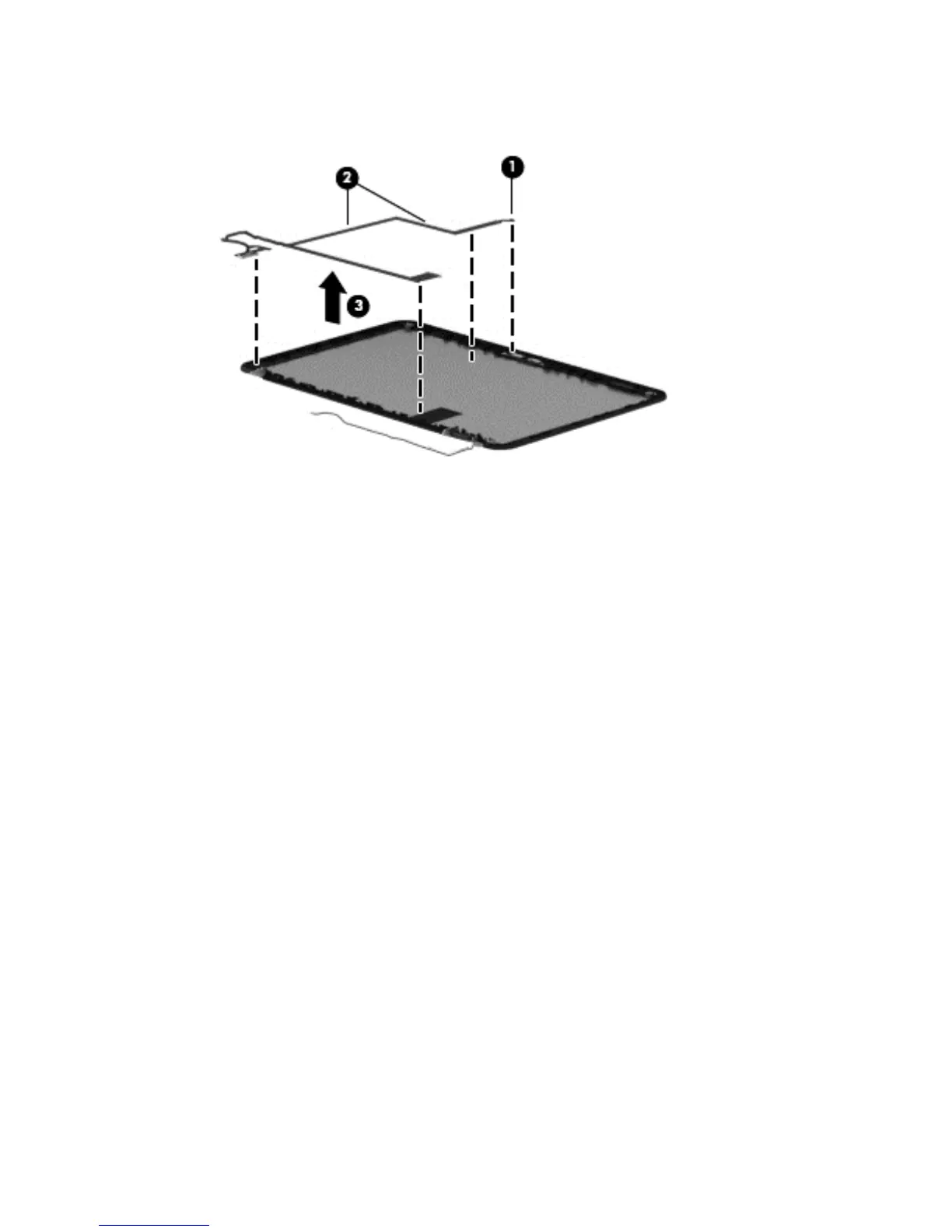

6. To remove the display/webcam cable, release the webcam connector (1), webcam cable (2), and display
cable (3) from the routing path built into the display enclosure.
7. If replacing the display enclosure, be sure that the other subcomponents (including the webcam/
microphone module, the antenna receivers, and all associated cables and hardware) are transferred to
the new enclosure.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 77
