HP 15

To Next Page

To Previous Page

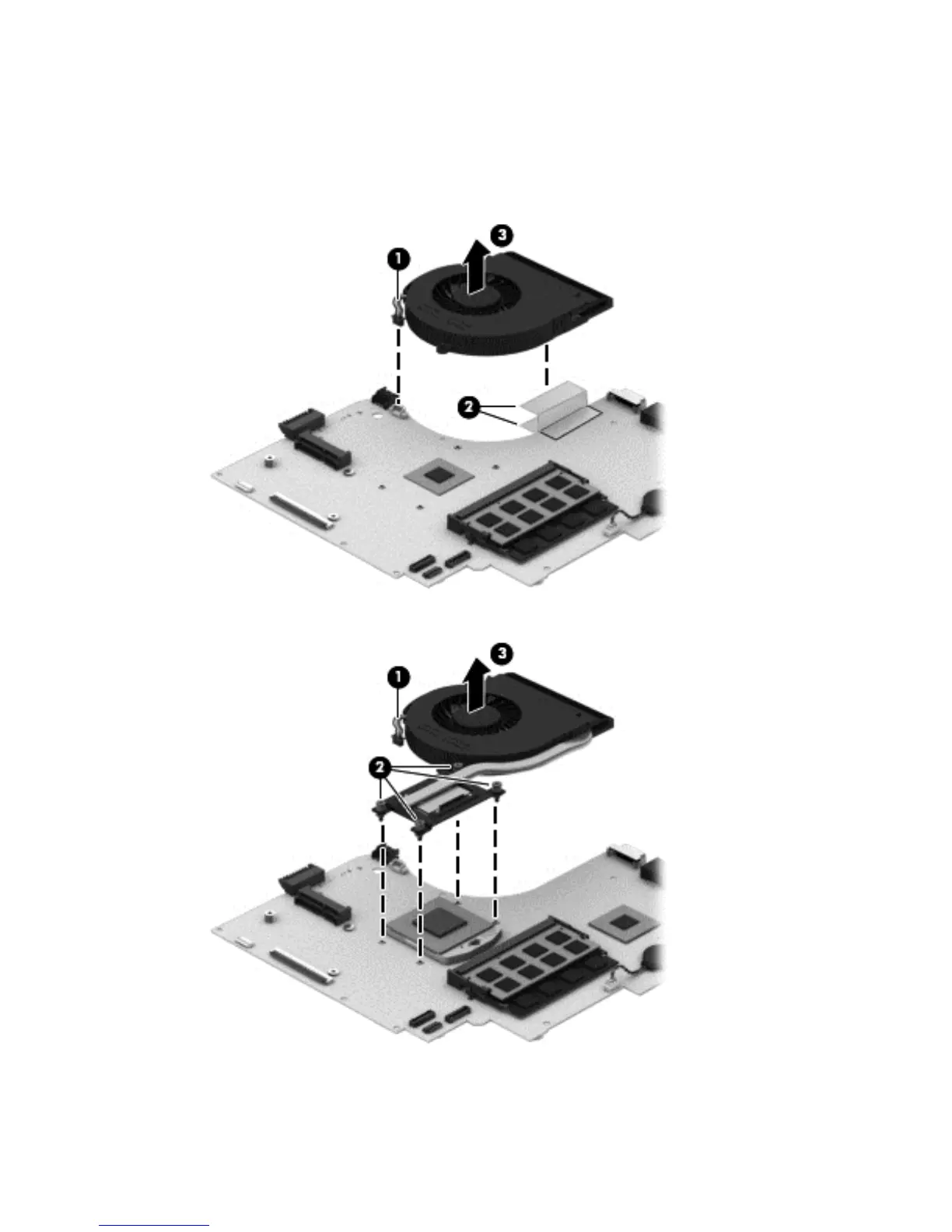

Remove the fan:

a. Disconnect the fan cable (1) from the system board.

b. Remove the fan from the clip on the system board (2).

c. Remove the fan (3).

Intel processor and UMA graphics (not Bay Trail)

Intel processor and discrete graphics (not Bay Trail)

Component replacement procedures 89

Main Page
