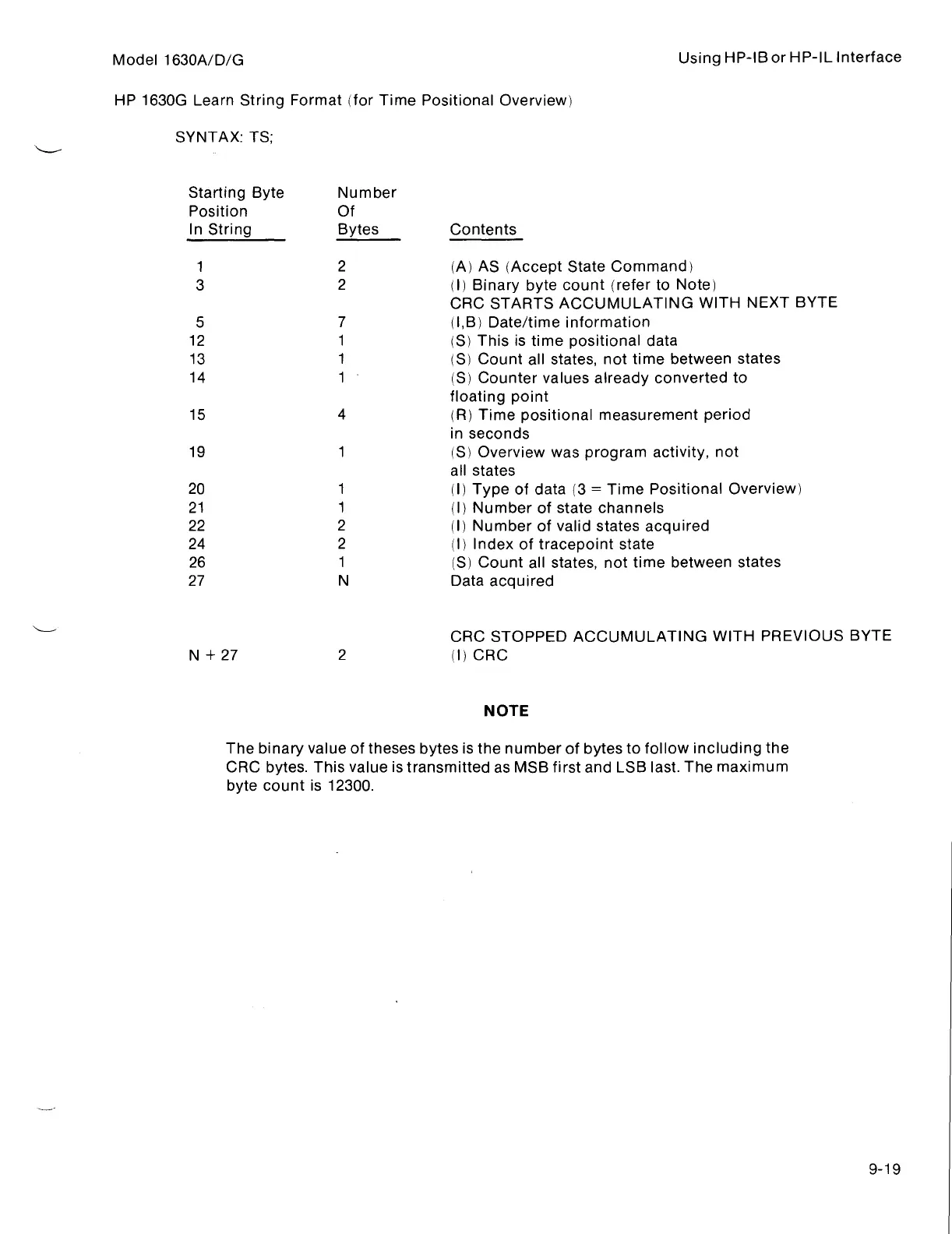

Model
1630A/D/G

Using
HP-I13
or
HP-IL
Interface
HP
1630G
Learn
String
Format
(for
Time
Positional
Overview)
SYNTAX
:
TS
;
Starting
Byte

Number
Position
Of
In
String

Bytes

Contents
NOTE
The
binary
value
of
theses
bytes
is
the
number
of
bytes
to
follow
including
the
CRC
bytes
.
This
value
is
transmitted
as
MSB
first
and
LSB
last
.
The
maximum
byte
count
is
12300
.
1
2
(A)
AS
(Accept
State
Command)
3
2
(I)
Binary
byte
count
(refer
to
Note)
CRC
STARTS
ACCUMULATING
WITH
NEXT
BYTE
5
7
(I,B)
Date/time
information
12
1
(S)
This
is
time
positional
data
13
1
(S)
Count
all
states,
not
time
between
states
14
1
(S)
Counter
values
already
converted
to
floating
point
15
4
(R)
Time
positional
measurement
period
in
seconds
19
1
(S)
Overview
was
program
activity,
not
all
states
20
1
(I)
Type
of
data
(3
=
Time
Positional
Overview)
21
1
(I)
Number
of
state
channels
22
2
(I)
Number
of
valid
states
acquired
24
2
(I)
Index
of
tracepoint
state
26
1
(S)
Count
all
states,
not
time
between
states
27
N
Data
acquired
CRC
STOPPED
ACCUMULATING
WITH
PREVIOUS
BYTE
N
+
27
2
(I)
CRC
125
127
