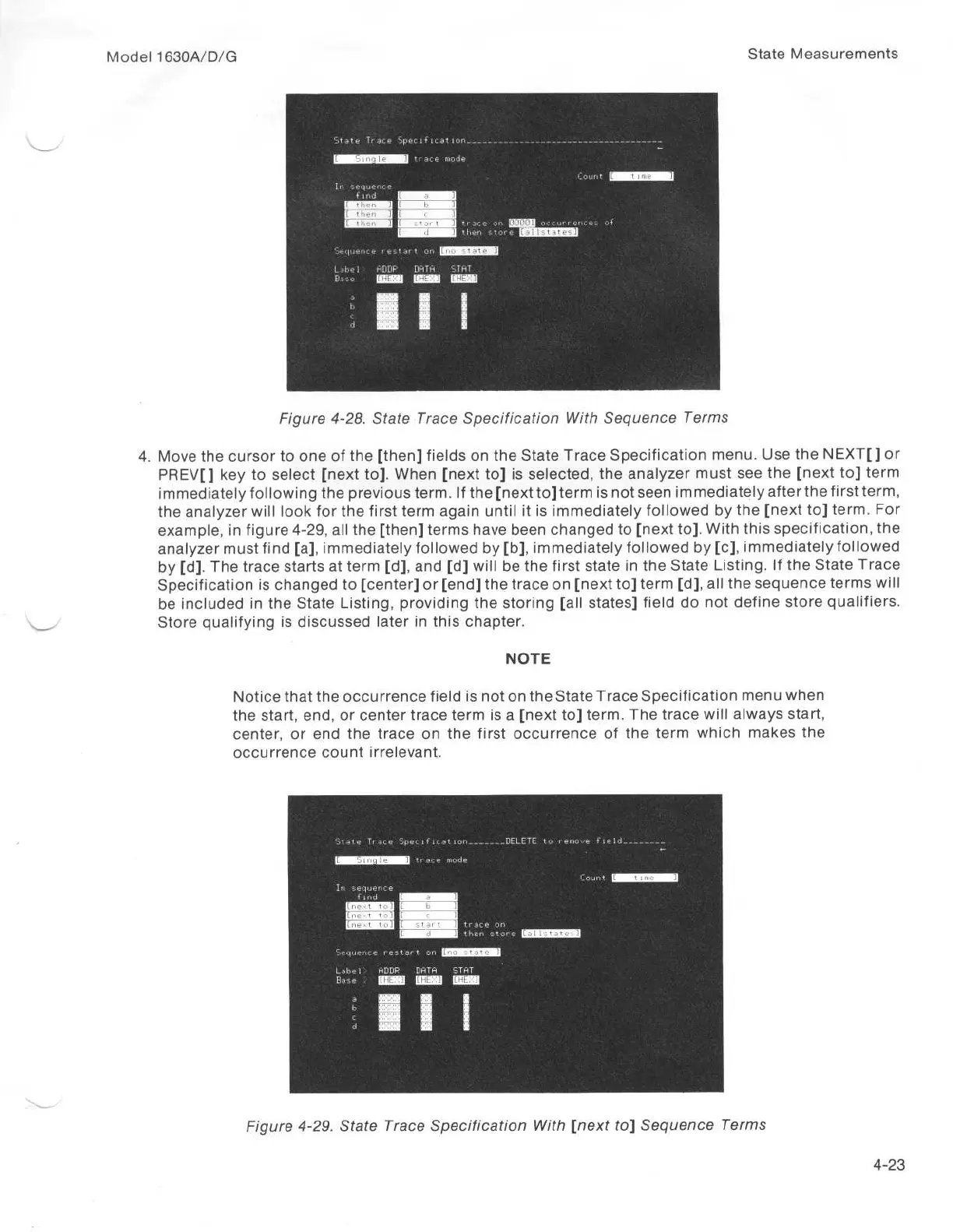

Figure
4-28
.
State
Trace
Specification
With
Sequence
Terms
4
.
Move
the
cursor
to
one
of
the
[then]
fields
on
the
State
Trace
Specification
menu
.
Use
the
NEXT[]
or
PREV[]
key
to
select
[next
to]
.
When
[next
to]
is
selected,
the
analyzer
must
see
the
[next
to]
term
immediately
following
the
previous
term
.
If
the
[next
to]term
is
not
seenimmediately
afterthe
first
term,
the
analyzer
will
look
for
the
first
term
again
until
it
is
immediately
followed
by
the
[next
to]
term
.
For
example,
in
figure
4-29,
all
the
[then]
terms
have
been
changed
to
[next
to]
.
With
this
specification,
the
analyzer
must
find
[a],
immediately
followed
by
[b],
immediately
followed
by
[c],
immediately
followed
by
[d]
.
The
trace
starts
at
term
[d],
and
[d]
will
be
the
first
state
in
the
State
Listing
.
If
the
State
Trace
Specification
is
changed
to
[center]
or
[end]
the
trace
on
[next
to]
term
[d],
all
the
sequence
terms
will
be
included
in
the
State
Listing,
providing
the
storing
[all
states]
field
do
not
define
store
qualifiers
.
Store
qualifying
is
discussed
later
in
this
chapter
.
NOTE
Notice
that
the
occurrence
field
is
not
on
the
State
Trace
Specification
menu
when
the
start,
end,
or
center
trace
term
is
a
[next
to]
term
.
The
trace
will
always
start,
center,
or
end
the
trace
on
the
first
occurrence
of
the
term
which
makes
the
occurrence
count
irrelevant
.
;rate
Trace
Specific
.tlon______-DELETE
to
re--
field________
trace
made
Sequence
restart
.
on
Label,
RDDR
DATA
STAT
Base
>
Count
Figure
4-29
.
State
Trace
Specification
With
[next
to]
Sequence
Terms
4-
2
3
55
57
