Model
1630A/D/G

Using
The
Disc
Memory
Accessory

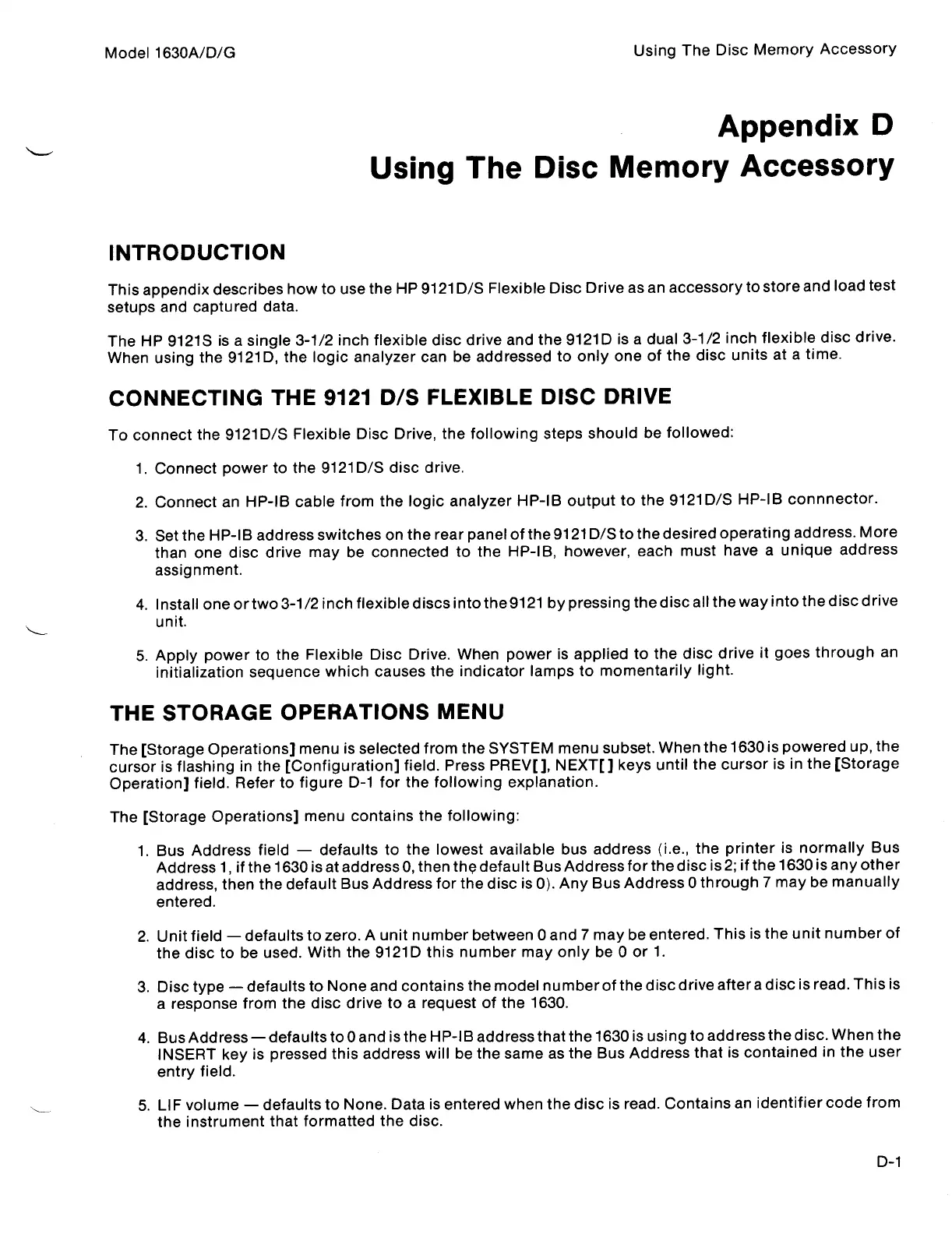

INTRODUCTION
1
.
Connect
power
to
the
9121
D/S
disc
drive
.
Appendix
D
Using
The
Disc
Memory
Accessory
This
appendix
describes
how
to
use
the
HP
9121
D/S
Flexible
Disc
Drive
as
an
accessory
to
store
and
load
test
setups
and
captured
data
.
The
HP
9121S
is
a
single
3-1/2
inch
flexible
disc
drive
and
the
9121D
is
a
dual
3-1/2
inch
flexible
disc
drive
.
When
using
the
9121D,
the
logic
analyzer
can
be
addressed
to
only
one
of
the
disc
units
at
a
time
.
CONNECTING
THE
9121
D/S
FLEXIBLE
DISC
DRIVE
To
connect
the
9121
D/S
Flexible
Disc
Drive,
the
following
steps
should
be
followed
:
2
.
Connect
an
HP-113
cable
from
the
logic
analyzer
HP-113
output
to
the
9121D/S
HP-113
connnector
.
3
.
Set
the
HP-113
address
switches
on
the
rear
panel
of
the
9121
D/S
to
the
desired
operating
address
.
More
than
one
disc
drive
may
be
connected
to
the
HP-113,
however,
each
must
have
a
unique
address
assignment
.
4
.
Install
one
or
two
3-1/2
inch
flexible
discs
into
the
9121
by
pressing
the
disc
all
the
way
into
the
disc
drive
unit
.
5
.
Apply
power
to
the
Flexible
Disc
Drive
.
When
power
is
applied
to
the
disc
drive
it
goes
through
an
initialization
sequence
which
causes
the
indicator
lamps
to
momentarily
light
.
THE
STORAGE
OPERATIONS
MENU
The
[Storage
Operations]
menu
is
selected
from
the
SYSTEM
menu
subset
.
When
the
1630
is
powered
up,
the
cursor
is
flashing
in
the
[Configuration]
field
.
Press
PREV[],
NEXT[]
keys
until
the
cursor
is
in
the
[Storage
Operation]
field
.
Refer
to
figure
D-1
for
the
following
explanation
.
The
[Storage
Operations]
menu
contains
the
following
:
1
.
Bus
Address
field
-
defaults
to
the
lowest
available
bus
address
(i
.e
.,
the
printer
is
normally
Bus
Address
1,
if
the
1630
is
at
address
0,
then
the
default
Bus
Address
for
the
disc
is
2
;
if
the
1630
is
any
other
address,
then
the
default
Bus
Address
for
the
disc
is
0)
.
Any
Bus
Address
0
through
7
may
be
manually
entered
.
2
.
Unit
field
-defaults
to
zero
.
A
unit
number
between
0
and
7
may
be
entered
.
This
is
the
unit
number
of
the
disc
to
be
used
.
With
the
9121D
this
number
may
only
be
0
or
1
.
3
.
Disc
type
-defaults
to
None
and
contains
the
model
number
of
the
disc
drive
after
a
disc
is
read
.
This
is
a
response
from
the
disc
drive
to
a
request
of
the
1630
.
4
.
Bus
Address-defaults
to
0
and
is
the
HP-I
B
address
that
the
1630
is
using
to
address
the
disc
.
When
the
INSERT
key
is
pressed
this
address
will
be
the
same
as
the
Bus
Address
that
is
contained
in
the
user
entry
field
.
5
.
LI
F
volume
-
defaults
to
None
.
Data
is
entered
when
the
disc
is
read
.
Contains
an
identifier
code
from
the
instrument
that
formatted
the
disc
.
148
150
