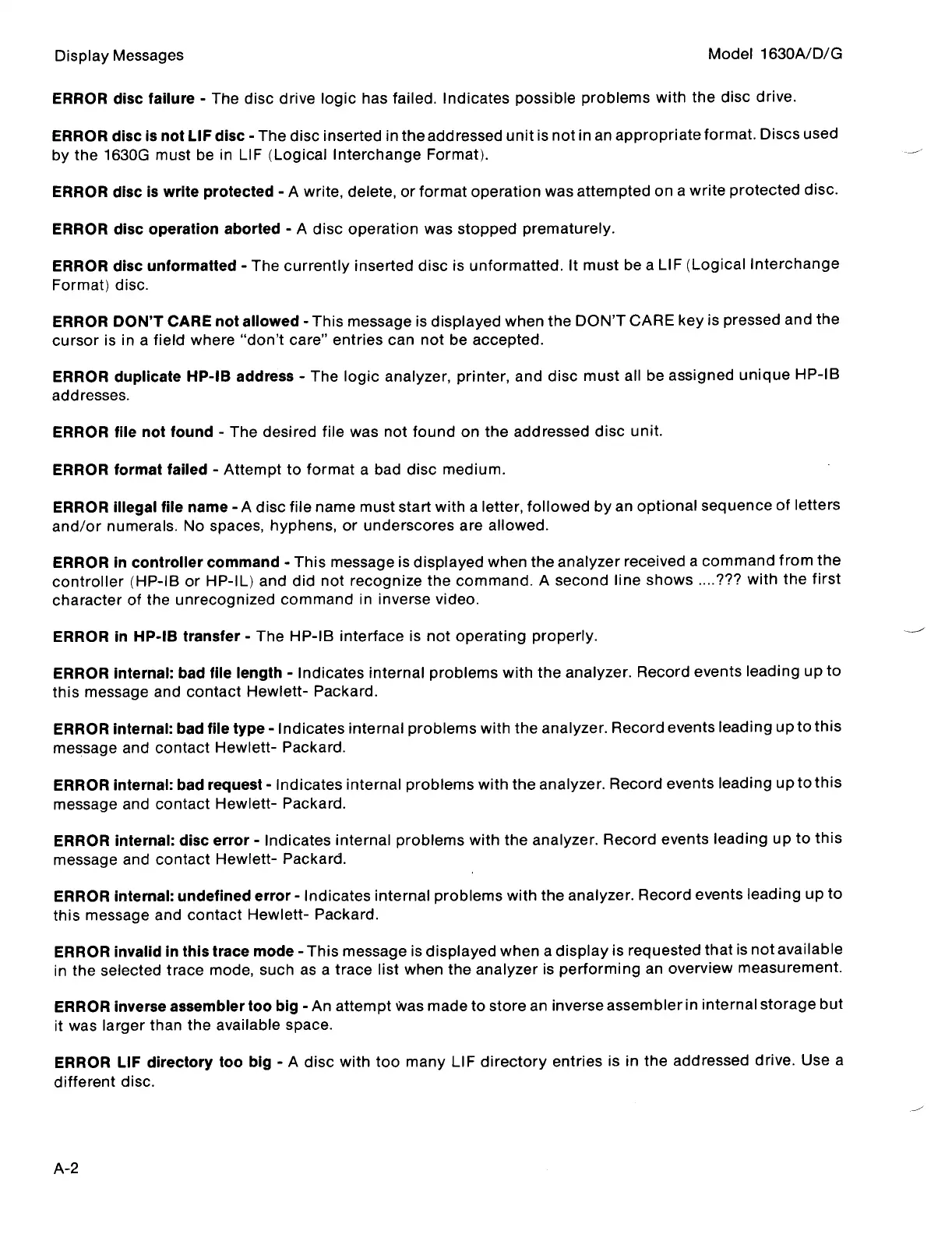

Display
Messages

Model
1630A/D/G
ERROR
disc
failure
-
The
disc
drive
logic
has
failed
.
Indicates
possible
problems
with
the
disc
drive
.
ERROR
disc
is
not
LIF
disc
-The
disc
inserted
in
the
addressed
unit
is
not
in
an
appropriate
format
.
Discs
used
by
the
1630G
must
be
in
LIF
(Logical
Interchange
Format)
.
ERROR
disc
is
write
protected
-
A
write,
delete,
or
format
operation
was
attempted
on
a
write
protected
disc
.
ERROR
disc
operation
aborted
-
A
disc
operation
was
stopped
prematurely
.
ERROR
disc
unformatted
-
The
currently
inserted
disc
is
unformatted
.
It
must
be
a
LIF
(Logical
Interchange
Format)
disc
.
ERROR
DON'T
CARE
not
allowed
-
This
message
is
displayed
when
the
DON'T
CARE
key
is
pressed
and
the
cursor
is
in
a
field
where
"don't
care"
entries
can
not
be
accepted
.
ERROR
duplicate
HP-1119
address
-
The
logic
analyzer,
printer,
and
disc
must
all
be
assigned
unique
HP-IB
addresses
.
ERROR
file
not
found
-
The
desired
file
was
not
found
on
the
addressed
disc
unit
.
ERROR
format
failed
-
Attempt
to
format
a
bad
disc
medium
.
ERROR
illegal
file
name
-A
disc
file
name
must
start
with
a
letter,
followed
by
an
optional
sequence
of
letters
and/or
numerals
.
No
spaces,
hyphens,
or
underscores
are
allowed
.
ERROR
in
controller
command
-
This
message
is
displayed
when
the
analyzer
received
a
command
from
the
controller
(HP-1113
or
HP-IL)
and
did
not
recognize
the
command
.
A
second
line
shows
.
.
.
.???
with
the
first
character
of
the
unrecognized
command
in
inverse
video
.
ERROR
in
HP-119
transfer
-
The
HP-1113
interface
is
not
operating
properly
.
ERROR
internal
:
bad
file
length
-
Indicates
internal
problems
with
the
analyzer
.
Record
events
leading
up
to
this
message
and
contact
Hewlett-
Packard
.
ERROR
internal
:
bad
file
type
-
Indicates
internal
problems
with
the
analyzer
.
Record
events
leading
up
to
this
message
and
contact
Hewlett-
Packard
.
ERROR
internal
:
bad
request
-
Indicates
internal
problems
with
the
analyzer
.
Record
events
leading
up
to
this
message
and
contact
Hewlett-
Packard
.
ERROR
internal
:
disc
error
-
Indicates
internal
problems
with
the
analyzer
.
Record
events
leading
up
to
this
message
and
contact
Hewlett-
Packard
.
ERROR
internal
:
undefined
error-
Indicates
internal
problems
with
the
analyzer
.
Record
events
leading
up
to
this
message
and
contact
Hewlett-
Packard
.
ERROR
invalid
in
this
trace
mode
-This
message
is
displayed
when
a
display
is
requested
that
is
not
available
in
the
selected
trace
mode,
such
as
a
trace
list
when
the
analyzer
is
performing
an
overview
measurement
.
ERROR
inverse
assembler
too
big
-
An
attempt
was
made
to
store
an
inverse
assembler
in
internal
storage
but
it
was
larger
than
the
available
space
.
ERROR
LIF
directory
too
big
-
A
disc
with
too
many
LIF
directory
entries
is
in
the
addressed
drive
.
Use
a
different
disc
.
