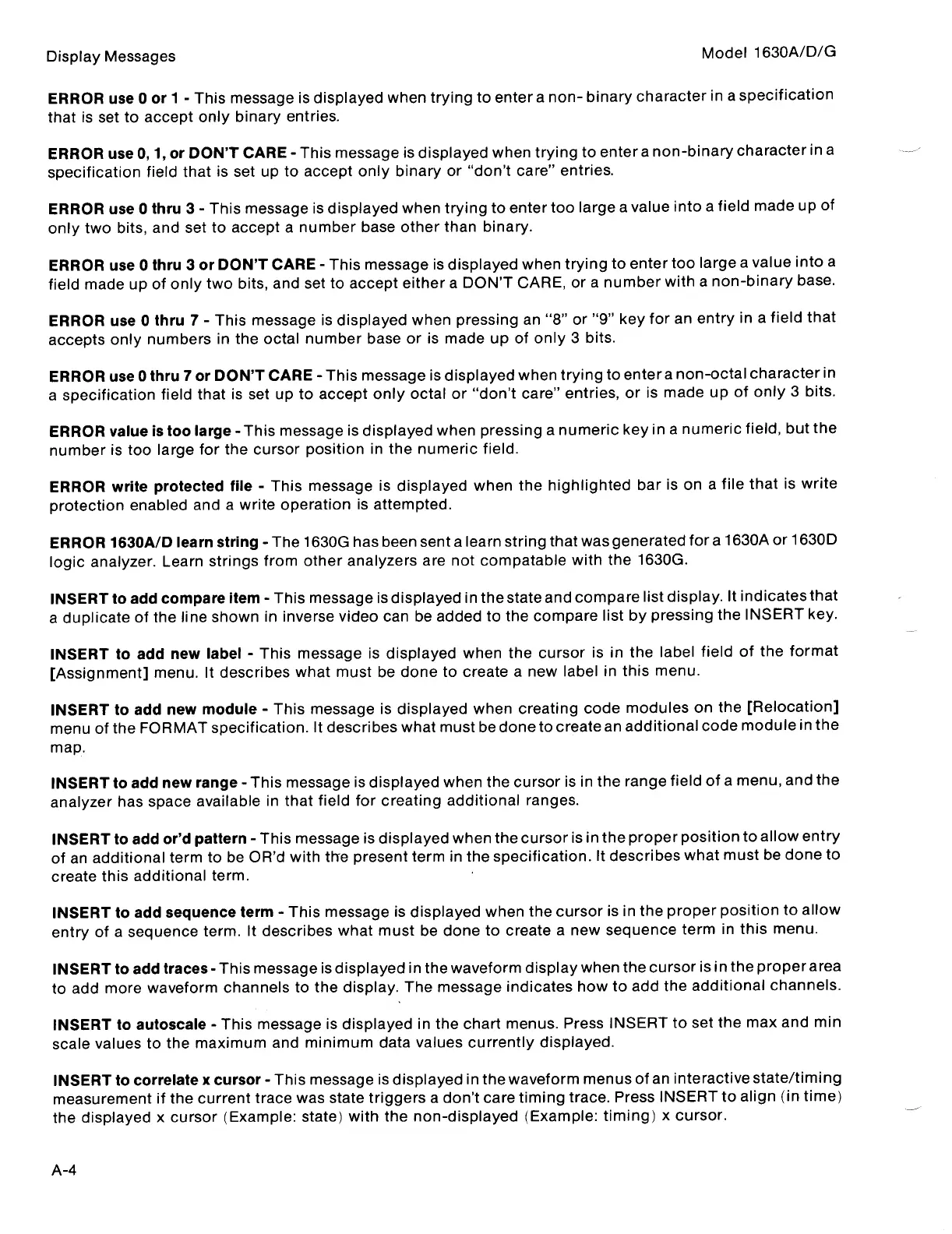

Display
Messages

Model
1630A/D/G
ERROR
use
l)
or
l
-
This
message
is
displayed
when
trying
to
enter
a
non-
binary
character
in
a
specification
that
is
set
to
accept
only
binary
entries
.
ERROR
use
0,
1,
or
DON'T
CARE
-
This
message
is
displayed
when
trying
to
enter
a
non-binary
character
in
a
specification
field
that
is
set
up
to
accept
only
binary
or
"don't
care"
entries
.
ERROR
use
0
thru
3
-
This
message
is
displayed
when
trying
to
enter
too
large
a
value
into
a
field
made
up
of
only
two
bits,
and
set
to
accept
a
number
base
other
than
binary
.
ERROR
use
0
thru
3
or
DON'T
CARE
-
This
message
is
displayed
when
trying
to
enter
too
large
a
value
into
a
field
made
up
of
only
two
bits,
and
set
to
accept
either
a
DON'T
CARE,
or
a
number
with
a
non-binary
base
.
ERROR
use
0
thru
7
-
This
message
is
displayed
when
pressing
an
"8"
or
"9"
key
for
an
entry
in
a
field
that
accepts
only
numbers
in
the
octal
number
base
or
is
made
up
of
only
3
bits
.
ERROR
use
0
thru
7
or
DON'T
CARE
-This
message
is
displayed
when
trying
to
entera
non-octal
character
in
a
specification
field
that
is
set
up
to
accept
only
octal
or
"don't
care"
entries,
or
is
made
up
of
only
3
bits
.
ERROR
value
is
too
large-This
message
is
displayed
when
pressing
a
numeric
key
in
a
numeric
field,
but
the
number
is
too
large
for
the
cursor
position
in
the
numeric
field
.
ERROR
write
protected
file
-
This
message
is
displayed
when
the
highlighted
bar
is
on
a
file
that
is
write
protection
enabled
and
a
write
operation
is
attempted
.
ERROR
1630A/D
learn
string
-The
1630G
has
been
sent
a
learn
string
that
was
generated
for
a
1630A
or
1630D
logic
analyzer
.
Learn
strings
from
other
analyzers
are
not
compatable
with
the
1630G
.
INSERT
to
add
compare
item
-
This
message
is
displayed
in
the
state
and
compare
list
display
.
It
indicates
that
a
duplicate
of
the
line
shown
in
inverse
video
can
be
added
to
the
compare
list
by
pressing
the
INSERT
key
.
INSERT
to
add
new
label
-
This
message
is
displayed
when
the
cursor
is
in
the
label
field
of
the
format
[Assignment]
menu
.
It
describes
what
must
be
done
to
create
a
new
label
in
this
menu
.
INSERT
to
add
new
module
-
This
message
is
displayed
when
creating
code
modules
on
the
[Relocation]
menu
of
the
FORMAT
specification
.
It
describes
what
must
be
done
to
create
an
additional
code
module
in
the
map
.
INSERT
to
add
new
range
-This
message
is
displayed
when
the
cursor
is
in
the
range
field
of
a
menu,
and
the
analyzer
has
space
available
in
that
field
for
creating
additional
ranges
.
INSERT
to
add
or'd
pattern
-
This
message
is
displayed
when
the
cursor
is
in
the
proper
position
to
allow
entry
of
an
additional
term
to
be
OR'd
with
the
present
term
in
the
specification
.
It
describes
what
must
be
done
to
create
this
additional
term
.
INSERT
to
add
sequence
term
-
This
message
is
displayed
when
the
cursor
is
in
the
proper
position
to
allow
entry
of
a
sequence
term
.
It
describes
what
must
be
done
to
create
a
new
sequence
term
in
this
menu
.
INSERT
to
add
traces-This
message
is
displayed
in
the
waveform
display
when
the
cursor
is
in
the
proper
area
to
add
more
waveform
channels
to
the
display
.
The
message
indicates
how
to
add
the
additional
channels
.
INSERT
to
autoscale
-
This
message
is
displayed
in
the
chart
menus
.
Press
INSERT
to
set
the
max
and
min
scale
values
to
the
maximum
and
minimum
data
values
currently
displayed
.
INSERT
to
correlate
x
cursor
-
This
message
is
displayed
in
the
waveform
menus
of
an
interactive
state/timing
measurement
if
the
current
trace
was
state
triggers
a
don't
care
timing
trace
.
Press
INSERT
to
align
(in
time)
the
displayed
x
cursor
(Example
:
state)
with
the
non-displayed
(Example
:
timing)
x
cursor
.
A-4
133
135
