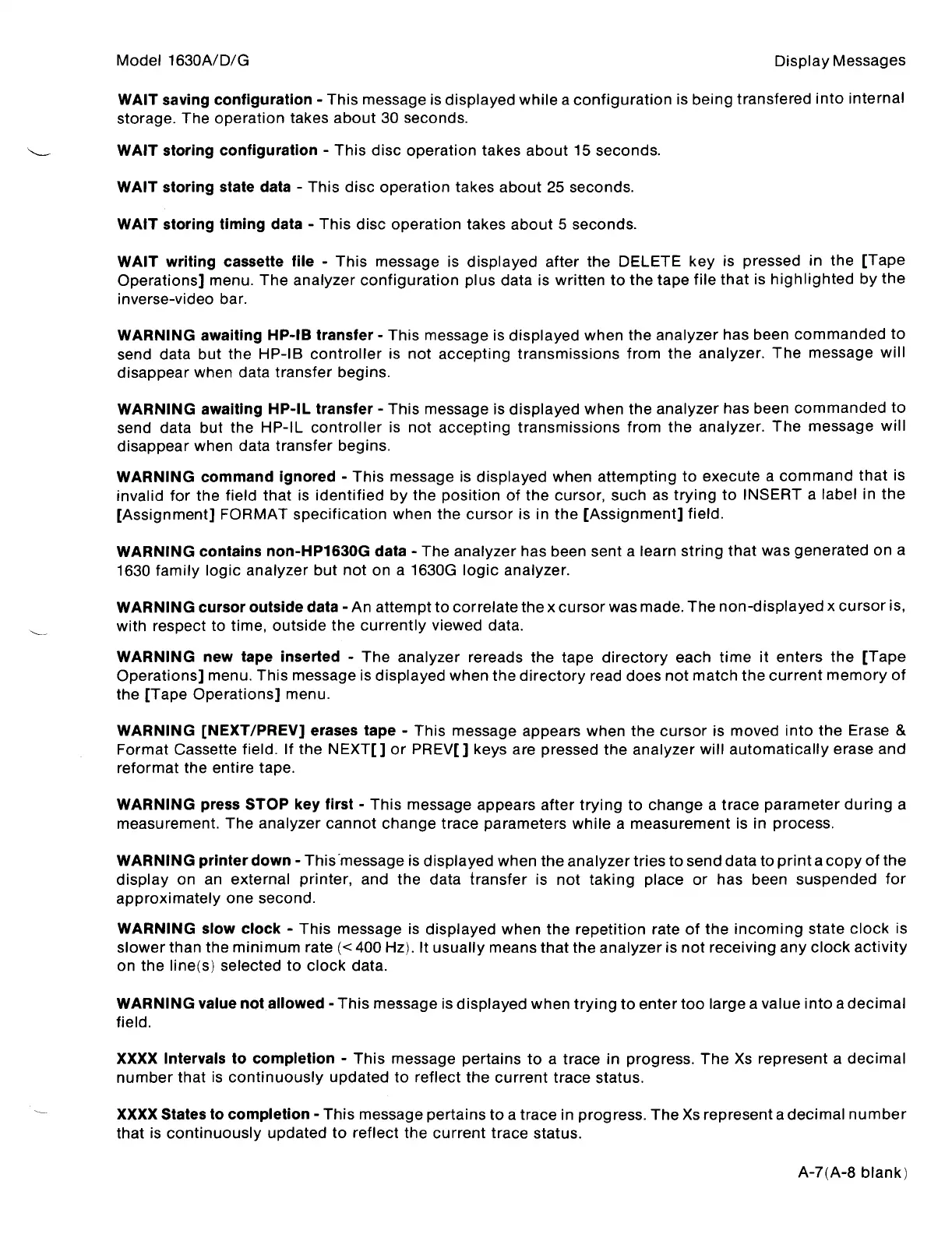

Model
1630A/D/G

Display
Messages
WAIT
saving
configuration
-
This
message
is
displayed
while
a
configuration
is
being
transfered
into
internal
storage
.
The
operation
takes
about
30
seconds
.
WAIT
storing
configuration
-
This
disc
operation
takes
about
15
seconds
.
WAIT
storing
state
data
-
This
disc
operation
takes
about
25
seconds
.
WAIT
storing
timing
data
-
This
disc
operation
takes
about
5
seconds
.
WAIT
writing
cassette
file
-
This
message
is
displayed
after
the
DELETE
key
is
pressed
in
the
[Tape
Operations]
menu
.
The
analyzer
configuration
plus
data
is
written
to
the
tape
file
that
is
highlighted
by
the
inverse-video
bar
.
WARNING
awaiting
HP-1113
transfer-
This
message
is
displayed
when
the
analyzer
has
been
commanded
to
send
data
but
the
HP-IB
controller
is
not
accepting
transmissions
from
the
analyzer
.
The
message
will
disappear
when
data
transfer
begins
.
WARNING
awaiting
HP-IL
transfer
-
This
message
is
displayed
when
the
analyzer
has
been
commanded
to
send
data
but
the
HP-IL
controller
is
not
accepting
transmissions
from
the
analyzer
.
The
message
will
disappear
when
data
transfer
begins
.
WARNING
command
ignored
-
This
message
is
displayed
when
attempting
to
execute
a
command
that
is
invalid
for
the
field
that
is
identified
by
the
position
of
the
cursor,
such
as
trying
to
INSERT
a
label
in
the
[Assignment]
FORMAT
specification
when
the
cursor
is
in
the
[Assignment]
field
.
WARNING
contains
non-HP1630G
data
-
The
analyzer
has
been
sent
a
learn
string
that
was
generated
on
a
1630
family
logic
analyzer
but
not
on
a
1630G
logic
analyzer
.
WARNING
cursor
outside
data
-An
attempt
to
correlate
the
x
cursor
was
made
.
The
non-displayed
x
cursor
is,
with
respect
to
time,
outside
the
currently
viewed
data
.
WARNING
new
tape
inserted
-
The
analyzer
rereads
the
tape
directory
each
time
it
enters
the
[Tape
Operations]
menu
.
This
message
is
displayed
when
the
directory
read
does
not
match
the
current
memory
of
the
[Tape
Operations]
menu
.
WARNING
[NEXT/PREV]
erases
tape
-
This
message
appears
when
the
cursor
is
moved
into
the
Erase
&
Format
Cassette
field
.
If
the
NEXT[]
or
PREV[
]
keys
are
pressed
the
analyzer
will
automatically
erase
and
reformat
the
entire
tape
.
WARNING
press
STOP
key
first
-
This
message
appears
after
trying
to
change
a
trace
parameter
during
a
measurement
.
The
analyzer
cannot
change
trace
parameters
while
a
measurement
is
in
process
.
WARNING
printer
down
-
This'message
is
displayed
when
the
analyzer
tries
to
send
data
to
print
a
copy
of
the
display
on
an
external
printer,
and
the
data
transfer
is
not
taking
place
or
has
been
suspended
for
approximately
one
second
.
WARNING
slow
clock
-
This
message
is
displayed
when
the
repetition
rate
of
the
incoming
state
clock
is
slower
than
the
minimum
rate
(<
400
Hz)
.
It
usually
means
that
the
analyzer
is
not
receiving
any
clock
activity
on
the
line(s)
selected
to
clock
data
.
WARNING
value
not
allowed
-This
message
is
displayed
when
trying
to
enter
too
large
a
value
into
a
decimal
field
.
XXXX
Intervals
to
completion
-
This
message
pertains
to
a
trace
in
progress
.
The
Xs
represent
a
decimal
number
that
is
continuously
updated
to
reflect
the
current
trace
status
.
XXXX
States
to
completion
-
This
message
pertains
to
a
trace
in
progress
.
The
Xs
represent
a
decimal
number
that
is
continuously
updated
to
reflect
the
current
trace
status
.
A-
7(A-8
blank)
