HP 1630D

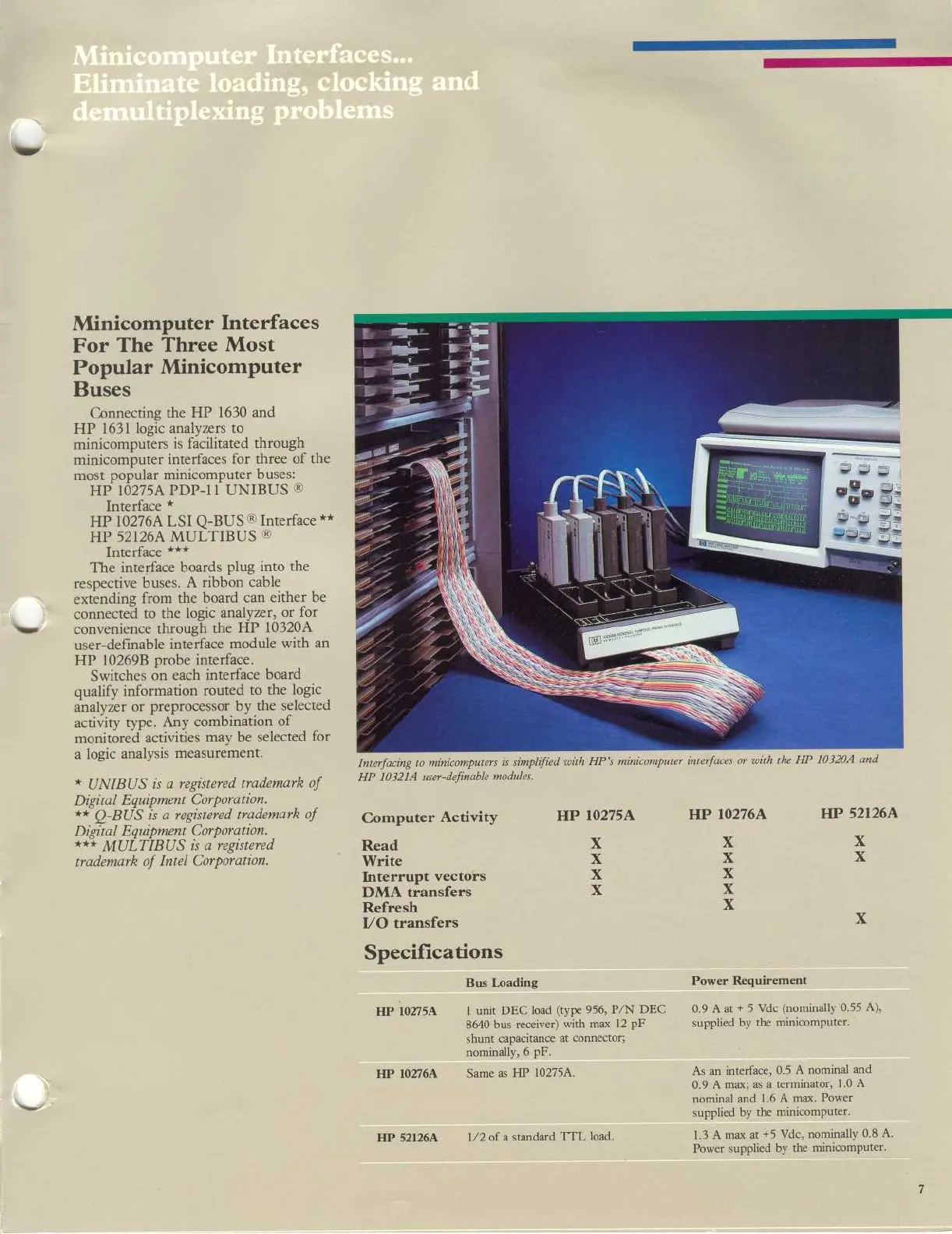

Connecting the HP 1630
and
HP 1631 logic analyzers to
minicomputers is
facilitated through
minicomputer interfaces for
three of the
most popular
minicomputer buses :
HP 10275A PDP-11
UNIBUS
U
Interface
HP 10276A
LSI Q-BUS
C
Interface**
HP 52126A
MULTIBUS
Interface ***
The interface boards plug
into the
respective buses . A ribbon
cable
extending from the
board can either be
connected to
the logic analyzer, or for
convenience
through the HP 10320A
user-definable
interface module with
an
HP
10269B probe interface .
Switches
on each interface board
qualify
information routed to the
logic
analyzer
or preprocessor by the
selected
activity
type . Any combination of
monitored
activities may be selected
for
a logic
analysis measurement
.
Minicomputer
Interfaces
ForThe Three
Most
Popular Minicomputer
Buses
Interf -,ag to
n
, - mpz ,
rs is simplified with HI's ~~
A
dibld
HP 10321user-efnae
moues .
the H1' 10320'A
and
Specifications
* UNIBUS is a registered
trademark of
Digital Equipment Corporation .
** Q-BUS is a registered
trademark of
Computer Activity HP
10275A HP 10276A
HP 52126A
Digital Equipment
Corporation .
*** MULTIBUS
is a registered Read
X
X X
trademark
of Intel Corporation . Write
X
X X
Interrupt vectors
X X
DMA
transfers
X X
Refresh X
1/O transfers X
Bus Loading
Power
Requirement
HP
10275A 1 unit DEC load
(type 956, P/N DEC 0 .9 A
at + 5 Vdc (nominally 0 .55
A),
8640 bus receiver)
with max 12 pF supplied
by the minicomputer .
shunt
capacitance at connector ;
nominally, 6 pF .
HP 10276A Same as HP
10275A . As an
interface, 0 .5 A nominal
and
0 .9 A max ; as a terminator,
1 .0 A
nominal and 1 .6 A max .
Power
supplied by the
minicomputer .
HP 52126A 1/2 of a standard TTL
load . 1 .3 A
max at +5 Vdc, nominally
0 .8 A .
Power supplied by the
minicomputer .
