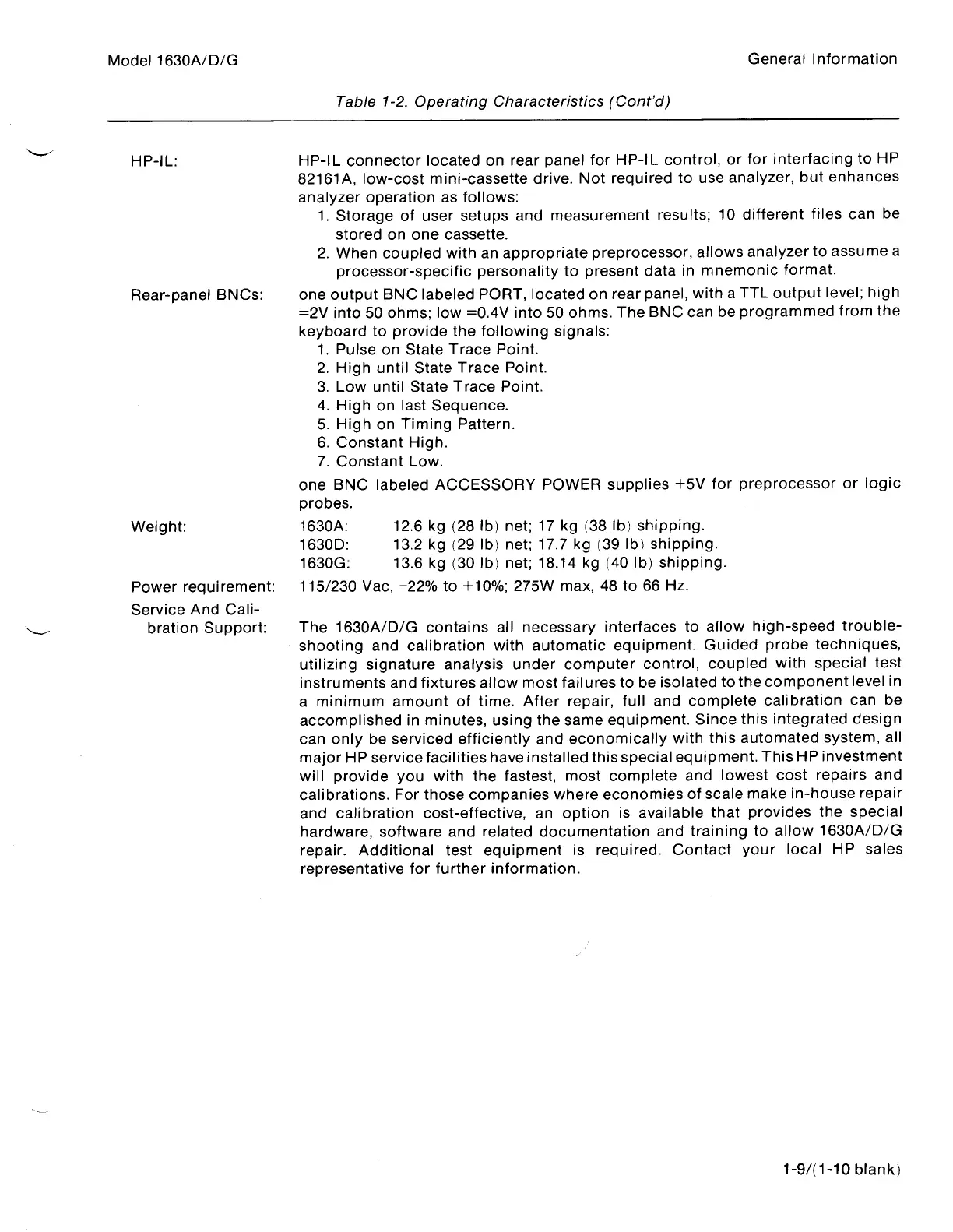

Model
1630A/D/G

General
Information
Table
1-2
.
Operating
Characteristics
(Cont'd)
HP-IL
:

HP-IL
connector
located
on
rear
panel
for
HP-IL
control,
or
for
interfacing
to
HP
82161A,
low-cost
mini-cassette
drive
.
Not
required
to
use
analyzer,
but
enhances
analyzer
operation
as
follows
:
1
.
Storage
of
user
setups
and
measurement
results
;
10
different
files
can
be
stored
on
one
cassette
.
2
.
When
coupled
with
an
appropriate
preprocessor,
allows
analyzer
to
assume
a
processor-specific
personality
to
present
data
in
mnemonic
format
.
Rear-panel
BNCs
:

one
output
BNC
labeled
PORT,
located
on
rear
panel,
with
a
TTL
output
level
;
high
=2V
into
50
ohms
;
low
=0
.4V
into
50
ohms
.
The
BNC
can
be
programmed
from
the
keyboard
to
provide
the
following
signals
:
1
.
Pulse
on
State
Trace
Point
.
2
.
High
until
State
Trace
Point
.
3
.
Low
until
State
Trace
Point
.
4
.
High
on
last
Sequence
.
5
.
High
on
Timing
Pattern
.
6
.
Constant
High
.
7
.
Constant
Low
.
one
BNC
labeled
ACCESSORY
POWER
supplies
+5V
for
preprocessor
or
logic
probes
.
Weight
:

1630A
:

12
.6
kg
(28
lb)
net
;
17
kg
(38
lb)
shipping
.
1630D
:

13
.2
kg
(29
lb)
net
;
17
.7
kg
(39
lb)
shipping
.
1630G
:

13
.6
kg
(30
lb)
net
;
18
.14
kg
(40
lb)
shipping
.
Power
requirement
:

115/230
Vac,
-22%
to
+10%
;
275W
max,
48
to
66
Hz
.
Service
And
Cali-
bration
Support
:

The
1630A/D/G
contains
all
necessary
interfaces
to
allow
high-speed
trouble-
shooting
and
calibration
with
automatic
equipment
.
Guided
probe
techniques,
utilizing
signature
analysis
under
computer
control,
coupled
with
special
test
instruments
and
fixtures
allow
most
failures
to
be
isolated
to
the
component
level
in
a
minimum
amount
of
time
.
After
repair,
full
and
complete
calibration
can
be
accomplished
in
minutes,
using
the
same
equipment
.
Since
this
integrated
design
can
only
be
serviced
efficiently
and
economically
with
this
automated
system,
all
major
HP
service
facilities
have
installed
this
special
equipment
.
This
HP
investment
will
provide
you
with
the
fastest,
most
complete
and
lowest
cost
repairs
and
calibrations
.
For
those
companies
where
economies
of
scale
make
in-house
repair
and
calibration
cost-effective,
an
option
is
available
that
provides
the
special
hardware,
software
and
related
documentation
and
training
to
allow
1630A/D/G
repair
.
Additional
test
equipment
is
required
.
Contact
your
local
HP
sales
representative
for
further
information
.
1-9/(1-10
blank)
19
21
