b. Remove the display panel cable (2).
The display panel cable is available using the following spare part numbers:
L22519-001: HD, non-touch display
L22520-001: FHD, non-touch display
L22521-001: HD, touch display
8. If it is necessary to replace the wireless antenna cables and transceivers:
a. Release the wireless antenna cables from the retention clips and routing channel built into the
sides of the display enclosure (1).
b. Release the antenna from the display enclosure (2).
Antennas are available using spare part number L22498-001 for single antenna models and
L22497-001 for dual antenna models.

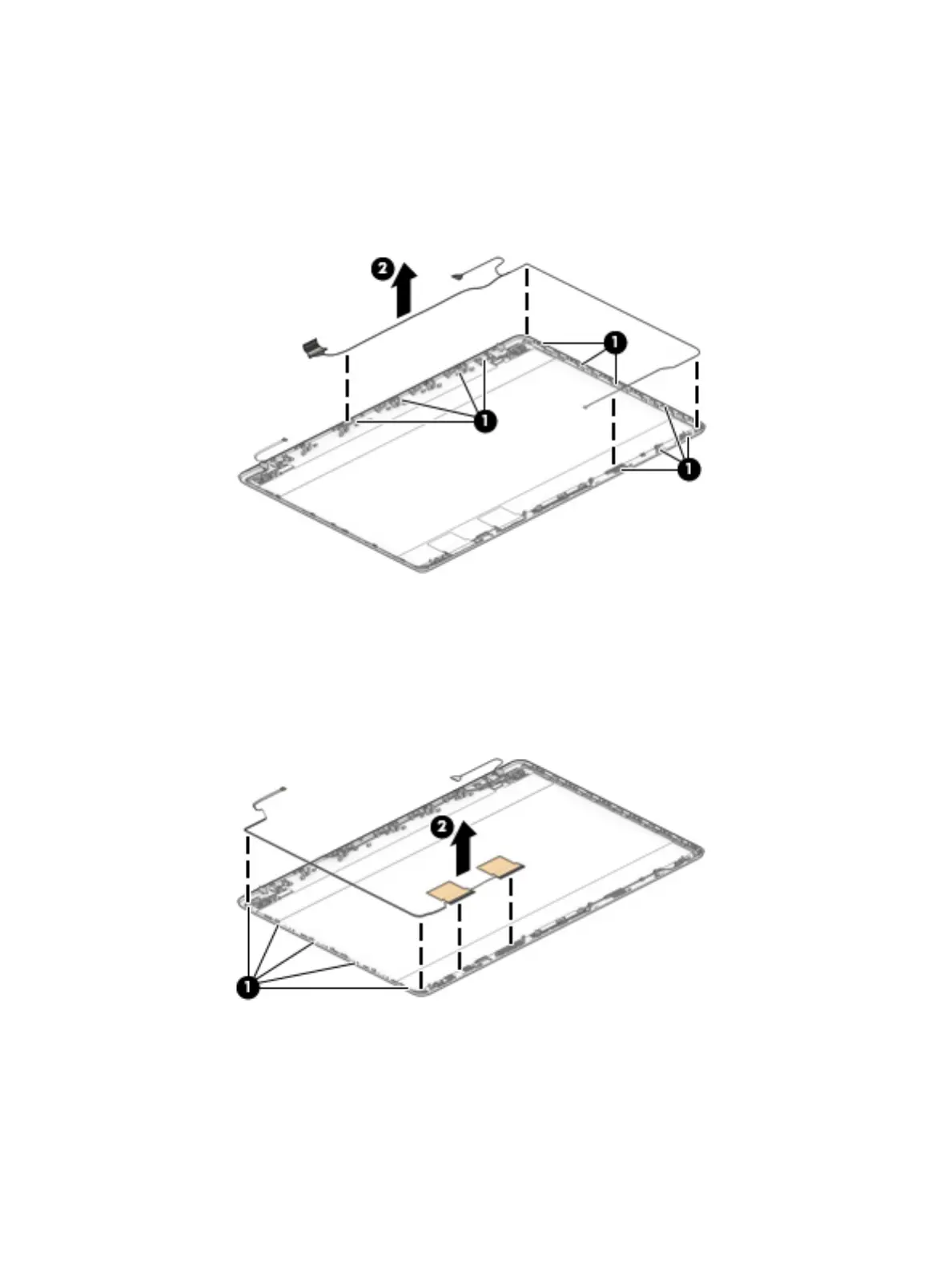

Use the following image to determine proper cable routing in the display of the antenna cable (1) and display
cable (2).
Component replacement procedures 73
