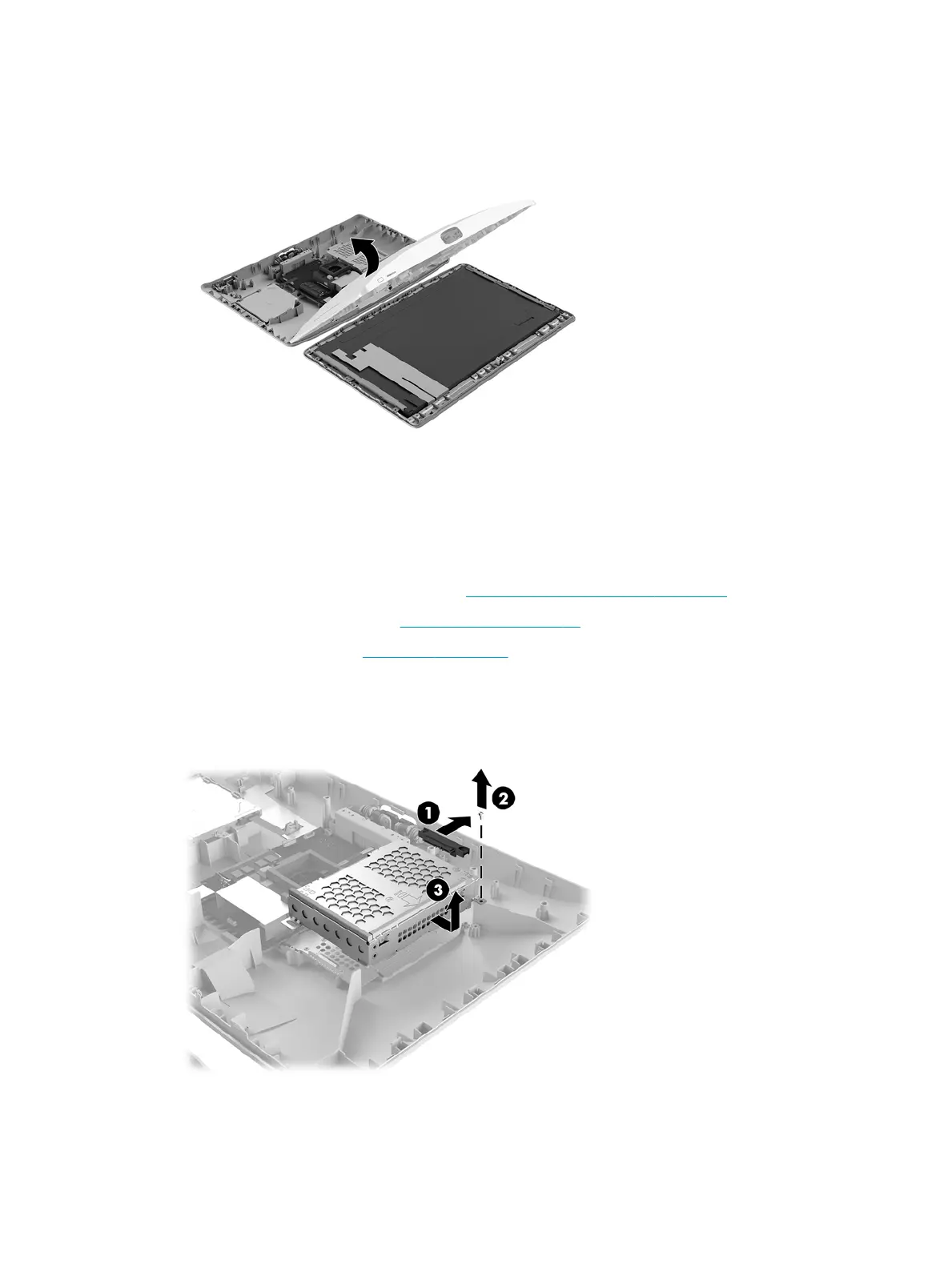

5. Remove the rear cover by detaching the bottom edge of the cover from the display assembly, and then
swinging the bottom edge up and back until the rear cover rests upside down behind
the display assembly.
Reverse this procedure to install the rear cover.
Hard drive
1. Prepare the computer for disassembly (see Preparation for disassembly on page 13).
2. Remove the stand assembly (see Stand assembly on page 14).
3. Remove the rear cover (see Rear cover on page 15).
4. Disconnect the hard drive cable (1) from the hard drive.
5. Remove the slotted Torx screw (2) that secures the hard drive cage to the rear cover.
6. Remove the hard drive cage (3).
7. Remove the four Phillips screws (1) that secure the hard drive to the hard drive cage.
16 Chapter 4 Removal and replacement procedures
