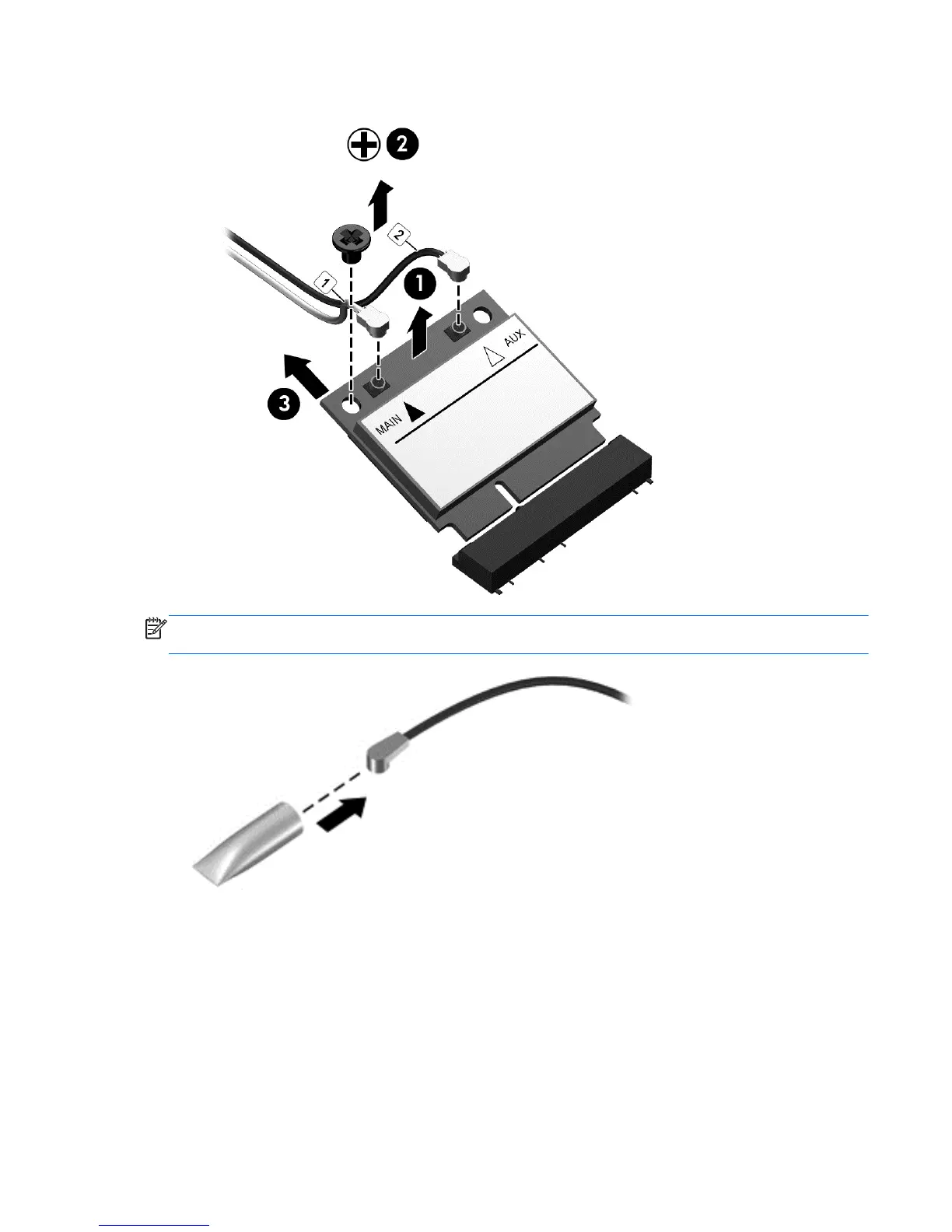

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: If the WLAN antenna cables are not connected to the terminals on the WLAN module, the

protective sleeves must be installed on the antenna connectors, as shown in the following illustration.

Reverse this procedure to install the WLAN module.

Component replacement procedures 45
