Monitor connector board
Description Spare part number
Monitor connector board (includes cable) 730901-001
Before removing the monitor connector board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 40), and then remove the following components:
a. Service door (see
Service door on page 41)
b. Display assembly (see
Display assembly on page 53)
c. Bottom cover (see
Bottom cover on page 61)

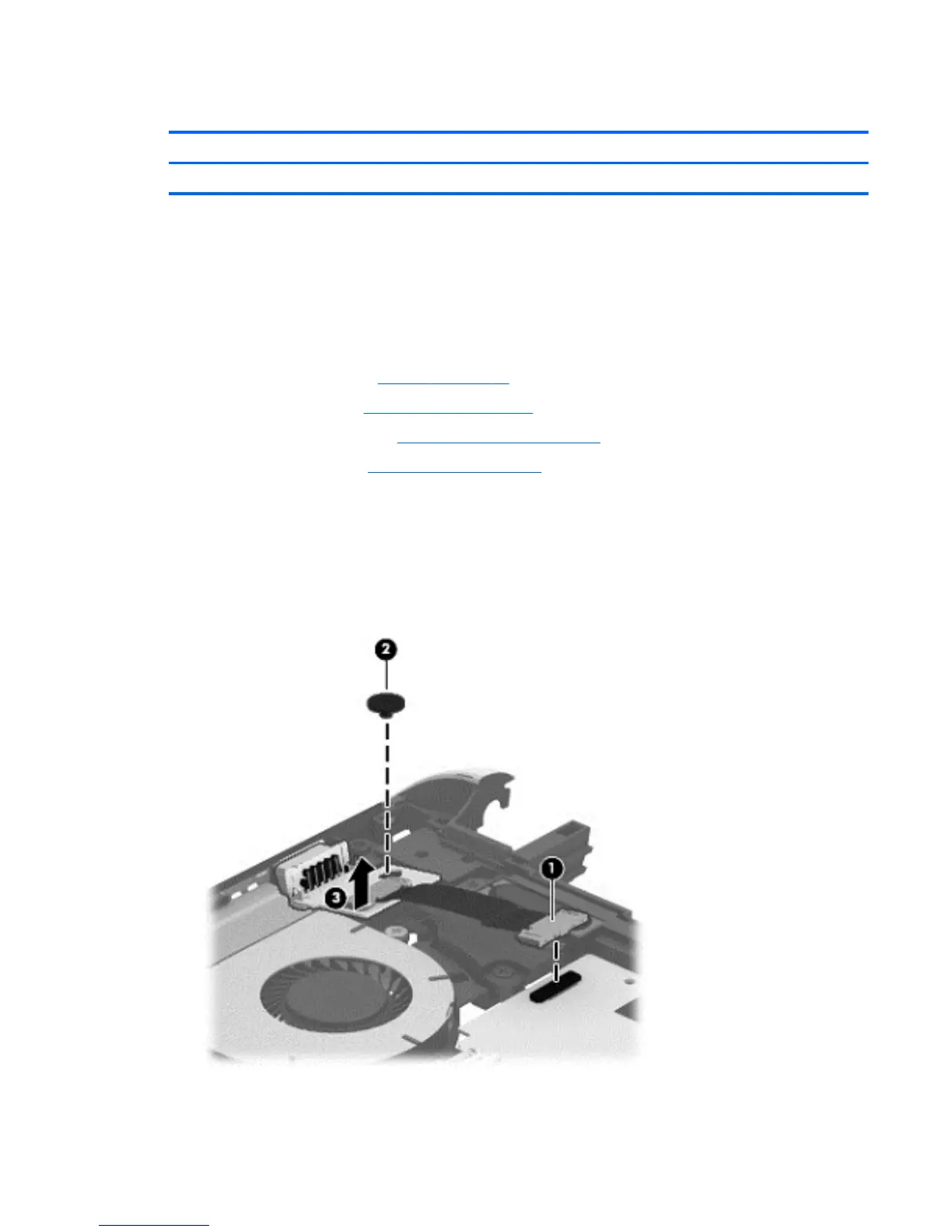

Remove the monitor connector board:
1. Disconnect the monitor connector board cable (1) from the system board.
2. Remove the Phillips PM2.0×2.25 broad head screw (2) that secures the monitor connector
board to the top cover.
3. Remove the monitor connector board (3) and cable.
Reverse this procedure to install the monitor connector board.
Component replacement procedures 69
