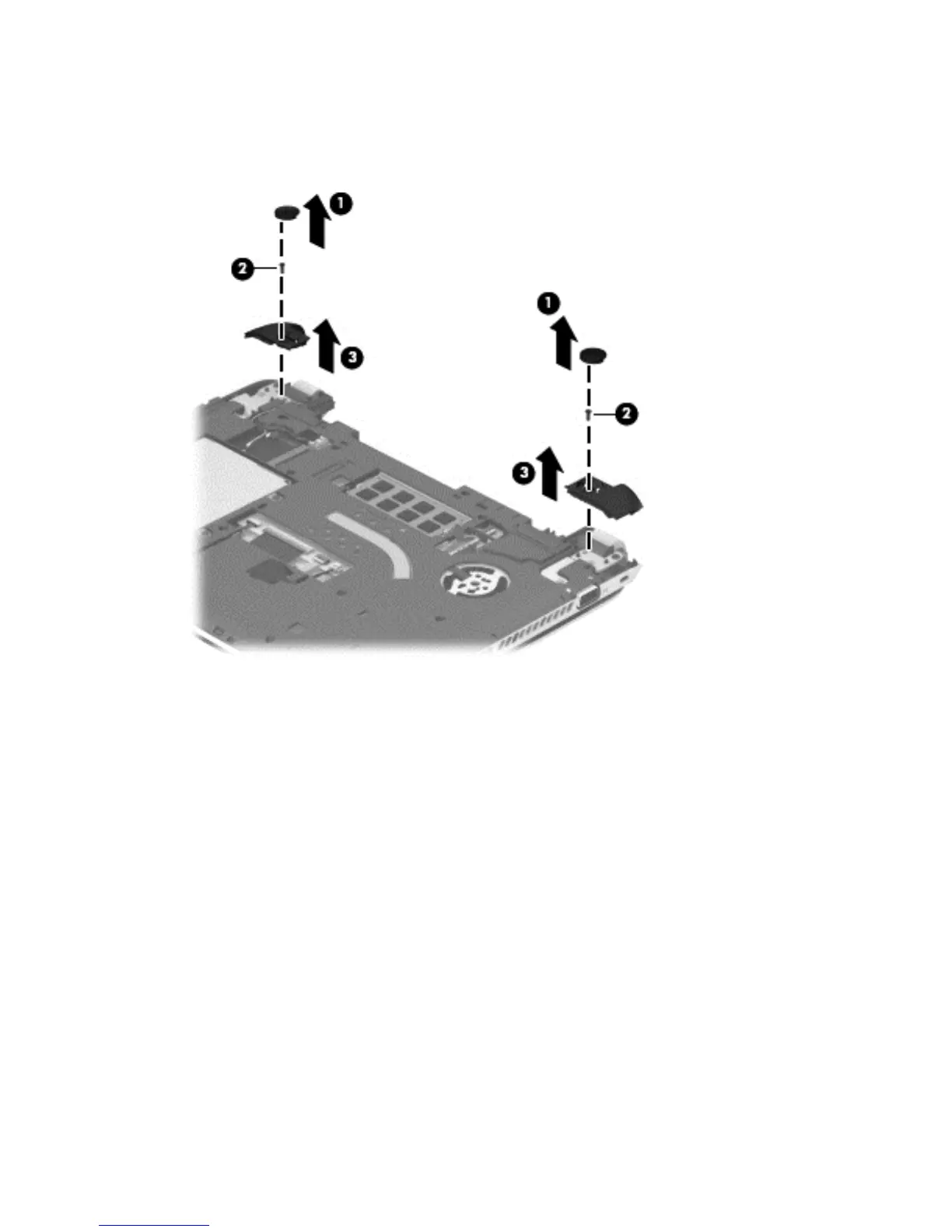

3. Remove the left and right rear corner covers (3).
The rear corner covers are included in the bottom cover spare part kit, spare part number
730887-001 for touchscreen models, and spare part number 747750-001 for non-touchscreen
computer models.
4. Disconnect the wireless antenna cables (1) from the WLAN module.
5. Release the wireless antenna cables from the retention clips (2) and routing channel built into
the bottom cover.
6. Disconnect the display panel cable (3) from the system board.
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
