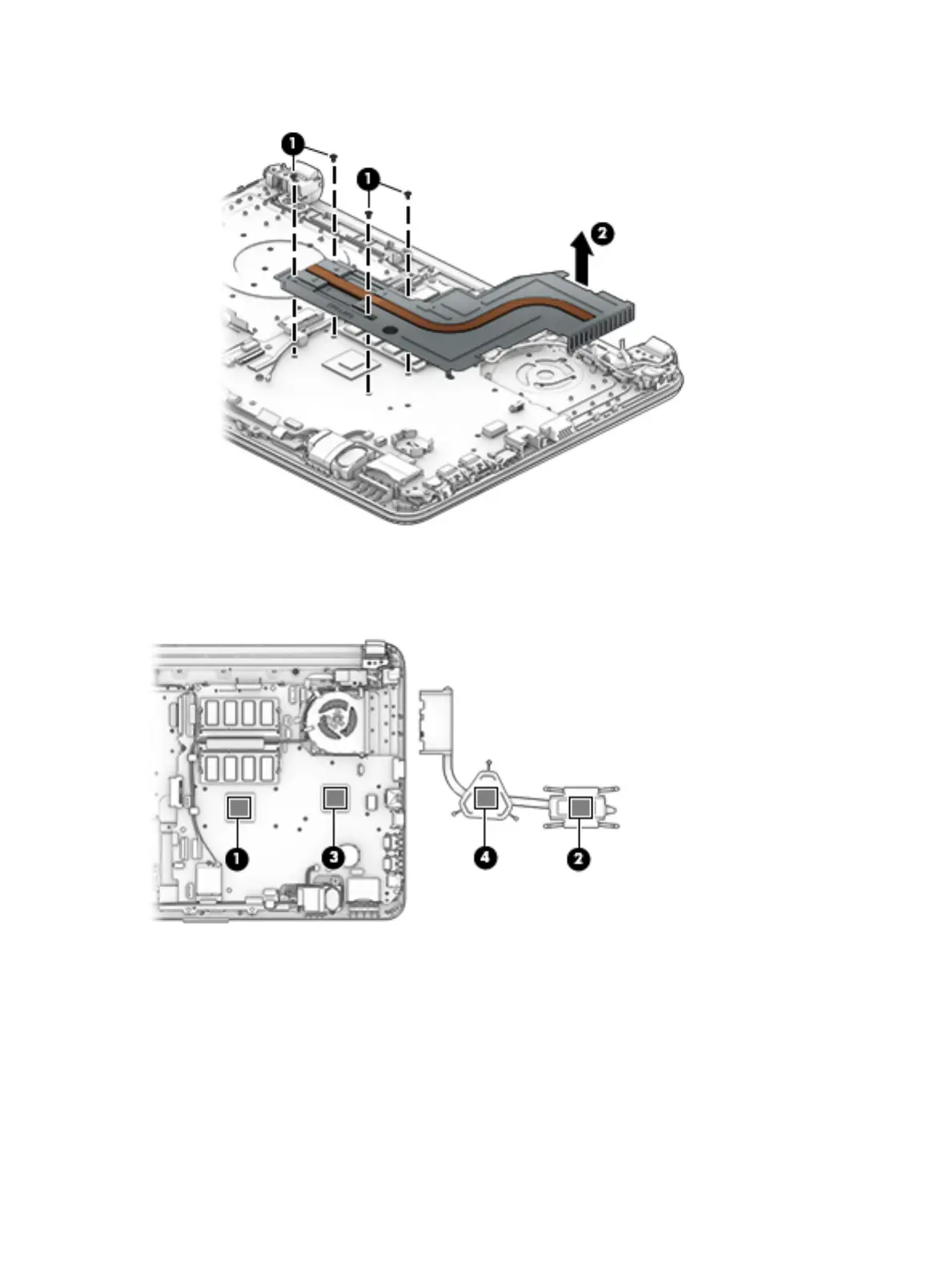

UMA graphics (Intel Pentium and Celeron processors):
Thermal material locations:
●
Discrete graphics: Thermal paste is used on the processor and associated heat sink area (1)(2), as well
as the graphics chip and associated heat sink area (3)(4).
●
UMA graphics (Intel Core processors): Thermal paste is used on the heat sink (1) and the processor (2).
52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
