mSATA drive
Description Spare part number
32-GB mSATA drive 728857-001
Before removing the mSATA drive, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 33).
5. Remove the hard drive service cover (see
Hard drive on page 34).
Remove the mSATA drive:

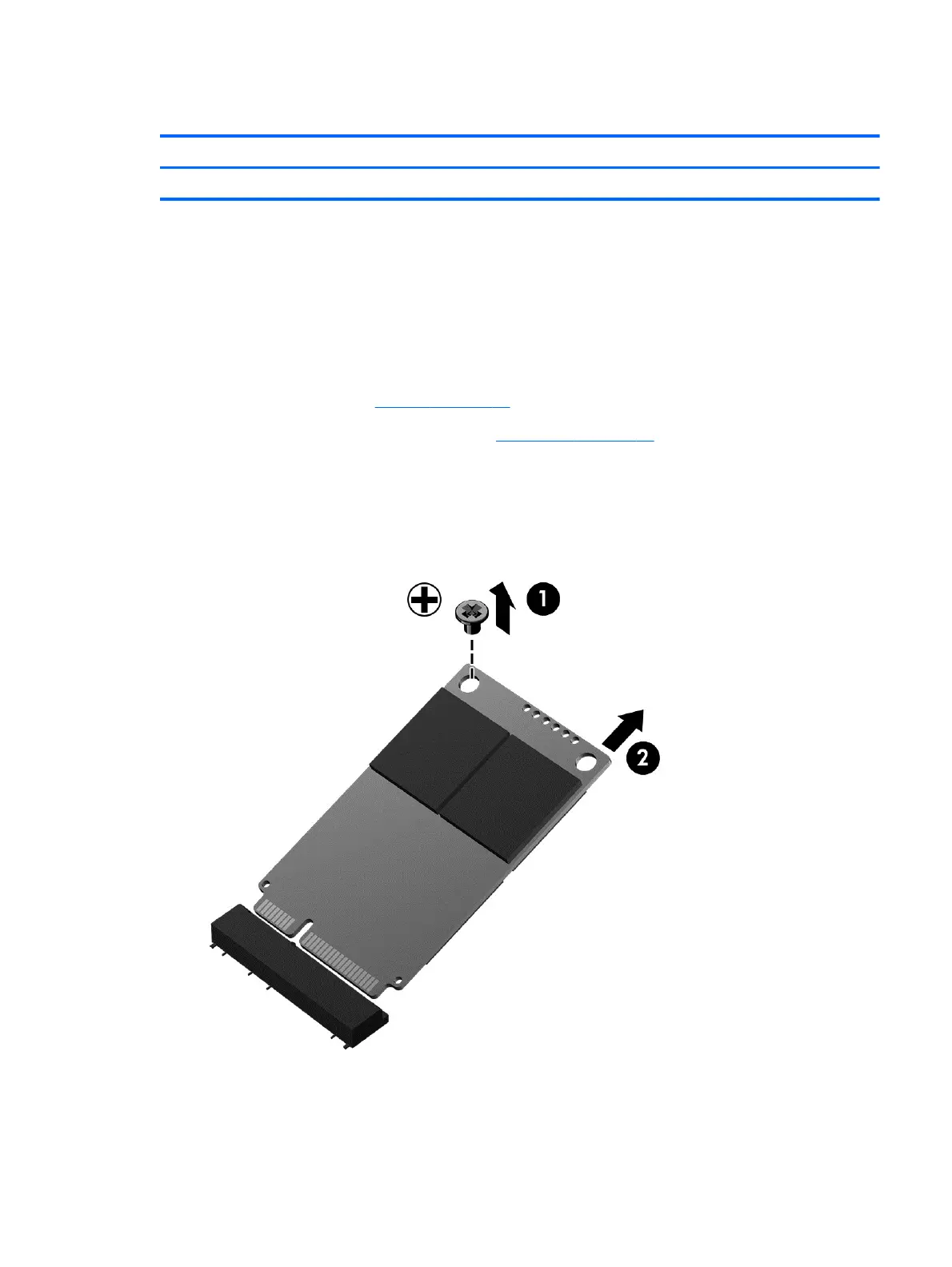

1. Remove the Phillips PM2.0×2.0 screw (1) that secures the mSATA drive to the system board.
(The mSATA drive tilts up.)
2. Remove the mSATA drive (2) by pulling the module away from the slot at an angle.
Reverse this procedure to install the mSATA drive.
Component replacement procedures 39
